60 Chapter 3

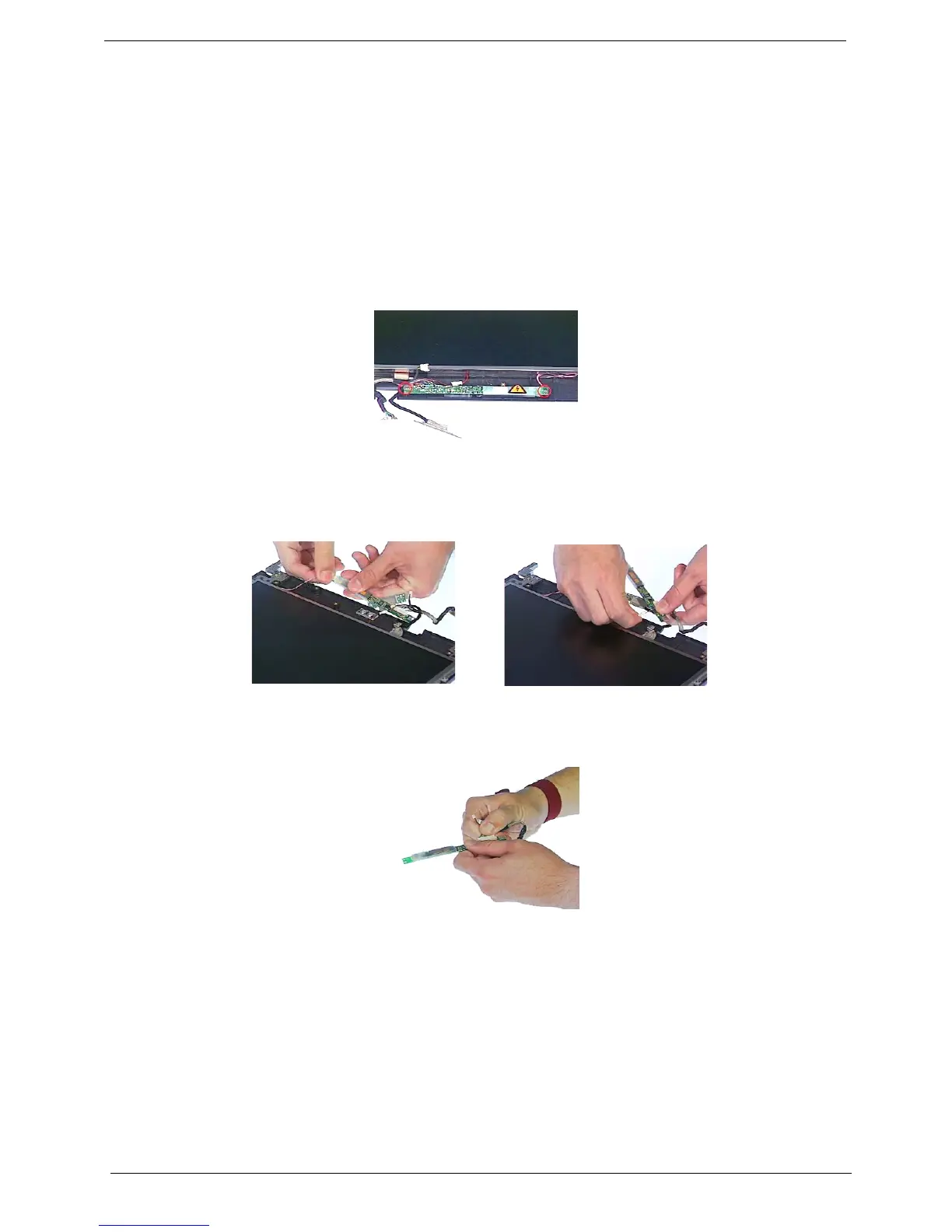

Removing the Inverter Board
1.
See “Removing the Hinge Cap” on page 55
2.
See “Removing the Middle Cover” on page 55
3.
See “Removing the Keyboard” on page 56
4.
See “Removing the Cable Cover” on page 56
5.
See “Removing the 12.1” TFT LCD Module” on page 57
6.
See “Removing the LCD Bezel” on page 58
7.
To remove the inverter board, first remove two screws from the inverter board.
8.
Disconnect the microphone cable and LCD cable from the inverter board then remove the inverter board.
9.
Disconnect the the inverter cable from the inverter board.
Removing the LCD
1.
See “Removing the Hinge Cap” on page 55
2.
See “Removing the Middle Cover” on page 55
3.
See “Removing the Keyboard” on page 56
4.
See “Removing the Cable Cover” on page 56
5.
See “Removing the 12.1” TFT LCD Module” on page 57
6.
See “Removing the LCD Bezel” on page 58
