Agilent Technologies U3402A User's And Service Guide

2 Operations and Features
26 U3402A User’s and Service Guide
Performing Resistance Measurements
Measuring resistance
1 Press . The default function is 2- wire W measurement.
2 Connect the red and black test leads to the input terminal as shown in
Figure 2- 6 or Figure 2- 7 respectively (according to the selected
measurement method).
3 Probe the test points (by shunting the resistor) and read the display.
In autoranging mode, the multimeter automatically selects the appropriate
range and the measurement is displayed.

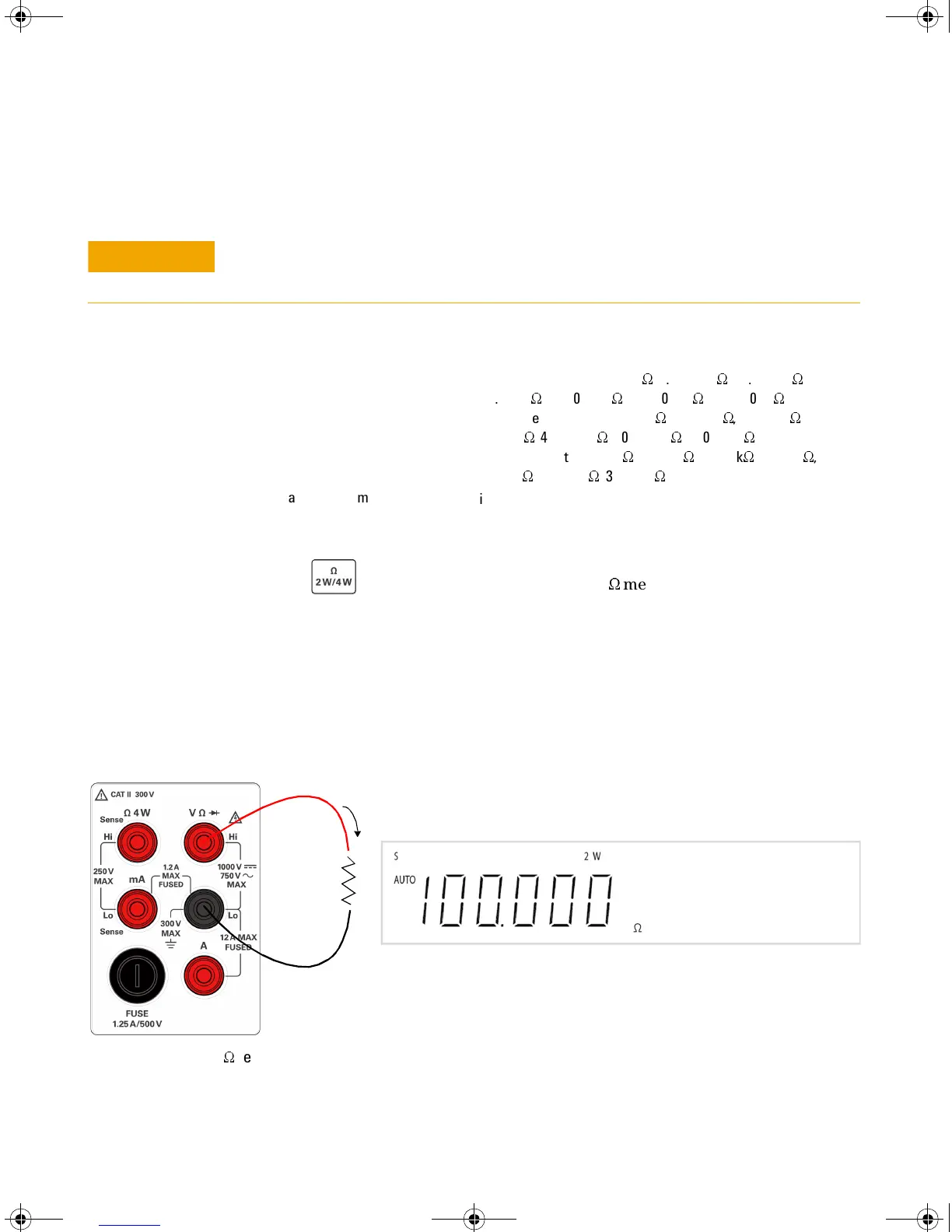

Figure 2-6 2-wire
W terminal connection and display
CAUTION
Disconnect circuit power and discharge all high-voltage capacitors before measuring
resistance to avoid damaging the multimeter or the device under test.
• Seven ranges: • Slow reading rate: 120 .000 W , 1.20000 k W , 12.0000 k W ,
120.000 k
W , 1.20000 M W , 12.0000 M W , 120.000 M W
• Medium reading rate: 400 .00 W , 4.0000 k W , 40.000 k W ,
400.00 k
W , 4.0000 M W , 40.000 M W , 300.00 M W
• Fast reading rate: 400 .0 W , 4.000 k W , 40.00 k W , 400.0 k W ,
4.000 M
W , 40.00 M W , 300.0 M W
• Measurement method:
2-wire ohms or 4-wire ohms, open circuit voltage limited to < 5 V
• Input protection:
500 V on all ranges
Resistance
+
–
Test current
U3402-90001.book Page 26 Friday, July 24, 2009 4:04 PM
