Measurement Tutorial 3

U3402A User’s and Service Guide 59

Measure Resistance Using 4-Wire Mode

1 Connect the red and black test leads to the resistor and probe the test points

as shown in Figure 3- 6.

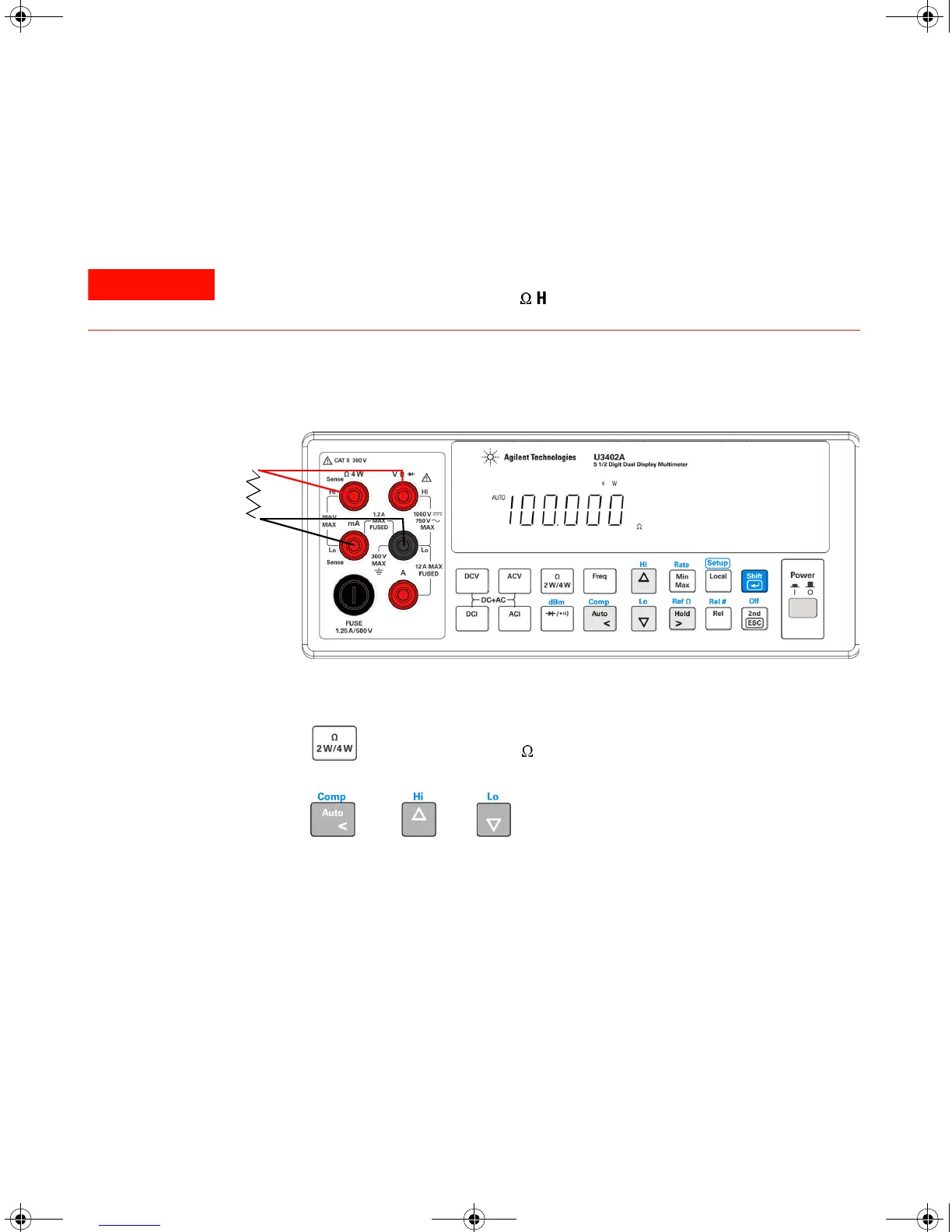

Figure 3-6 Terminal connection when measuring resistance using 4-wire mode

2 Press to select the 4- wire

measurement for primary display. The

4W is displayed.

3 Press . Use

and to select autoranging or manual ranging for

primary display.

WARNING

Do not apply voltage exceeding 250 V PEAK between Sense Hi and Sense Lo

terminals, and 500 V PEAK between V.

.Hz and Lo input terminals.

–

Resistance

U3402-90001.book Page 59 Friday, July 24, 2009 4:04 PM
