Agilent Technologies U3402A User's And Service Guide

Disassembly and Repair 5
U3402A User’s and Service Guide 79
To Replace the Power Line Fuse
The power line fuse is located within the multimeter’s fuse- holder assembly
on the rear panel. The multimeter is shipped from the factory with a
power- line fuse installed (according to country of destination). See Table 5- 1.
If you determine that the fuse is faulty, replace it with one of the same size and
rating.
Ta b l e 5- 1 Type of supplied fuse (according to country of destination)
Type of fuse (time-lag, low breaking fuse) Input line voltage Part number
0.25A, 250V, 5x20 mm 100 V to 120 V
A02-62-25592-3U
0.125A, 250V, 5x20 mm 220 V to 240 V
A02-62-25648-1U

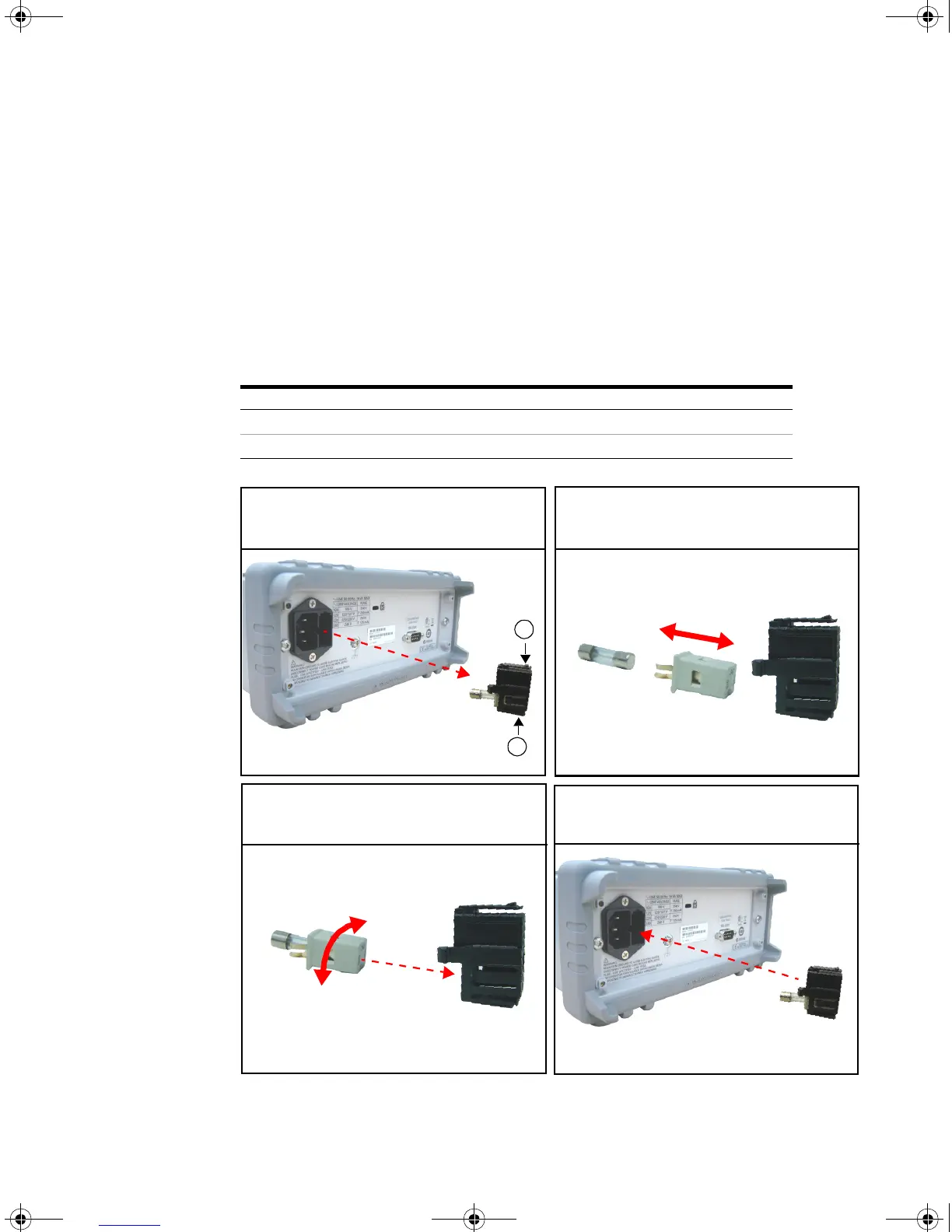

1 Disconnect the power cord. Depress tab 1 and
2 and pull the fuse holder from rear panel.
2 Remove the line voltage selector from fuse
holder assembly.
3 Rotate the line voltage selector and reinstall
it back, so that the correct voltage appears in
the fuse holder window.
4 Replace fuse holder assembly in rear panel.
1
2
100, 120, 220 (230), or 240 Vac
