44 PowerFlex® 700S Drives - Phase I Control (Frame Sizes 9 & 10)
Step 10: Performing
Assisted Start
This routine prompts you for information that is needed to start-up a drive for most
applications, such as line and motor data, commonly adjusted parameters and I/O.
Important: This start-up routine requires a HIM. If the drive is configured for
2-wire control, the HIM installed on the drive will also act as a 2-wire
device. In 2-wire mode, the drive will start when the HIM “Start” is
pressed and stop when the HIM “Start” is released. The recommended
mode of use for a Start-Up Routine is 3-wire control, Parameter 153
[Control Options], Bit 8 set to “1”.
The assisted start-up routine asks simple yes or no questions and prompts you to
input required information. Access Assisted Start-Up by selecting “Start-Up” from
the Main Menu.

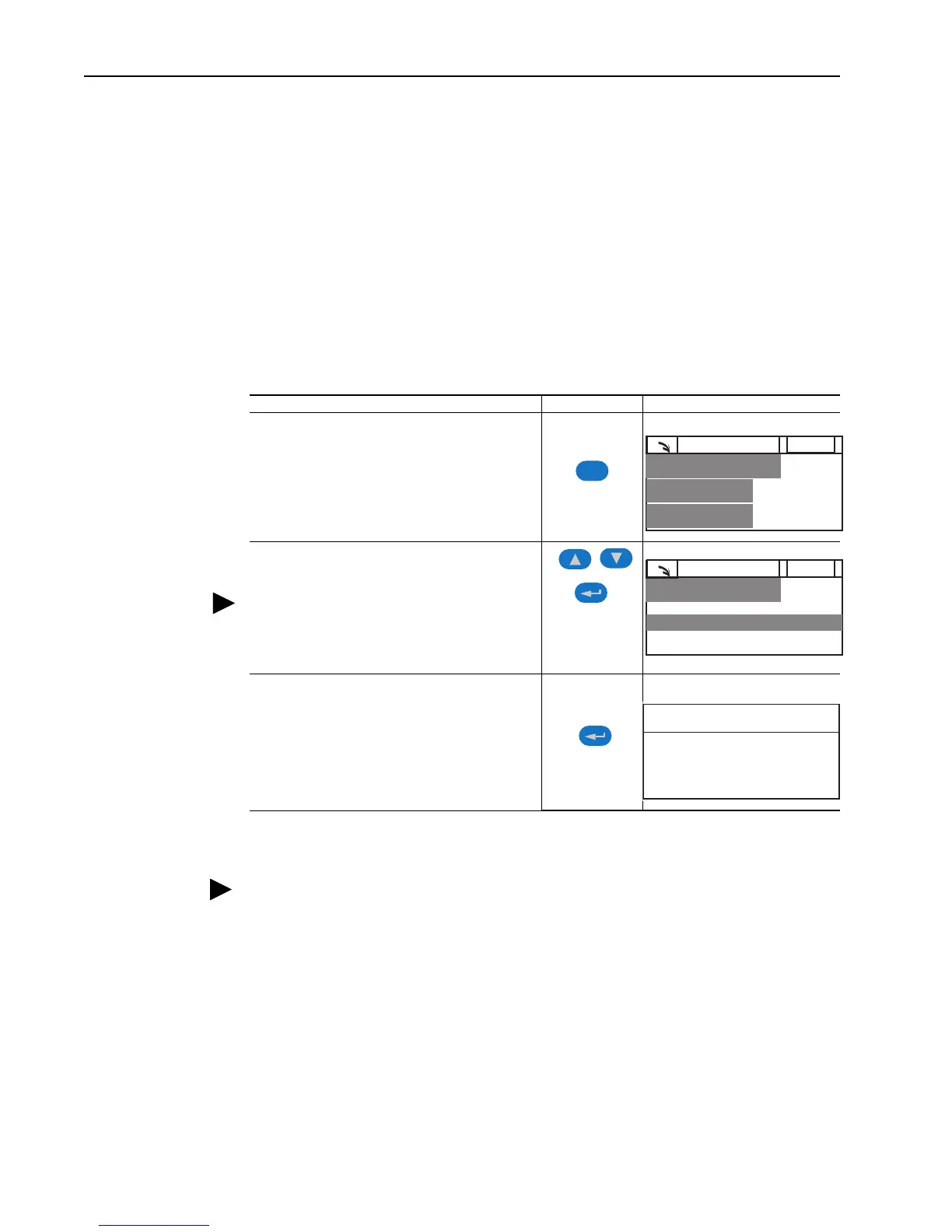

Step Key(s) Example LCD Displays
1. To exit the User Display screen Press Esc.
1. In the Main Menu, use the Down Arrow to scroll to
“Start Up”.
2. Press Enter.
TIP: Throughout the Start-Up Routine
many screens have more selections than
shown. Use the arrow keys to scroll
through all the menu options.
1. Follow the instructions on the screen to complete the
Start-Up.
Esc
Auto
F
Stopped
RPM
DC Bus V
Output C
0.0
0.0
0.0
Auto
F
Stopped
0.0
RPM
Main Menu:
Parameter
Device Select
Diagnostics
0.0
0.0
routine sets up
Diagnostics
PowerFlex 700S
Start-Up
The Start-Up
the drive for
basic operation.
Push Enter.
TIP: If using a HIM the following functions are not available.
• Alt-Man
• Alt-Lang
• Alt-SMART
