PowerFlex® 700S Drives - Phase I Control (Frame Sizes 9 & 10) 9
Frame 10 Size Drives
When lifting frame size 10 drives you must:
• attach the lifting hardware.
• remove the skid and shipping feet.
Frame 10 Approximate Weights - Enclosed Drives

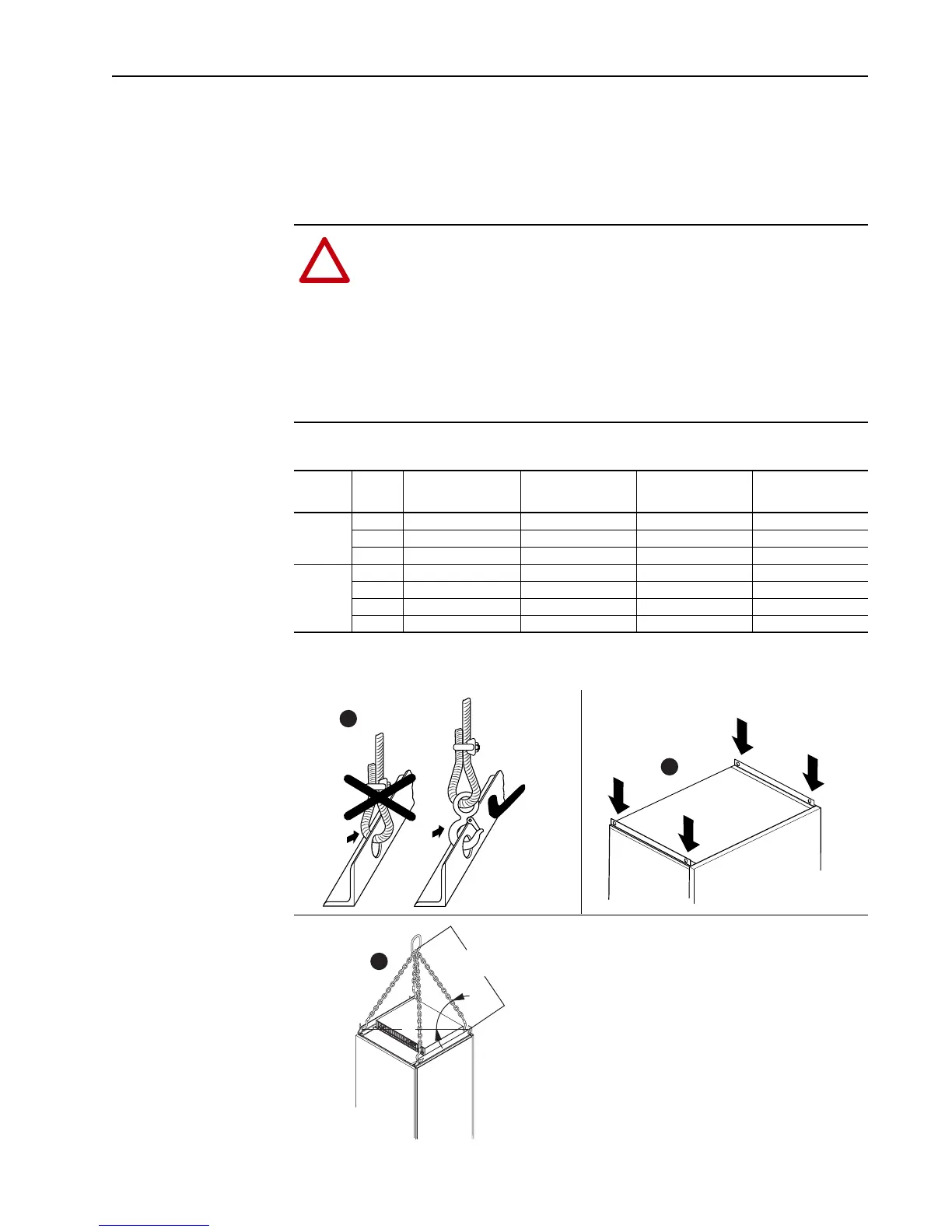

Attaching Lifting Hardware to Frames 10 Size Drives
!
ATTENTION: To guard against possible personal injury and/or equipment
damage...
• Do Not allow any part of the drive or lifting mechanism to make
contact with electrically charged conductors or components.
• At no time should a person or their limbs be directly underneath the
items being lifted.
• Do not subject the load to high rates of acceleration or deceleration.
• Inspect all lifting hardware for proper attachment before lifting drive
unit.
Voltage
Class
Drive
Rating
Amps
AC Input Drive &
Enclosure
Weight kg (lbs.)
AC Input Drive &
Packaging
Weight kg (lbs.)
DC Input Drive &
Enclosure Weight kg
(lbs.)
DC Input Drive &
Packaging
Weight kg (lbs.)
400 385 382 (842) 432 (952) 267 (589) 317 (699)
460 382 (842) 432 (952) 267 (589) 317 (699)
520 382 (842) 432 (952) 267 (589) 317 (699)
600 261 320 (705) 370 (816) 267 (589) 317 (699)
325 351 (774) 401 (884) 267 (589) 317 (699)
385 351 (774) 401 (884) 267 (589) 317 (699)
416 351 (774) 401 (884) 267 (589) 317 (699)
B
A
A
Min. 60˚
B > A
TIP: To ensure that this angle is greater
than 60°, make the length of chain or
cable between the center and the corners
(B) longer than the distance between the
opposite corners (A).
C
