1-16 PowerFlex 700 Dimensions
PowerFlex 700
Dimensions

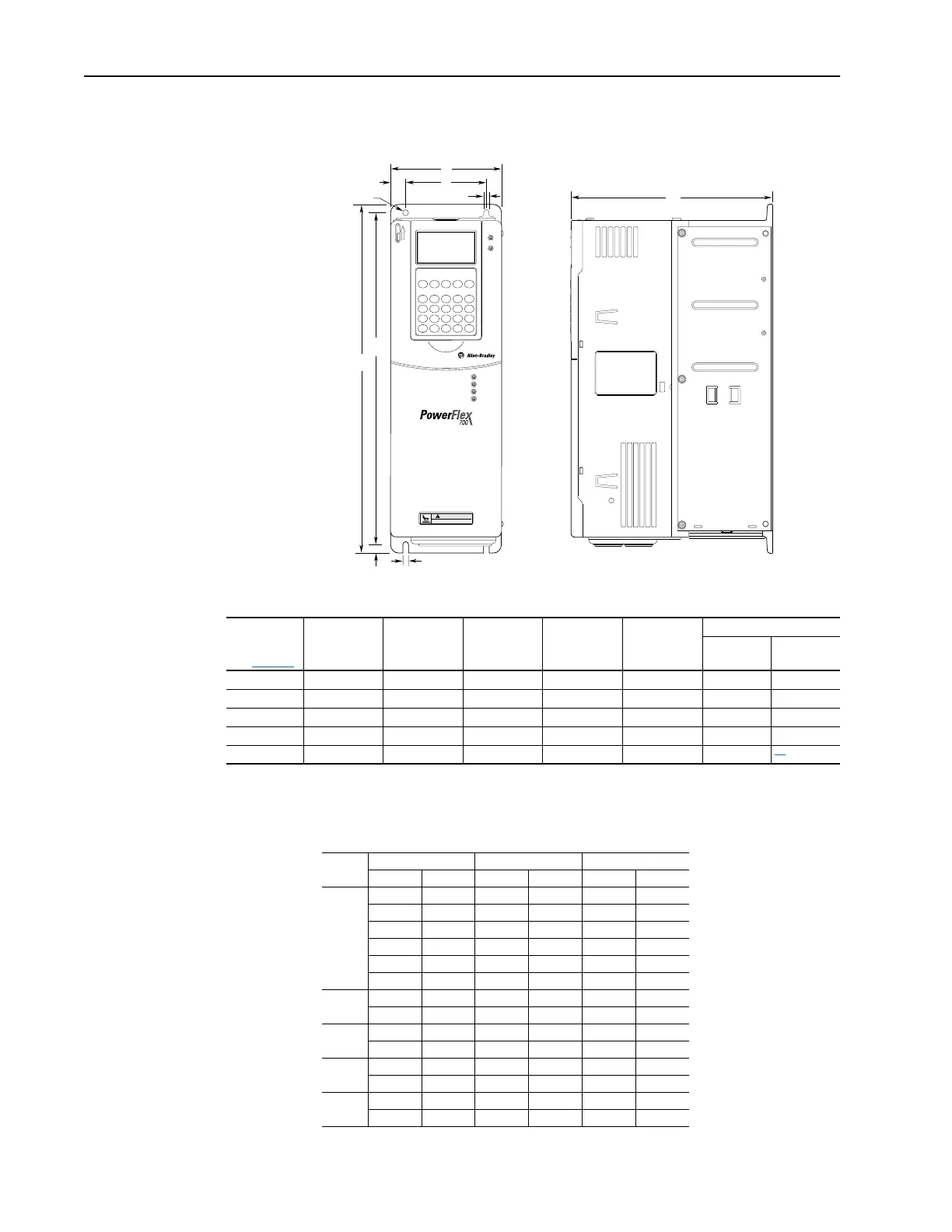

Figure 1.16 PowerFlex 700 Frames 0-3 (0 Frame Shown)
Dimensions are in millimeters and (inches).
Table 1.B PowerFlex 700 Frames
C
A
D
15.0 (0.59)
5.8 (0.23) dia.
5.5 (0.22)
E
8.0
(0.31)
5.5 (0.22)
B
HOT surfaces can cause severe burns
CAUTION
Frame
(see Table 1.B) ABCDE
Weight
(1)
kg (lbs.)
Drive
Drive &
Packaging
0 110.0 (4.33) 336.0 (13.23) 200.0 (7.87) 80.0 (3.15) 320.0 (12.60) 5.22 (11.5) 8.16 (18)
1 135.0 (5.31) 336.0 (13.23) 200.0 (7.87) 105.0 (4.13) 320.0 (12.60) 7.03 (15.5) 9.98 (22)
2 222.0 (8.74) 342.5 (13.48) 200.0 (7.87) 192.0 (7.56) 320.0 (12.60) 12.52 (27.6) 15.20 (33.5)
3 222.0 (8.74) 517.5 (20.37) 200.0 (7.87) 192.0 (7.56) 500.0 (19.69) 18.55 (40.9) 22.68 (50)
5 300.0 (11.81) 583.0 (22.95) 270.3 (10.64) 225.0 (8.86) 625.0 (24.61)
(2) (2)
(1)
Weights include HIM and Standard I/O.
(2)
Not available at time of publication
Frame
208/240V ACInput 400V AC Input 480V AC Input
ND HP HD HP ND kW HD kW ND HP HD HP
0 0.5 0.33 0.37 0.25 0.5 0.33
1 0.75 0.75 0.55 1 0.75
2 1.5 1.5 0.75 2 1.5
322.21.532
––42.253
––5.5 4 7.5 5
1 5 3 7.5 5.5 10 7.5
7.5 5 11 7.5 15 10
2 10 7.5 15 11 20 15
––18.5152520
3 15 10 22 18.5 30 25
20 15 30 22 40 30
5 –––45 – 60
––55 – 75 –
