13. Place the faceplate (A in FIG. 14) onto the main AXD unit (B in FIG. 14) by gripping the
object at both sides, resting the top rim of the faceplate to the top rim of the housing, then
applying gentle downward force. Make sure to align the Light, IR receiver, and PIR Motion
sensor locations to their respective openings on the front bezel/faceplate. Make sure the buttons
are flush against the faceplate.
14. Reconnect the audio wiring to its respective terminal locations on the selected external audio
equipment for use in conferencing.
15. Reconnect the 4-pin mini-AXlink connector from the panel to the Central Controller and
provide power to the unit.
Installation of the AC-CP4A/WRB Faceplates
AMX now offers a new option - a set of water-resistant bezels for AXD-CP4/A touch panels:
AC-CP4A/WRB. This faceplate set includes all three (3) color configurations - beige, black, and
white - covered with a thin transparent water-resistant film that covers the entire surface of the
bezel including the touch screen, sensor lens, and pushbuttons. It also includes a rubber-foam
gasket to "seal" the gap between the bezel, the back box and the wall. It is a perfect solution that
brings the power of AMX touch panels into wet and splashy environments inside your house or
office building.

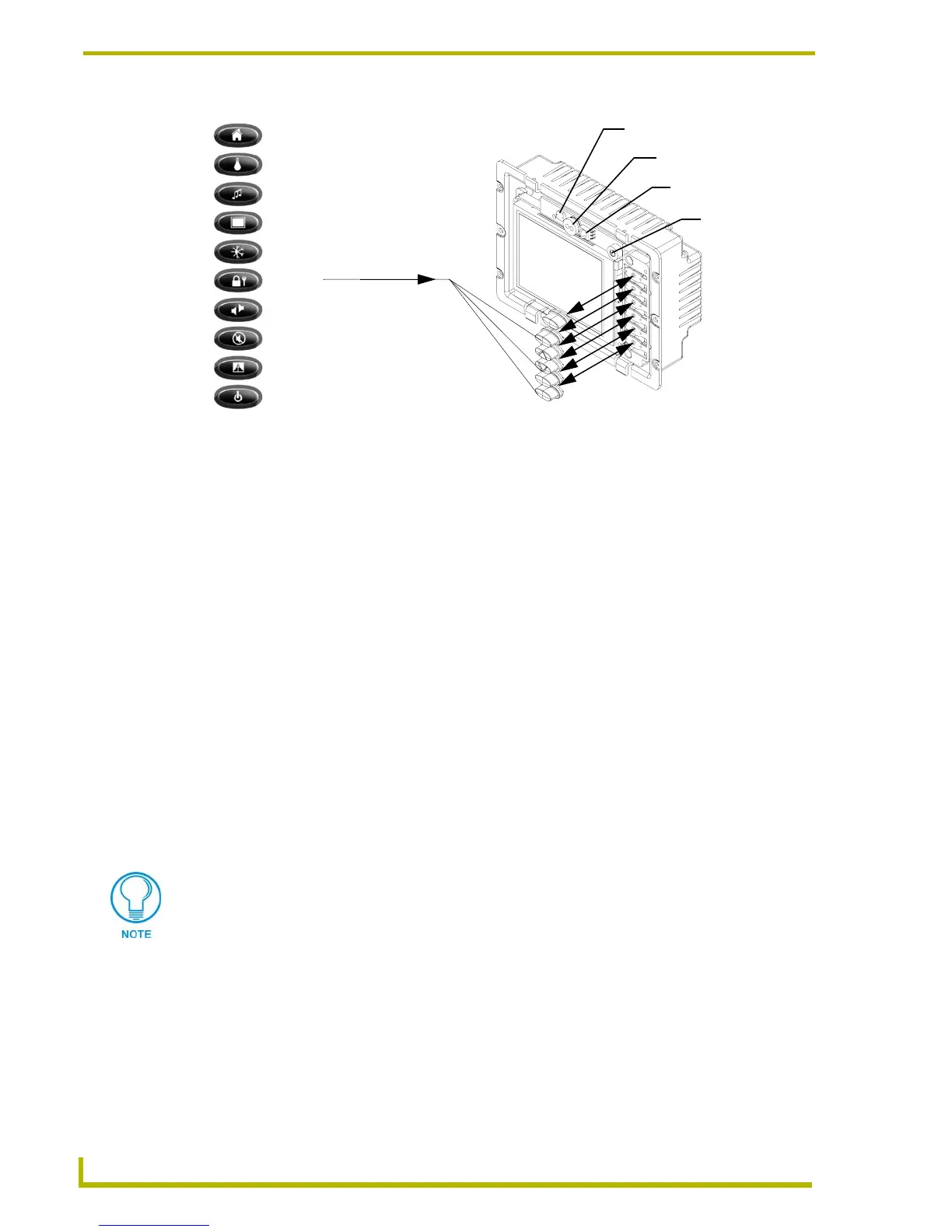

FIG. 15 Plastic pushbutton replacement locations
Standard pushbutton
icons (come in 3 colors
Menu
Lights
Audio
Video
Environment
Security
Intercom
Mute
Drapes
Power
PIR (Passive Infrared)
Sensor
IR Receiver
Light Sensor
Microphone
Black, Beige, and White)
The AC-CP4A/WRB is intended for installation to AXD units.
The two main installation environments where this accessory can be used are: Solid
surface (using four #4-40 solid surface screws) and Drywall surface
(using 2 - #6 drywall clips and screws).
