AMX COLOR TOUCH PANELS WITH AUDIO (G3 FIRMWARE) User Manual

Designing Touch Panel Pages
28
4" Color Touch Panels with Audio
Activating Edit Mode
Before designing touch panel pages and buttons, you must activate Edit mode. Once activated, use
the
EDIT button to enter Edit mode. This mode has options to add and configure touch panels and
buttons. When powering up the touch panel, the first page is the Main page (FIG. 25). Note that the
Edit button is not available initially. If you have a pre-programmed panel, you may not see the Main
page.
To activate Edit mode:
1. Press
SETUP in the Main page to open the Setup page (FIG. 26).
2. Press
PROTECTED SETUP to open the keypad.

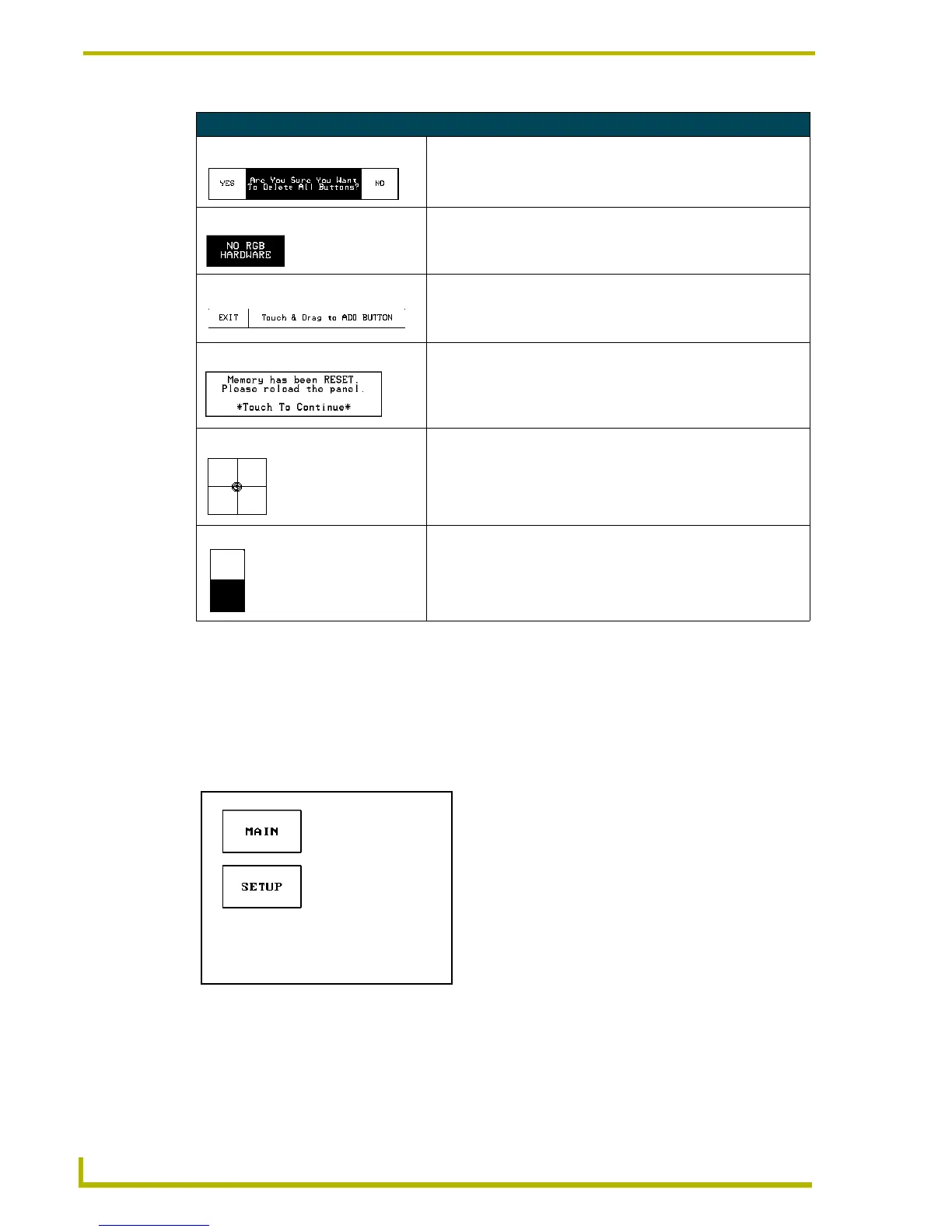

General Button Categories (Cont.)
Decision buttons Decision buttons appear when an operation has two options and
requires verification before an action is performed.
Status buttons Status buttons always have a dark fill with light letters and have no
functionality except to display information.
Operation bars Operation bars appear in the place of the Editor bar, after selecting a
button or page edit operation. The operation bar indicates which edit
function is currently active. When an edit operation is selected, it
remains active until you press EXIT.
Touch to Continue buttons "Touch to Continue" buttons appear when an operation requires user
acknowledgement.
Joystick buttons Joysticks are vertical and horizontal direction controllers for use with
pan and tilt camera controllers.
Bargraph buttons Bargraph buttons display a dynamic bargraph (vertical or horizontal).
An example is the Battery level indicator button.
FIG. 25 Main Page
