2.17 FMC-HPC interface
The MPS3 board supports high speed, high pin count expansion using the FPGA Mezzanine Card (FMC)
standard.
Overview of the FMC-HPC interface
The MPS3 board uses the FMC
‑ High Pin Count (FMC‑HPC) variant and provides:
• One 400‑way Samtec SEARAY connector.
• 160 I/O.
• 10 × high‑speed differential transceivers, Multi ‑ Gigabit Transceivers (MGTs).
• 2 × high‑speed differential clocks, MGT clocks.
• Four differential clocks.
• Power.

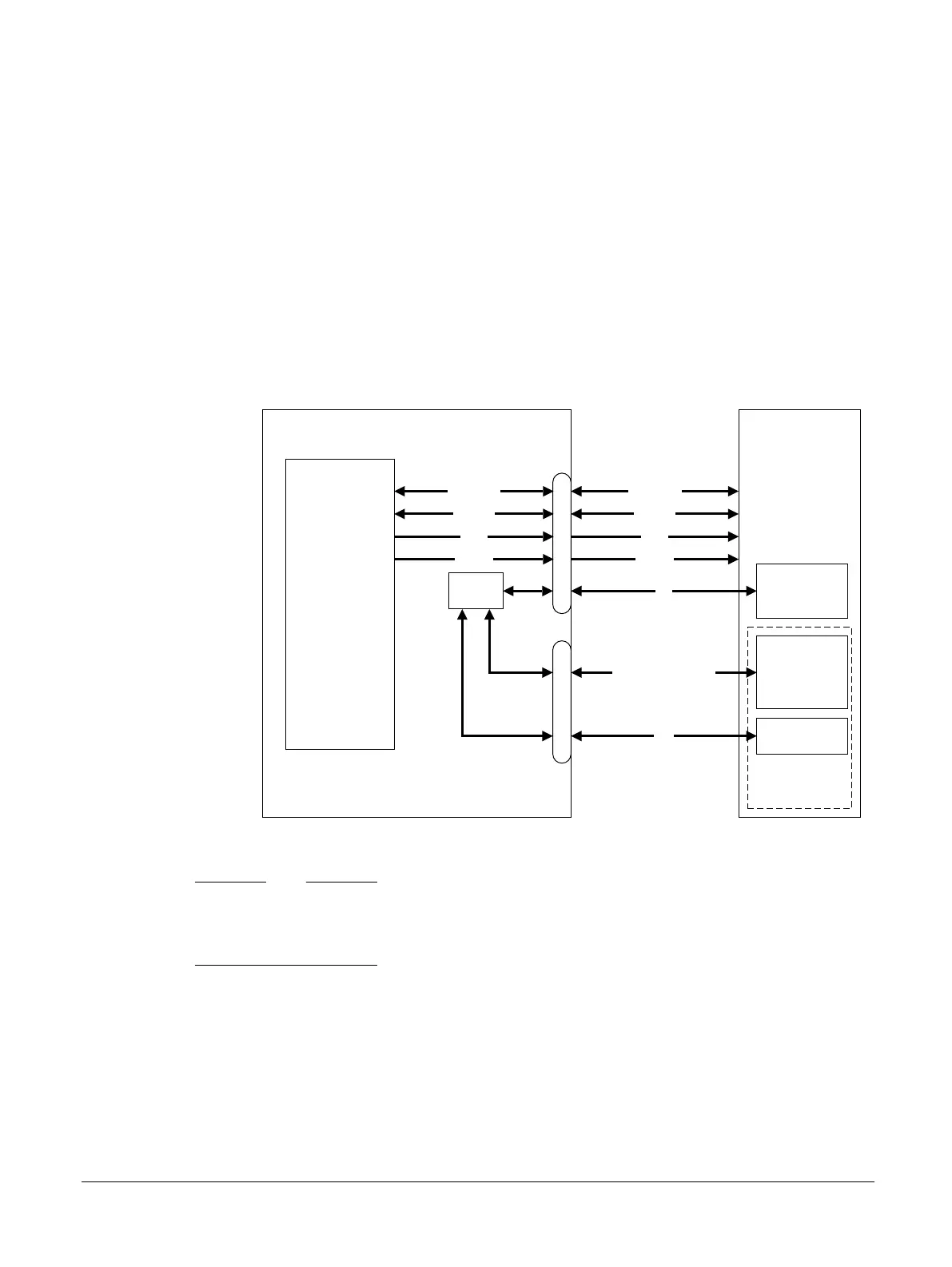

The following figure shows the MPS3 board FMC‑HPC interface.
MPS3 FPGA Prototyping Board
FPGA
160 I/O
FMC-HPC
400-way
connector
Clks
Power
FMC-HPC
expansion board
160 I/O
Clks
Power
Arm
daughterboard
configuration
EEPROM
FMC
configuration
connector
MCC
I
2
C configuration
FMC board
configuration
EEPROM
I
2
C
DCC
SPI
Reserved
for Arm
daughterboards
10 MGTs10 MGTs
Figure 2-22 MPS3 board FMC-HPC interface
Note
The FMC board configuration EEPROM is part of the FMC standard. The Arm daughterboard
configuration EEPROM and Daughterboard Configuration Controller (DCC) are not part of the FMC
standard but are supplied with Arm FMC daughterboards.
FPGA-FMC pin connectivity
The FPGA-FMC pin connectivity is available in Application Note AN533 Blinky example FPGA image
for the MPS3 Prototyping Board.
The Application Note can be downloaded as a pack from:
https://developer.arm.com/tools-and-software/development-boards/fpga-prototyping-boards/download-
fpga-images.
