A.7 HDMI Type A female connector
The female HDMI connector on the MPS3 board provides digital video and digital audio to external
displays.

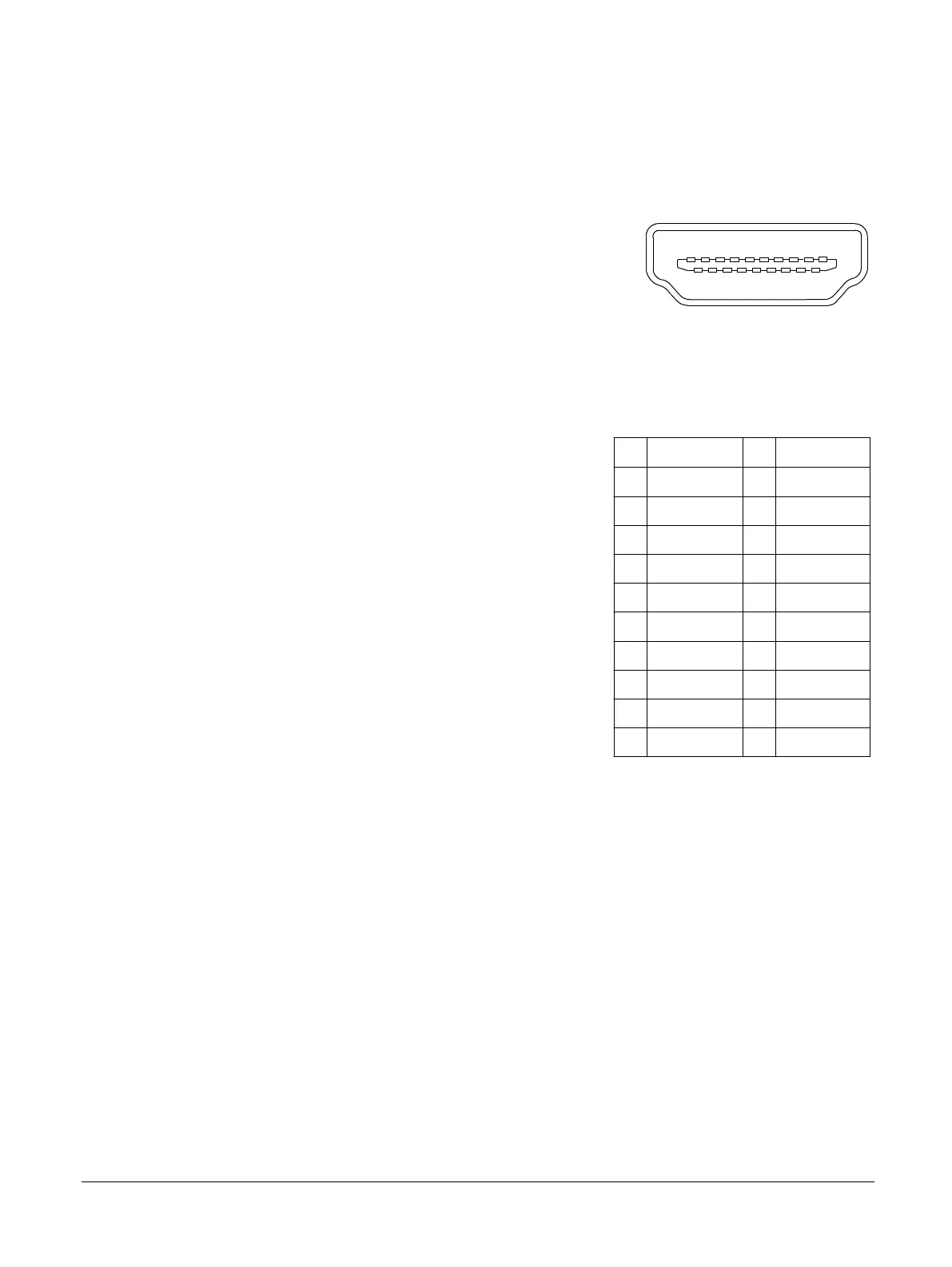

The following figure shows the HDMI connector, J3.
1
2
19
18
Figure A-12 HDMI connector
The following table shows the pin mapping for the HDMI connector, J3, including encoded I
2
S digital
audio.
Table A-15 HDMI connector, J3, signal list
Pin Signal Pin Signal
1 DVI_TX2P 2 GND
3 DVI_TX2N 4 DVI_TX1P
5 GND 6 DVI_TX1N
7 DVI_TX0P 8 GND
9 DVI_TX0N 10 DVI_TXCP
11 GND 12 DVI_TXCN
13 DVI_CECAO 14 No connection
15 DVI_DSCLO 16 DVI_DSDAO
17 GND 18 DVI_5V0
19 DVI_HPDO - -
Related information
2.9 Video HDLCD interface on page 2-36
1.3 Location of components on the MPS3 board on page 1-15
A Signal descriptions
A.7 HDMI Type A female connector
100765_0000_04_en Copyright © 2017–2020 Arm Limited or its affiliates. All rights
reserved.
Appx-A-85
Non-Confidential
