1
13
2
14

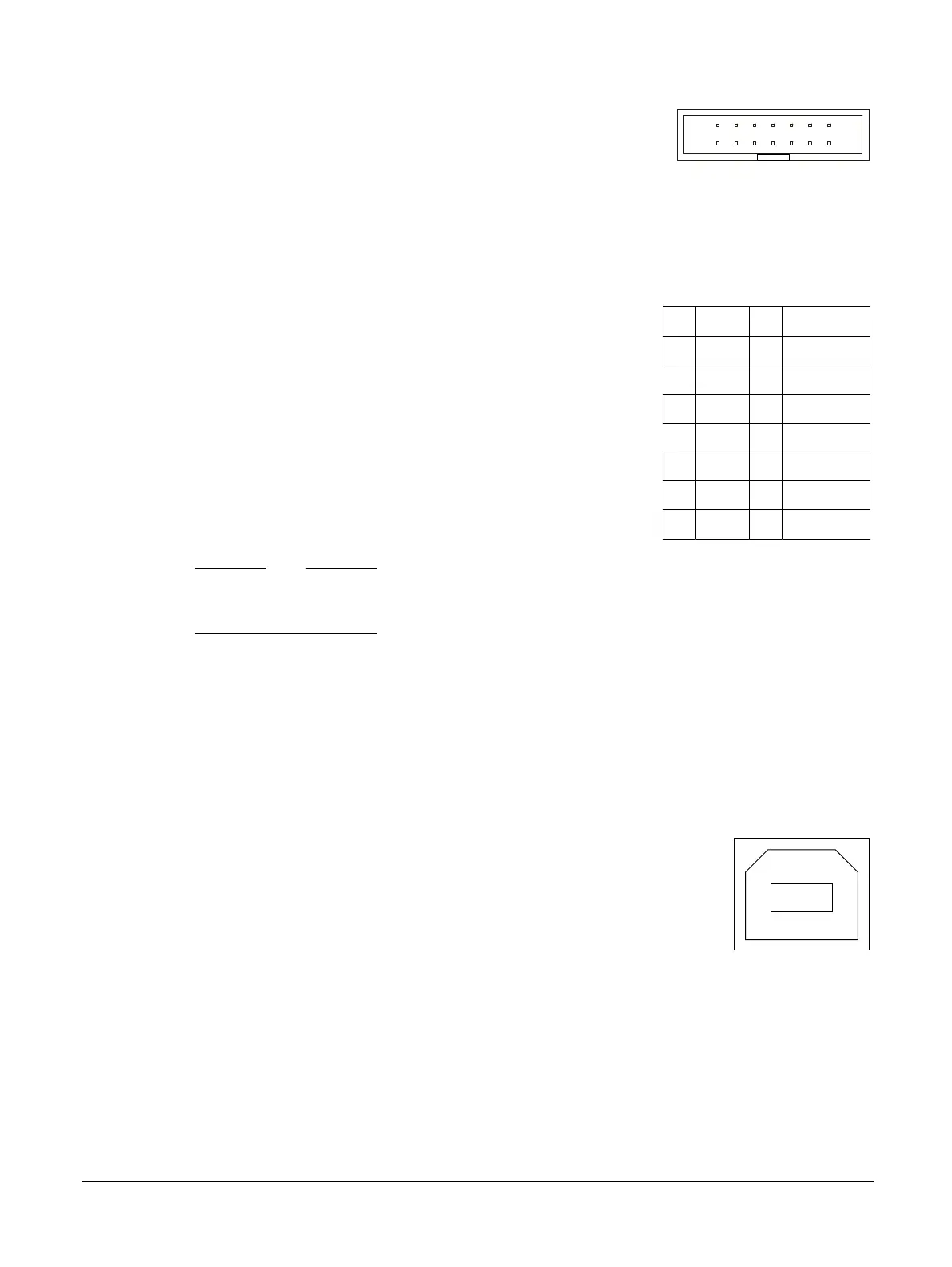

Figure A-5 14-pin F-JTAG ILA connector
The following table shows the pin mapping for each P‑JTAG and SWD signal on the 14‑pin F‑JTAG ILA
connector.
Table A-5 14-pin F-JTAG ILA connector, J17, pin mapping
Pin Signal Pin Signal
1 GND 2 3V3_OUT
3 GND 4 FPGA_TMS
5 GND 6 FPGA_TCK
7 GND 8 FPGA_TDO
9 GND 10 FPGA_TDI
11 NC 12 NC
13 NC 14 NC
Note
• Pins 4, 8, and 10 have pullup resistors to 3V3.
• Pin 6 has a pulldown resistor to GND.
Related information
2.18 System debug on page 2-50
1.3 Location of components on the MPS3 board on page 1-15
A.1.6 Debug USB 2.0 connector
The MPS3 board provides one USB 2.0 connector that supports configuration file editing in the
microSD, UART access to the FPGA, and CMSIS‑DAP FPGA debug using SWD only.
The following figure shows the USB type B connector, J8.
Figure A-6 Debug USB 2.0 connector
Related information
2.18 System debug on page 2-50
1.3 Location of components on the MPS3 board on page 1-15
3.2 Remote USB operation on page 3-57
A Signal descriptions
A.1 Debug connectors
100765_0000_04_en Copyright © 2017–2020 Arm Limited or its affiliates. All rights
reserved.
Appx-A-75
Non-Confidential
