ASUS P8P67 WS Revolution 3-31
3.8.3 ASUS Drive Xpert
• Before using the Drive Xpert function, ensure that you have connected the
SATA signal cables and installed SATA hard disk drives to the SATA6G_E1
and SATA6G_E2 connectors.
• You can only make one Drive Xpert change a time before you save BIOS
settings and restart the computer.
Drive Xpert Mode
[Normal Mode] Allows you to use the SATA6G_E1 and SATA6G_E2 connectors as
normal SATA connectors.
[Super Speed] Allows you to use the Super Speed function that combines two
hard drives as one single drive partition.
[EZ Backup] Allows you to use the EZ Backup function that copies and
maintains an identical image of data from the SATA6G_E1 drive to
the SATA6G_E2 drive.
When using only one hard disk in Normal Mode, connect the hard disk to the
SATA6G_E1 connector on the motherboard.
• All original data of the two hard drives will be erased for Super Speed
setup.
• All original data of the SATA6G_E2 hard disk will be erased for EZ Backup
setup.
Drive Xpert Device(s) List:
SATA 6G E1 (Navy Blue) / SATA 6G E2 (Navy Blue)
Press <Enter> to display the information of the hard disks which are
connected to the SATA6G_E1 and SATA6G_E2 connectors on the
motherboard.
Main
Ai Tweaker
Advanced Monitor Boot Tool
Exit
Drive Xpert Mode

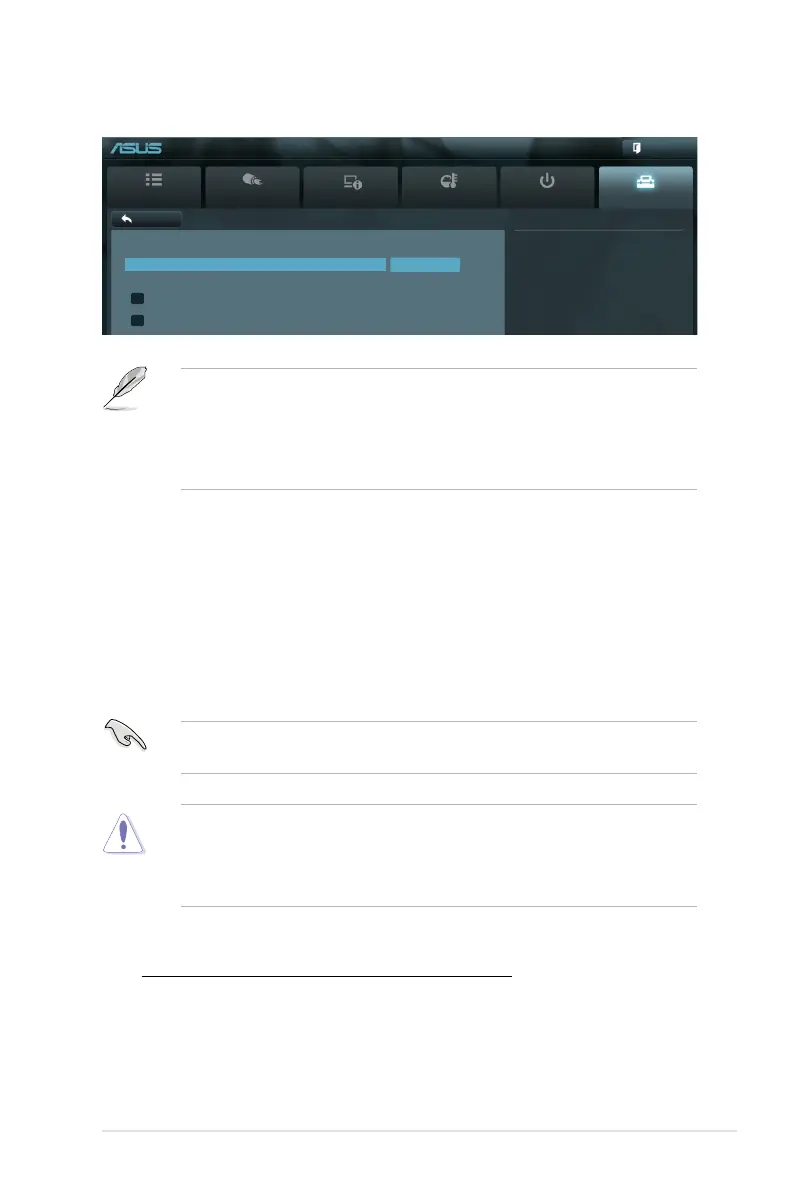

Back Tool\ ASUS Drive Xpert >
EFI BIOS Utility - Advanced Mode
Drive Xpert Setup Utility
Drive Xpert Mode Normal Mode
Drive Xpert Device(s) List :
> SATA 6G E1 (Navy Blue)
> SATA 6G E2 (Navy Blue)

Asus P8P67 WS Revolution Specifications

General

Chipset	Intel P67
CPU Socket	LGA 1155
Form Factor	ATX
Audio	Realtek ALC892 8-Channel High Definition Audio CODEC
RAID Support	RAID 0, 1, 5, 10
Memory Support	4 x DIMM, Max. 32GB
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 MHz
Storage	4 x SATA 3Gb/s
USB Ports	12 x USB 2.0 (6 at back panel, 6 by internal headers), 2 x USB 3.0 (at back panel)
Networking	Dual Gigabit LAN
