• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis
power LED cable to this connector. The system power LED lights up when
you turn on the system power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity
LED cable to this connector. The IDE LED lights up or flashes when data is
read from or written to the HDD.
• System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.
• ATX power button/soft-off button (2-pin PWRSW)
This connector is for the system power button. Pressing the power button
turns the system on or puts the system in sleep or soft-off mode depending
on the BIOS settings. Pressing the power switch for more than four seconds
while the system is ON turns the system OFF.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system
reboot without turning off the system power.

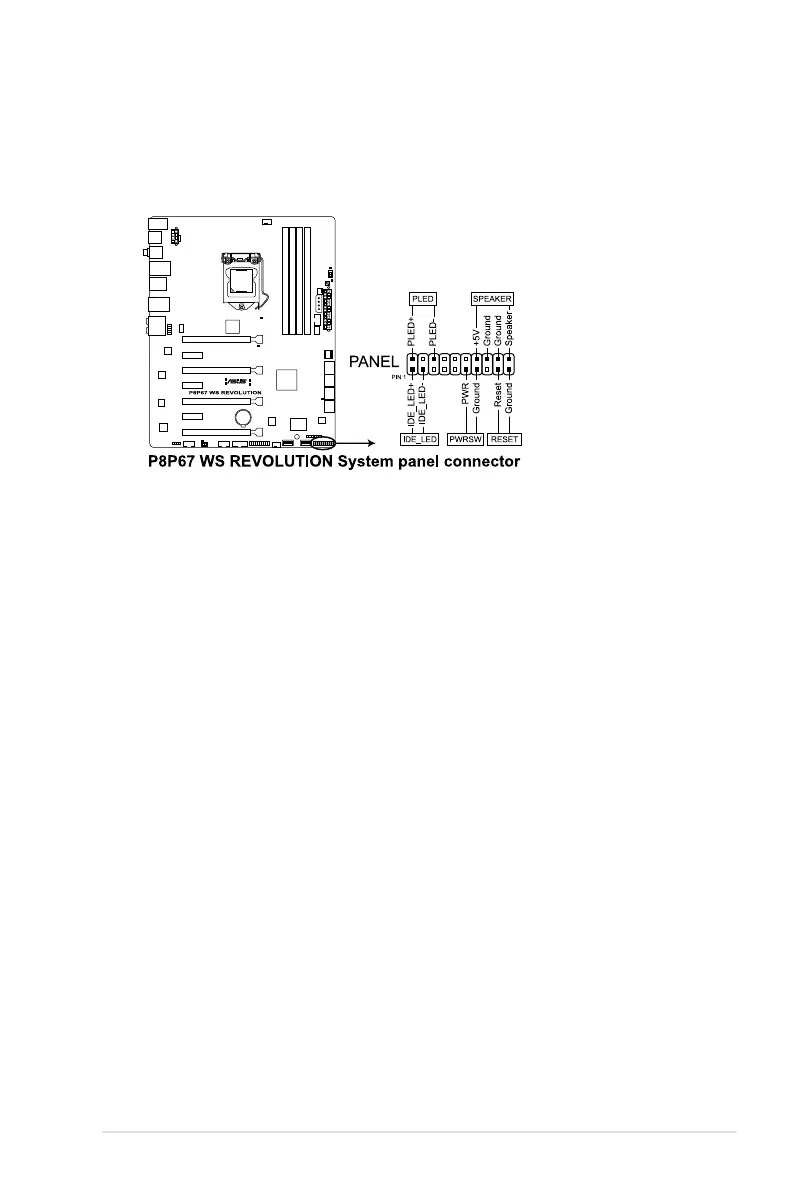

12. System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.
ASUS P8P67 WS Revolution 2-27

Asus P8P67 WS Revolution Specifications

General

Chipset	Intel P67
CPU Socket	LGA 1155
Form Factor	ATX
Audio	Realtek ALC892 8-Channel High Definition Audio CODEC
RAID Support	RAID 0, 1, 5, 10
Memory Support	4 x DIMM, Max. 32GB
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 MHz
Storage	4 x SATA 3Gb/s
USB Ports	12 x USB 2.0 (6 at back panel, 6 by internal headers), 2 x USB 3.0 (at back panel)
Networking	Dual Gigabit LAN
