Asus P8P67 WS Revolution User Manual


Port H e a d s e t
2-channel
4-channel 6-channel 8-channel
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Subwoofer Center/Subwoofer
Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out
Gray – – – Side Speaker Out
* LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
Activity Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used
under Windows
®
OS environment and after the USB 3.0 driver installation.
• USB 3.0 devices can only be used as data storage only.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0
ports for faster and better performance for your USB 3.0 devices.

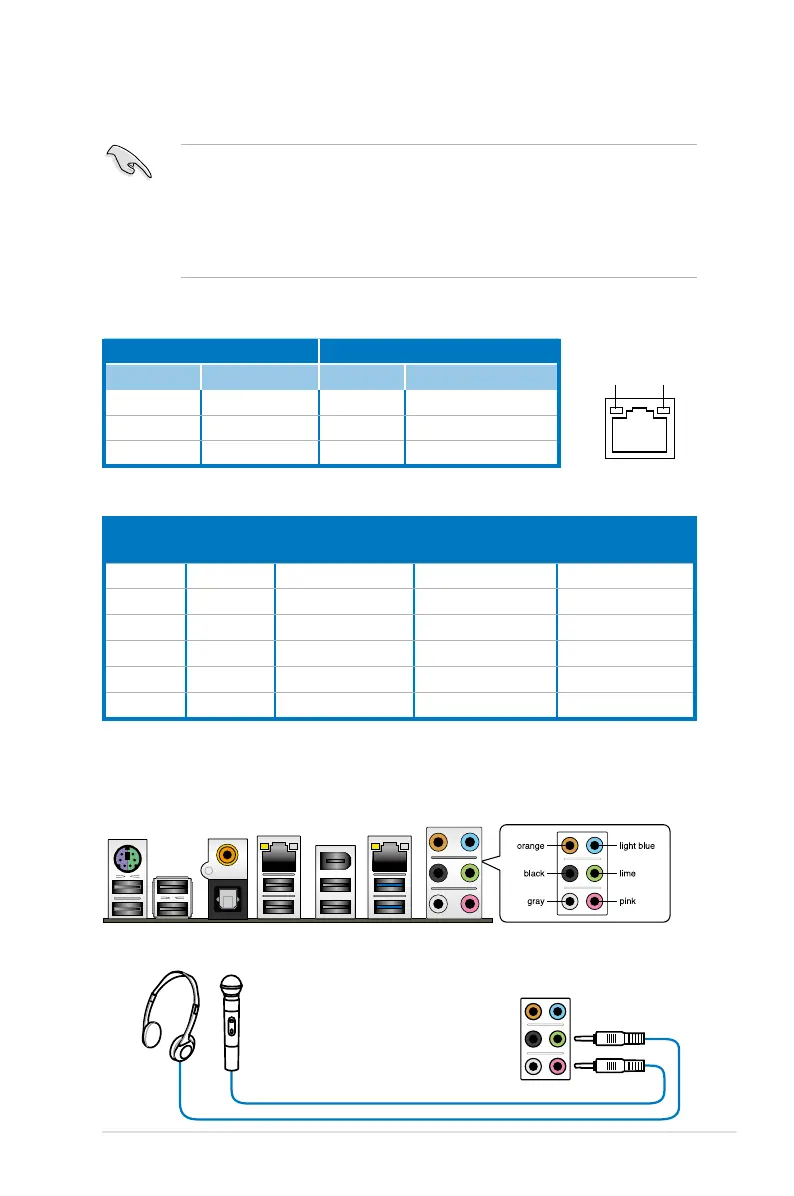

2.3.11 Audio I/O connections
Audio I/O ports
Connect to Headphone and Mic
ASUS P8P67 WS Revolution 2-41

Asus P8P67 WS Revolution Specifications

General

Chipset	Intel P67
CPU Socket	LGA 1155
Form Factor	ATX
Audio	Realtek ALC892 8-Channel High Definition Audio CODEC
RAID Support	RAID 0, 1, 5, 10
Memory Support	4 x DIMM, Max. 32GB
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 MHz
Storage	4 x SATA 3Gb/s
USB Ports	12 x USB 2.0 (6 at back panel, 6 by internal headers), 2 x USB 3.0 (at back panel)
Networking	Dual Gigabit LAN
