Asus P8P67 WS Revolution User Manual

5-6 Chapter 5: Multiple GPU technology support

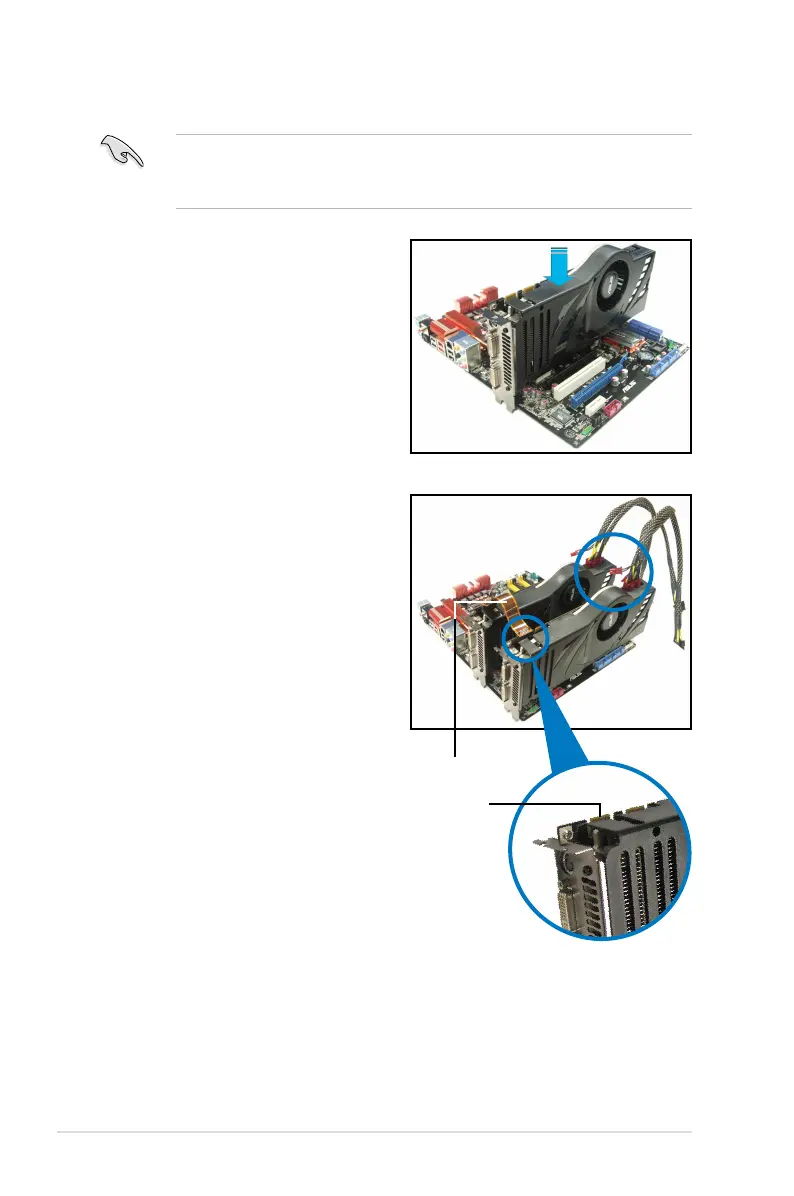

5.2.2 Installing two SLI-ready graphics cards
The following pictures are for reference only. The graphics cards and the
motherboard layout may vary with models, but the installation steps remain the
same.
1. Prepare two SLI-ready graphics
cards.
2. Insert the two graphics card into the
PCIEX16 slots. If your motherboard
has more than two PCIEX16 slots,
refer to Chapter 2 in this user
manual for the locations of the
PCIEX16 slots recommended for
multi-graphics card installation.
3. Ensure that the cards are properly
seated on the slots.
4. Align and firmly insert the SLI bridge
connector to the goldfingers on
each graphics card. Ensure that the
connector is firmly in place.
5. Connect two independent auxiliary
power sources from the power
supply to the two graphics cards
separately.
6. Connect a VGA or a DVI cable to the
graphics card.

SLI bridge

Asus P8P67 WS Revolution Specifications

General

Chipset	Intel P67
CPU Socket	LGA 1155
Form Factor	ATX
Audio	Realtek ALC892 8-Channel High Definition Audio CODEC
RAID Support	RAID 0, 1, 5, 10
Memory Support	4 x DIMM, Max. 32GB
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 MHz
Storage	4 x SATA 3Gb/s
USB Ports	12 x USB 2.0 (6 at back panel, 6 by internal headers), 2 x USB 3.0 (at back panel)
Networking	Dual Gigabit LAN
