2 Main parts
2.1 General description
The light tower provides an undercarriage (frame, axle and towbar) and 4 floodlights of 1000 W each. The light tower is very useful for construction sites where no
electricity nor lighting is available.

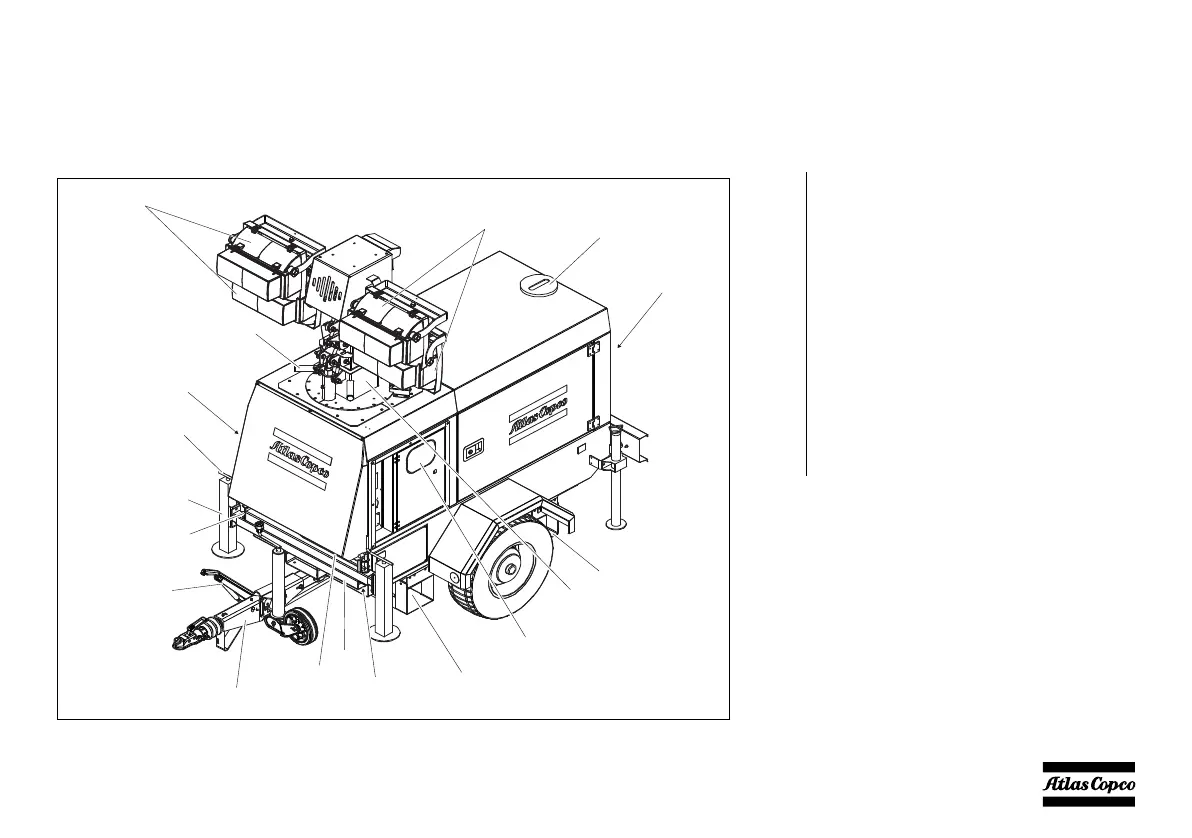

CP Control panel
DP Data plate
EP Earth pin (optional)
FCC Filling cap coolant
FCF Filling cap fuel
FL Floodlights
FS Forklift slots
HB Handbrake
LH Leveling handle, to adjust the height of the supporting
foot
LPS Locking pin stabilizer
MMast
RHM Rotating handles mast
ST Stabilizer and supporting foot
TB Towbar
U Undercarriage
FCC
M
FL
FL
TB
CP
FS
FS
U
EP
DP
FCF
DP
ST
HB
LPS
LH
RHM
