Atlas Copco HiLight H4 Kd ESF User Manual

- 28 -

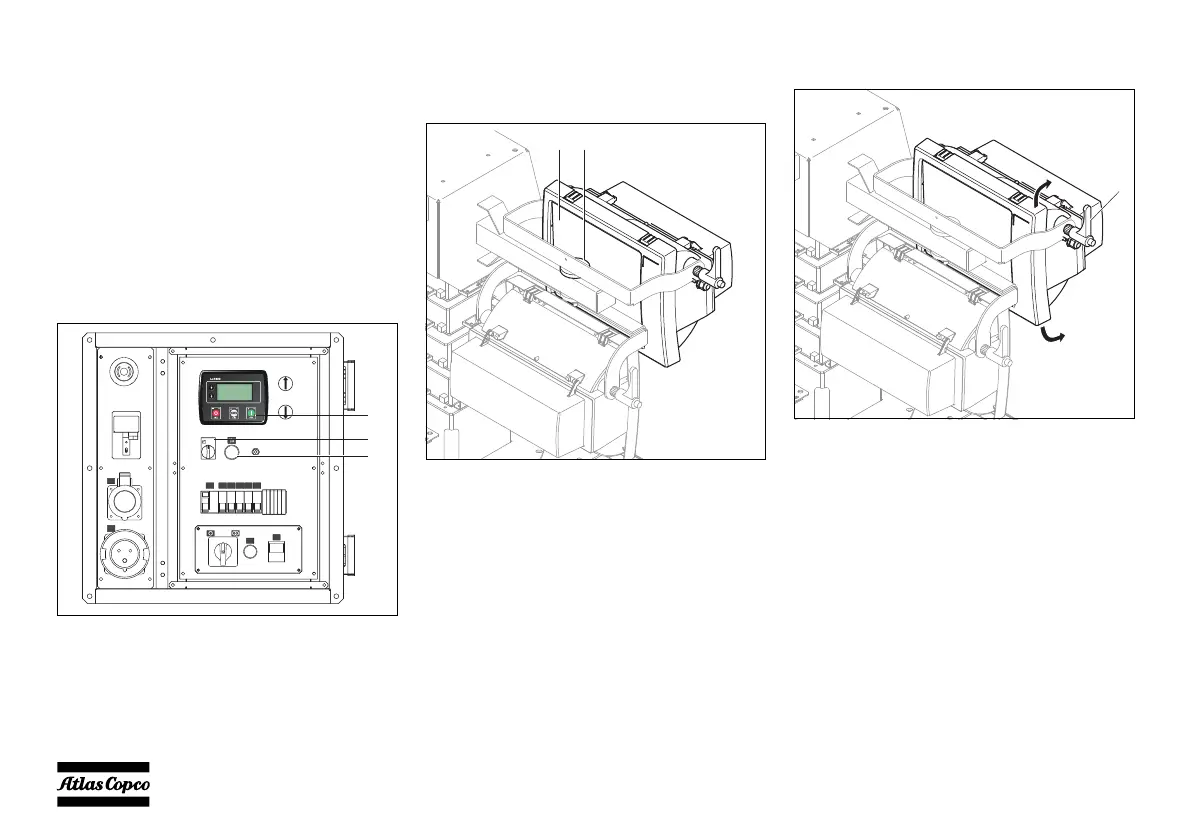

4.2.2 Starting the engine
1. Put starter switch S20 in position I (ON) (1) to
power the Lc1003™ module.
2. Push the START button (2) on the Lc1003™
module.
The pre-heater indicator (3) is lit. Auto preheating
starts and the engine will start after preheating.
3. Once the machine starts, the controller will check
that all functioning conditions are OK. If there is
any failure (low oil pressure, high coolant
temperature, etc...), the controller will display a
signal.
4.2.3 Positioning the floodlights
1. Check that the glass panes of the lights (1) are in
good condition.
2. Check the tightness of the nuts on top of the lamps
(2). Torque if necessary.
3. Loosen the handle at the side of the floodlight (3)
and adjust the inclination of the floodlight.
4. Tighten the handle again when the floodlight is in
the desired position.
5. Proceed with the extension of the mast as
described below.
1
2
3
Q2 Q3 Q4 Q5Q1
40A/30mA
Q6
X1
X2
0
1
P8
GE
ON
Q1 Q2 Q3 Q4 Q5 Q6
1 2
3
00_00_HiLight H4_EN.book Page 28 Monday, April 18, 2016 2:10 PM
