- 77 -
10.4 Dimension drawings

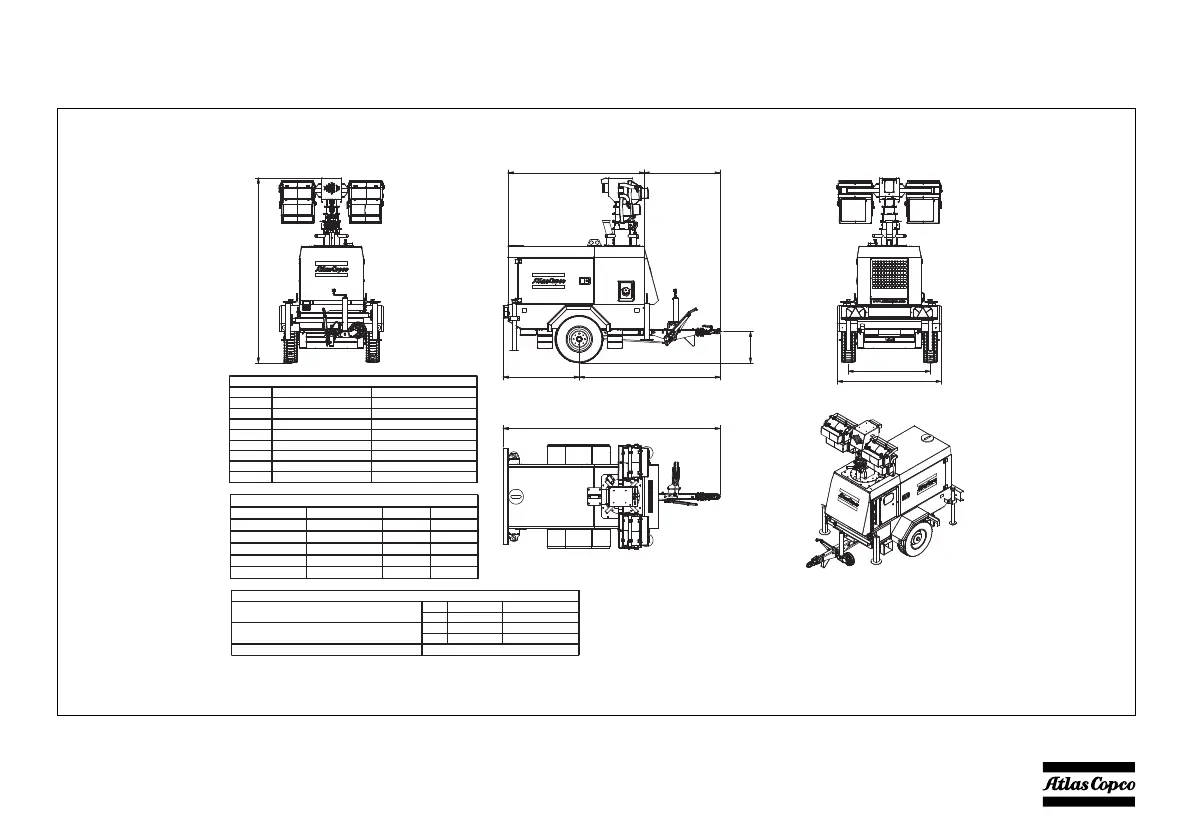

10.4.1 Dimension drawing for HiLight H4 with fixed towbar
A Total length (mm) See coupling system table
5921)mm( htdiw latoTB
0132)mm( thgieh latoTC
D Base frame length (mm) 1700
E Towbar length (mm) See coupling system table
F Towbar heigth (mm) 390
G Wheel track width (mm ) 1025
H Front cantilever (mm) See coupling system table
I Rear cantilever (mm) 950
HiLight H4
HiLight H4
FIXED TOWBAR
Type A E H
AK160 HEAD Ø50 2709,5 947,5 1759,5
DIN EYE Ø 40 2734 972 1784
ITA EYE Ø 45 2741,5 979,5 1791,5
FRA EYE Ø 68 2736 974 1786
NATO EYE Ø 76 2744 982 1794
COUPLING SYSTEM
1.300
FIXED TOWBAR
Maximum Technically Permissible Laden Mass (Kg.)
Maximum empty weight (Kg.)
Minimum empty weight (Kg.)
D
C
G
I H
F
Isometric view (1:30)
B
A
E
TOTAL
1185
TOTAL
1051,5
Weight on axle
1102
Weight on axle
978
Weight on towing eye
83
Weight on towing eye
73.5
