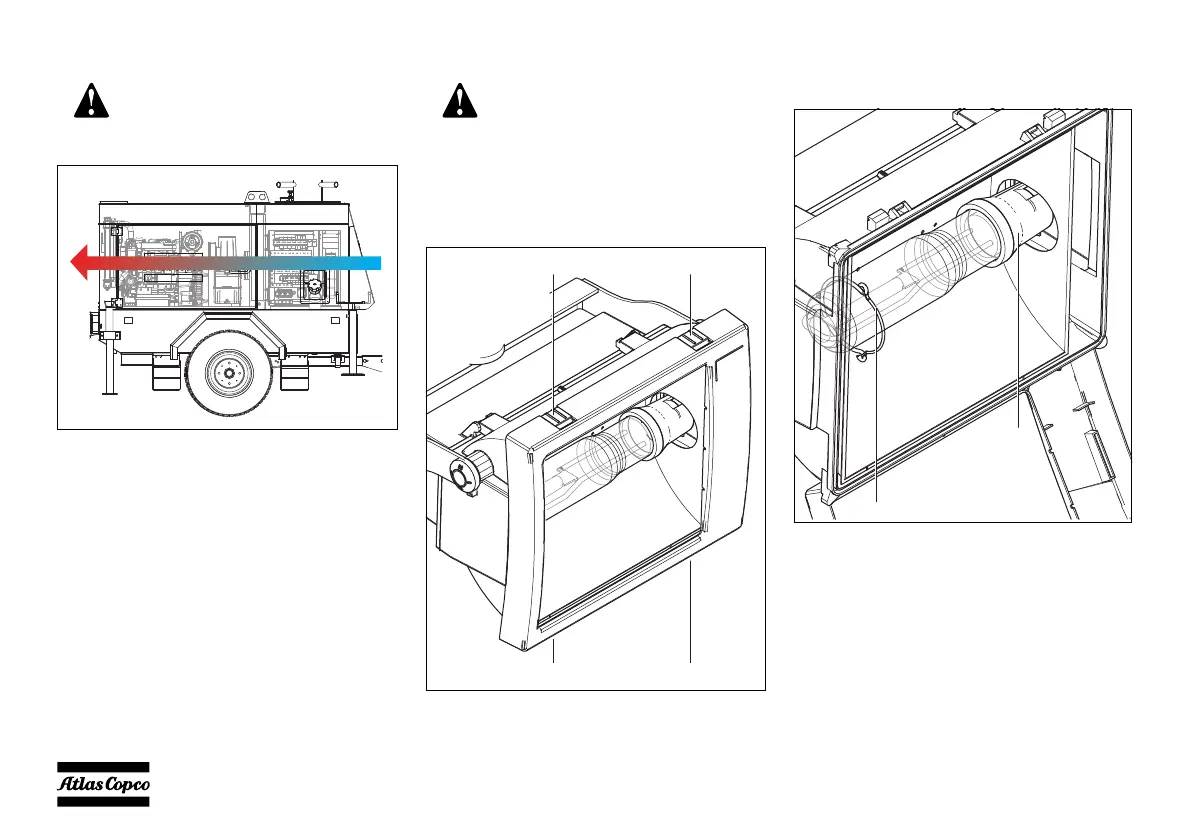

5.5.4 Air cooling circuit
The air flows from the front (towbar side) towards the
rear side of the machine. This means, cold air enters
at the front side and hot air exits at the rear side of the
machine.
5.5.5 Replacing the lamps
1. Release the 4 clamps (1) and rotate them to open
the protection glass. The glass must stay hinged
on the bottom part of the floodlight.
2. Remove the lamp, first releasing the safety spring
(2) placed around the lamp and then unscrewing
the lamp from its seat (3).
3. Install the new lamp and re-install the safety
spring (2).
4. Lock the protective glass using the 4 clamps and
remember to carefully tighten the screws with a
screwdriver.
Check every day that all the air
cooling circuits are not clogged with
dust or other particles. If any circuit
is obstructed, it must be cleaned.
Do not touch the lamps when they
are still hot without having taken all
necessary precautions. It is
recommended that protective gloves
are always worn.
