- 68 -
7.4.4 Override fuel shutdown
With this option installed, the floodlights will switch
off automatically one by one when the unit is running
out of fuel (<20%).
– At 20% fuel level:
Lamp 1 switches off
– At 15% fuel level:
Lamp 2 switches off
– At 12% fuel level:
Lamp 3 switches off
– At 10% fuel level:
Lamp 4 switches off
To instal this option wiring should be changed on
customer terminal X25. Make a bridge between
terminals 10.11, on X25-10 and X25-11.
Refer to circuit diagram 1636 0024 44/00_01 for the
correct connections.

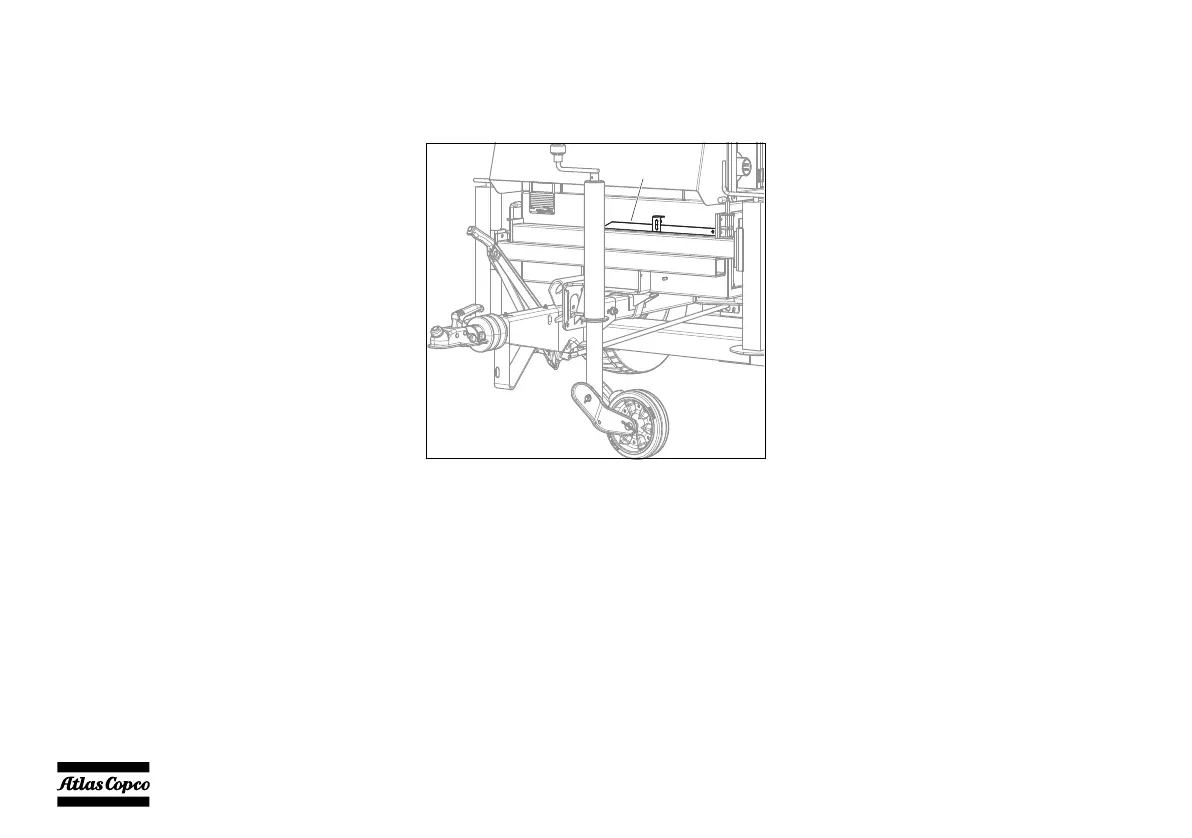

7.4.5 Earth pin
The earth pin (1), to be connected to the light tower’s
earth terminal is located at the bottom of the frame on
the outside.
1
00_00_HiLight H4_EN.book Page 68 Monday, April 18, 2016 2:10 PM
