7 Options available for HiLight H4 units
7.1 Overview of the mechanical
options
The following mechanical options are available:
– Undercarriage
7.2 Description of the
mechanical options
7.2.1 Undercarriage

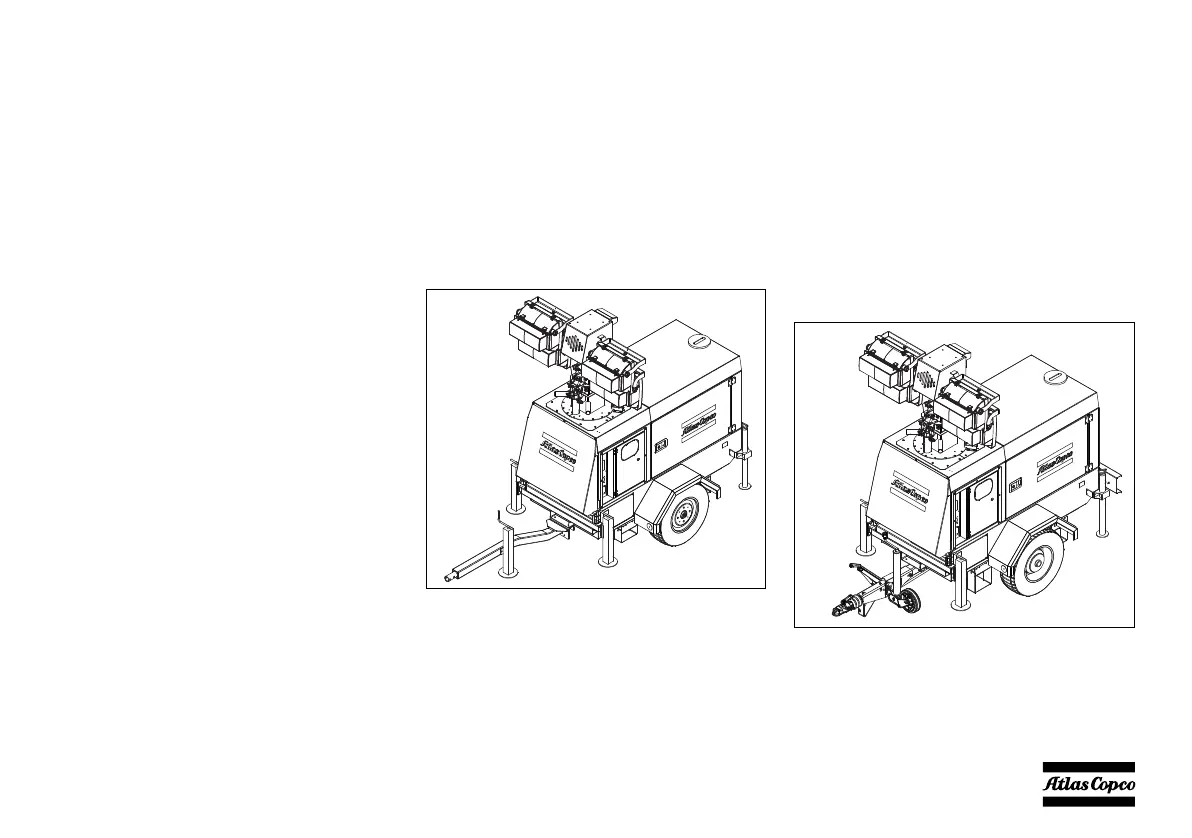

There are 3 variants of undercarriage available for
HiLight H4 light towers. Each variant has its own
specific features. An overview is given hereafter.
Not homologated for road use
(max speed 20 km/h)
This undercarriage provides:
– Fixed towbar, without inertia coupling
– Rigid axle, without brake
– Adjustable support
– Wheel
– Mudguard
Homologated for road use, fixed towbar
This undercarriage provides:
– Fixed towbar, with inertia coupling
– Axle with rubber suspension, with brake
– Wheel
– Jockey wheel
– Mudguard
– Electrical kit
– License plate support
