Atlas Copco HiLight H4 Kd ESF User Manual

- 78 -

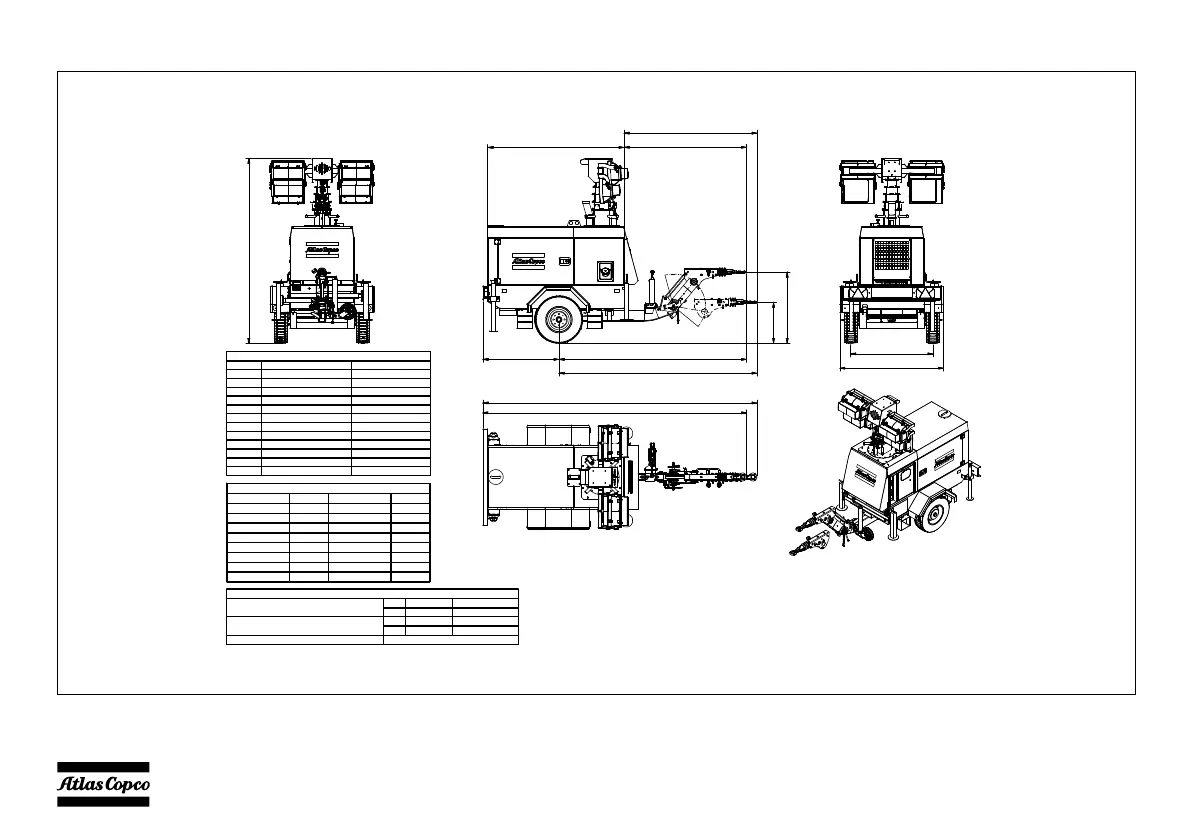

10.4.2 Dimension drawing for HiLight H4 with adjustable towbar
A Total length (mm ) See coupling system table
A1 Total length 1 (mm) A+145
5921)mm( htdiw latoTB
0132)mm( thgieh latoTC
D Bas e frame length (mm) 1700
E Towbar length (mm) See coupling system table
E1 Towbar length 1 (mm ) E+145
F Towbar height (mm ) 890
F1 Towbar height 1 (mm) 515
G Wheel track width (mm) 1025
H Front cantilever (mm) See coupling system table
H1 Front cantilever 1 (mm) H+145
I Rear cantilever (mm) 950
HiLight H4 ARTICULATED TOWBAR
Maximum Technically Permissible Lade Mass (Kg.)
1.300
HiLight H4 ARTIC ULATE DTOWBAR
Maximum empty weight (Kg.)
Minimum empty weight (Kg.)
T ype A ( mm) E (mm) H ( mm)
AK160 HEAD Ø50 3233,5 1473,5 2283,5
DIN EYE Ø 40 3290 1530 2340
UK EYE Ø 30 3327 1567 2377
UK EYE Ø 40 3287,5 1527,5 2337,5
UK EYE Ø 50,8 3304 1544 2354
ITA EYE Ø 45 3285 1525 2335
FRA EYE Ø 68 3259,5 1499,5 2309,5
NATO EYE Ø 76 3288 1528 2338
COUPLING SYSTEM
D
I
C
G
Isometric view (1:30)
F
1
F
H
H1
B
A
A1
E
E1
TOTAL
1230
TOTAL
1096,5
Weight on axle
1144
Weight on axle
1020
Weight on towing eye
85
Weight on towing eye
76.5
