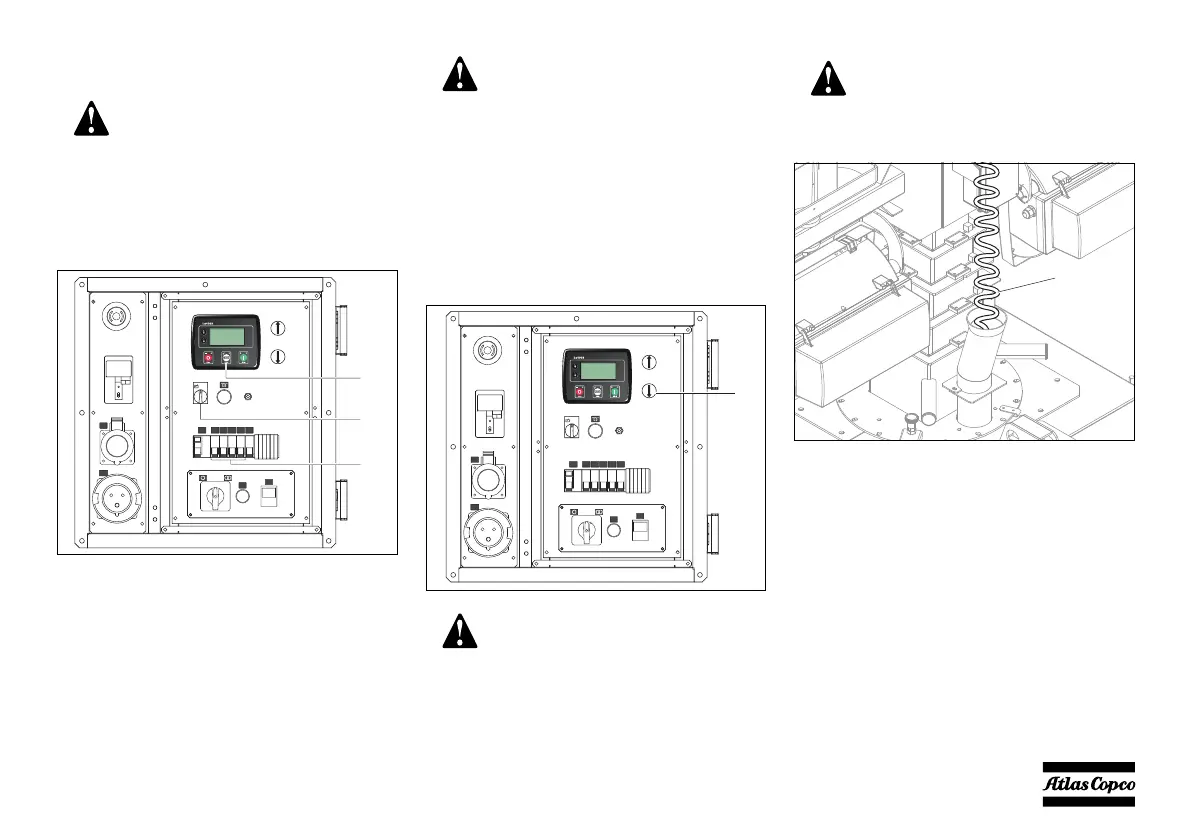

4.2.6.3 Switching on/off the floodlights
automatically
1. Make sure the mast is up and in the desired
operating position. See section 4.2.4.
2. Put the starter switch S20 in position REMOTE
(1).
3. Switch ON the 4 circuit breakers (Q2-5) (2).
4. Push the AUTO button on the Lc1003™ module
(3) to activate AUTO mode.
The floodlights will ignite/switch off
automatically depending on the luminosity
(optional Photocell) or a set time schedule.
4.2.7 Lowering the mast
1. If the floodlights are not to be used again, lower
the mast using the DOWN button on the control
panel (1).
Only applicable with timer or
optional “Photocell”.
Q2 Q3 Q4 Q5Q1
40A/30mA
Q6
X1
X2
0
1
P8
GE
ON
Q1 Q2 Q3 Q4 Q5 Q6
2
1
3
When the light tower is connected to
the mains (“External power input
(230 VAC), with battery charger”
option, S10 in position 2) all lights
will ignite at the same time, as soon
as circuit breakers Q2-Q5 are
switched ON.
Mind your head while lowering the
mast!
Q2 Q3 Q4 Q5Q1
40A/30mA
Q6
X1
X2
0
1
P8
GE
ON
Q1 Q2 Q3 Q4 Q5 Q6
1
When lowering the mast, check that
the power cord on the mast (spiral
cable) collapses freely into its holder
and does not become pinched or
tangled!
2
