Atlas Copco HiLight H4 Kd ESF User Manual

- 20 -
Features of the Lc1003™ controller
The dedicated Lc1003™ controller provides unique
features and benefits for light tower application, such
as:
– reliability/functionality: sequence 4 lighting
outputs
– 8 event scheduler: weekly timer
– fuel efficiency: auto lamps shutdown
– user friendly operation
– remote start with photocell as an option

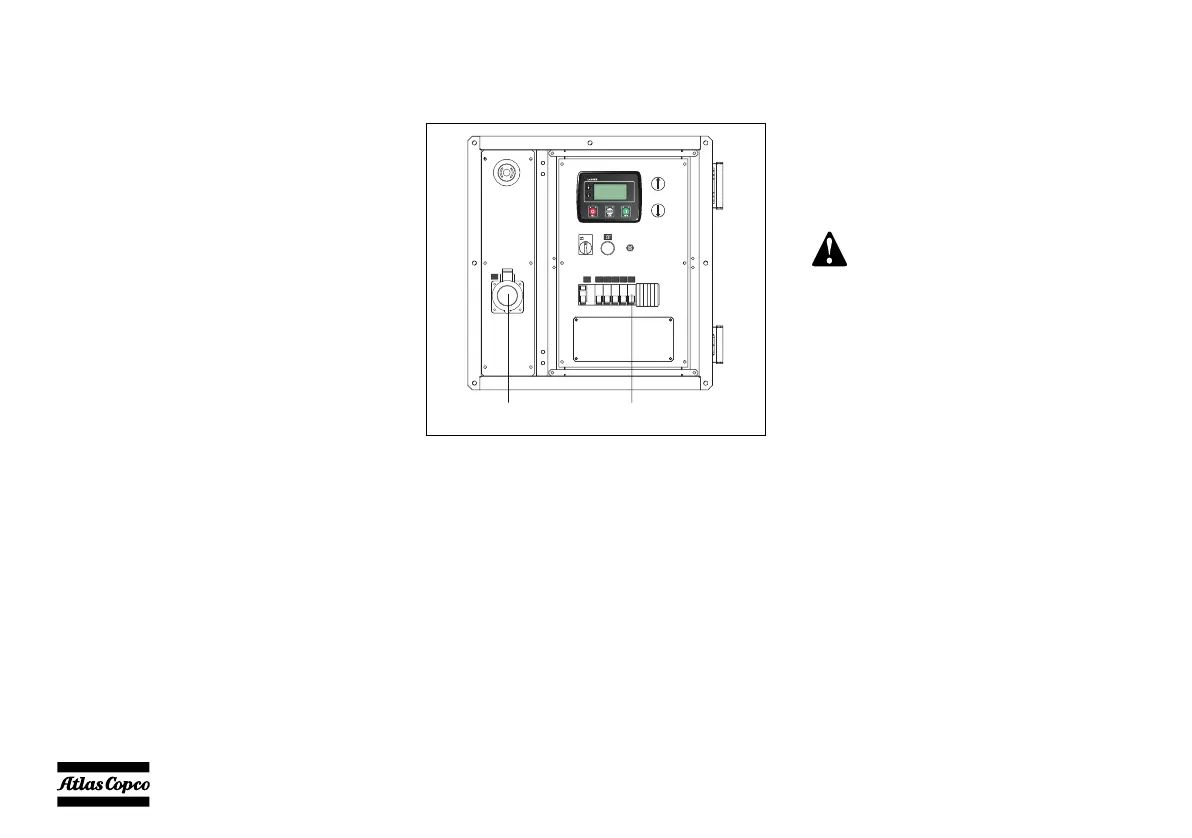

2.4.2 Outlet socket (10 Amps)
A brief description of the outlet socket and circuit
breaker provided on the light tower is given hereafter:
X1 .......1-phase outlet socket (230 V)
Provides phase L, neutral and earthing.
3 different versions are available:
- Socket CE 2P 16A
- Socket RIM 2P 16A
- Socket PIN 2P 16A
Q6 .......Circuit breaker for X1
Interrupts the power supply to X1 when a
short-circuit occurs at the load side, or when
the overcurrent protection (10 A) is
activated. When activated, Q6 interrupts
phase F and the neutral towards X1. It can be
activated again after eliminating the
problem.
Q6X1
Q2 Q3 Q4 Q5Q1
40A/30mA
Q6
0
1
Q1 Q2 Q3 Q4 Q5 Q6
X1
Circuit breaker Q1 does not only
interrupt the power supply towards
X1, but also towards the 4 lamps.
Make sure to switch on circuit
breakers Q1 and Q6 after starting
the light tower when power supply is
done by means of X1.
