Atlas Copco HiLight H4 Kd ESF User Manual

- 36 -

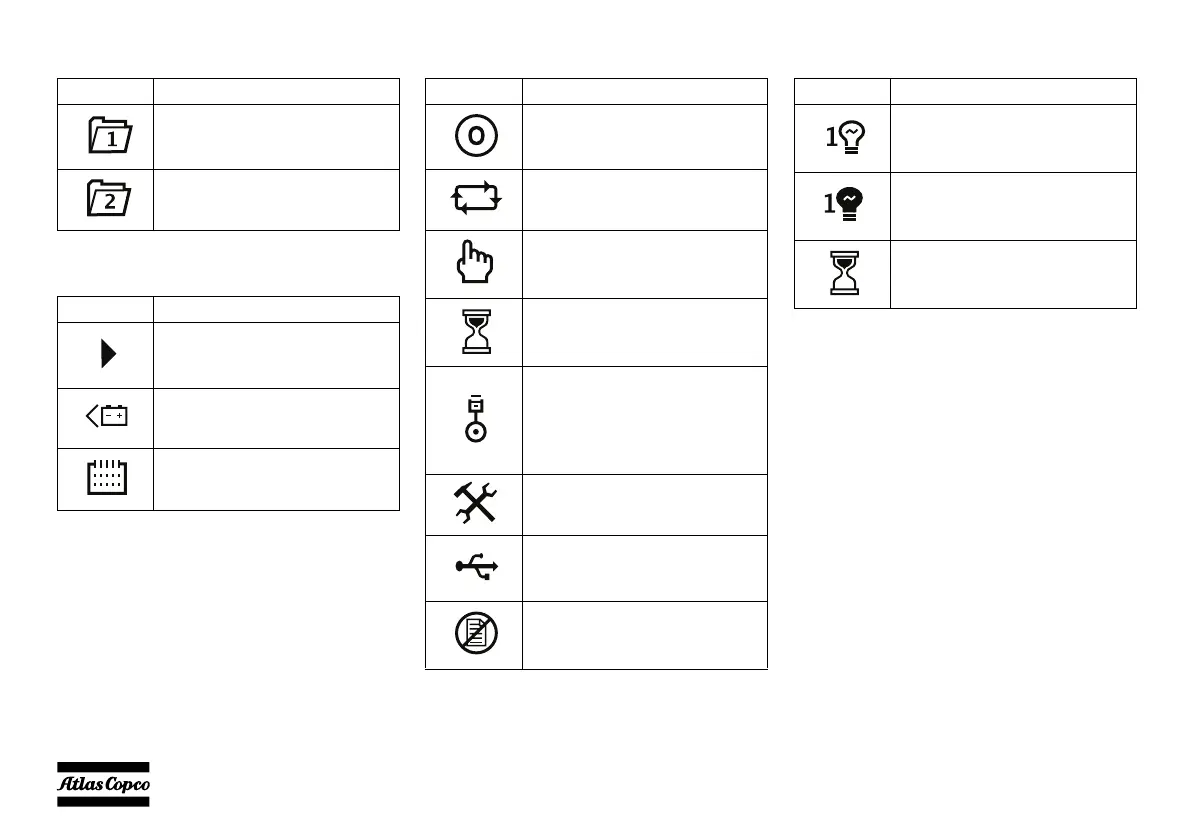

4.4.3.2 Active configuration
4.4.3.3 Front panel editor (FPE) / Auto Run
icons
4.4.3.4 Mode icons 4.4.3.5 Light output icons
4.4.3.6 Alarm icons
To indicate the alarm that is currently active on the
controller, an icon is displayed in the Alarm Icon
section.
For an overview of all controller alarms, see “Solving
controller alarms” on page 56.
Display Description
Appears when the main
configuration is selected.
Appears when the alternative
configuration is selected.
Display Description
Appears when a remote start input
is active
Appears when a low battery run is
active
Appears when a scheduled run is
active
Display Description
Appears when the engine is at rest
and the unit is in stop mode.
Appears when the engine is at rest
and the unit is in auto mode.
Appears when the engine is at rest
and the unit is waiting for a manual
start.
Appears when a timer is active, for
example cranking time, crank rest
etc.
Appears when the engine is
running, and all timers have
expired, either on or off load.
The animation speed is reduced
when running in idle mode.
Appears when the unit is in the
front panel editor.
Appears when a USB connection is
made to the controller.
Appears if either the configuration
file or engine file becomes
corrupted.
Display Description
Appears when the corresponding
light output has been configured
and is not active.
Appears when the corresponding
light output has been configured
and is active.
Appears when a timer to delay the
light output activating or de-
activating is in progress
00_00_HiLight H4_EN.book Page 36 Monday, April 18, 2016 2:10 PM
