Atlas Copco HiLight H4 Kd ESF User Manual

- 66 -

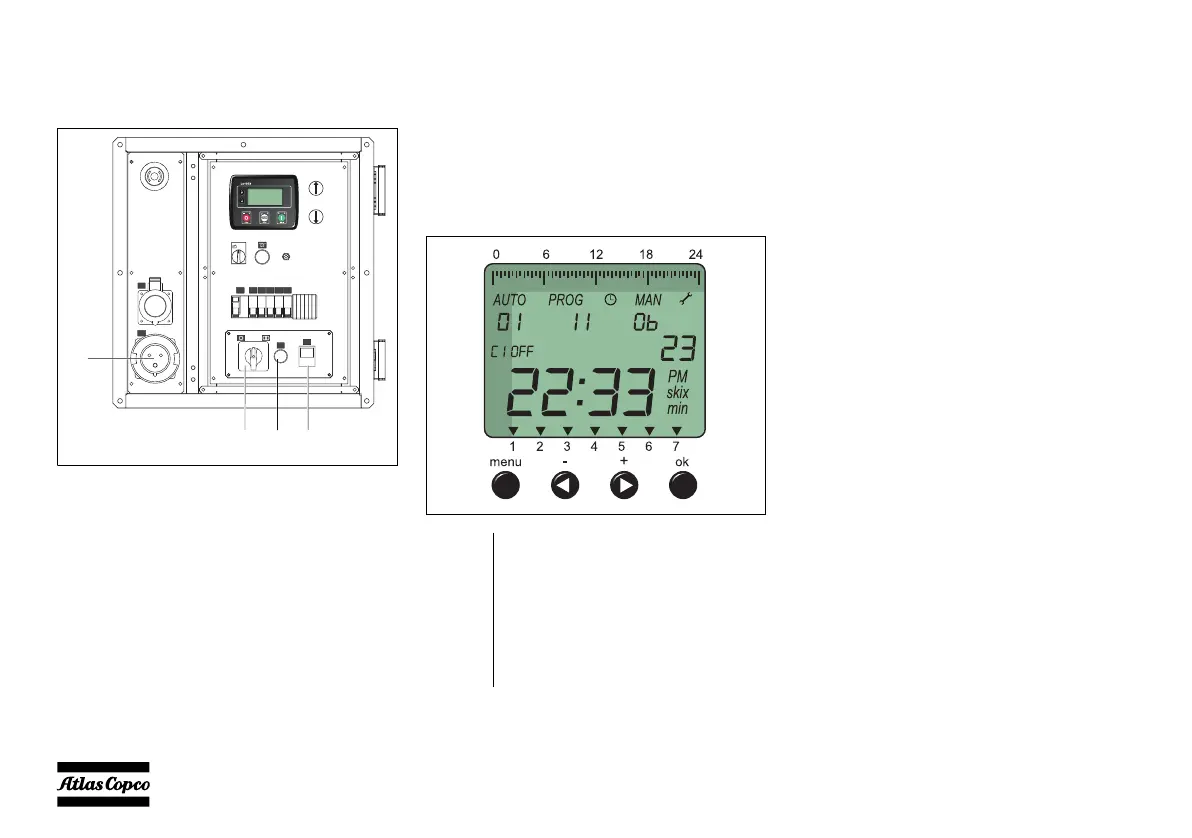

7.4.3 External power input (230 VAC),
with battery charger
Overview
H15 ..... Indicator of Mains available
Illuminated LED indicates that the unit is
running on external mains.
P8........ Timer (scheduler)
Is used for setting a time schedule for the
lamps of the light tower to switch on / off.
S10 .....Input power selector
Position 1: running on Diesel engine
Position 0: neutral position
Position 2: running on external mains
X2 .......Inlet socket for connection to the
mains (32A)
Setting the timer
At first use (or after Reset):
– Choose the language (French, English,...).
– Choose to delete or to keep the default set
program.
– Set the year, day and time.
– Choose the summer/winter time change over
parameters.
Q2 Q3 Q4 Q5Q1
40A/30mA
Q6
X1
X2
0
1
P8
GE
ON
Q1 Q2 Q3 Q4 Q5 Q6
X2
S10 H15 P8
menu Press the menu key to enter the editing
menu.
When in the editing menu, press the
menu key to return to Auto mode,
without saving the last change.
+ / - Navigation and value setting keys
ok Flashing information validation key.
