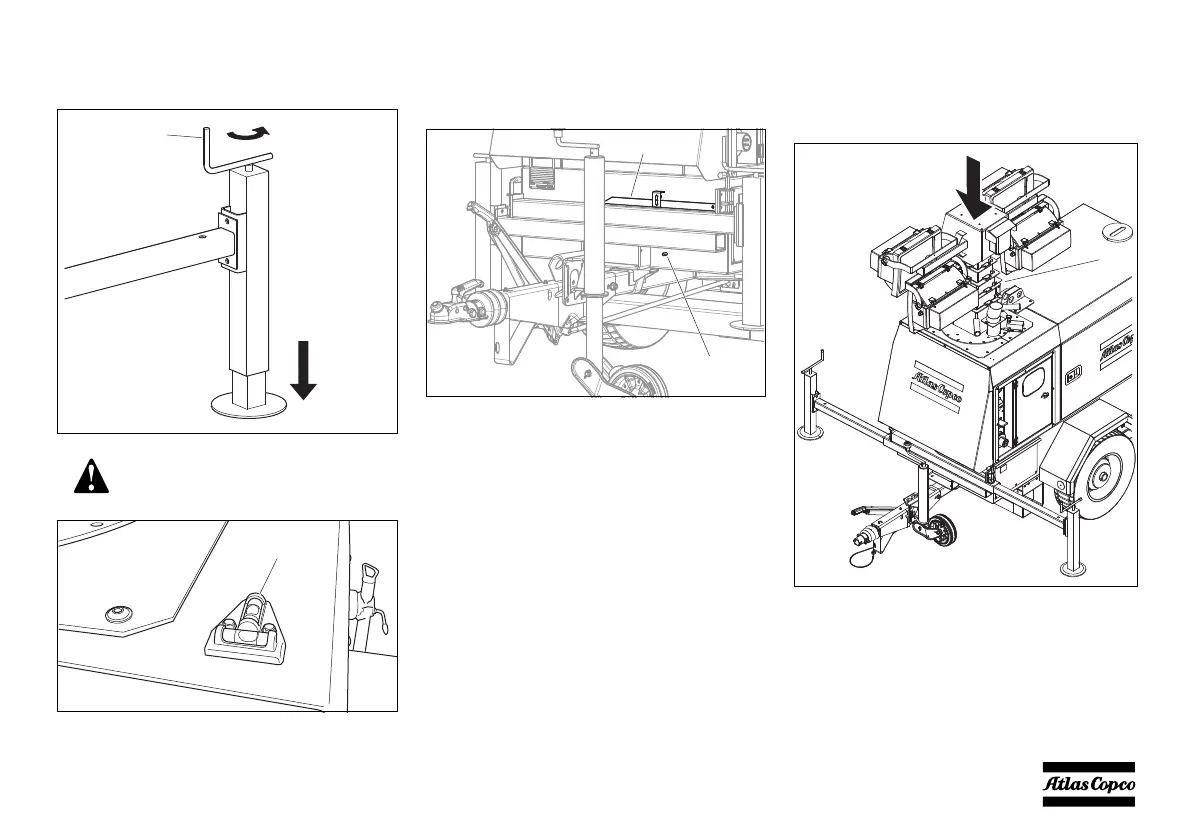

4. Turn the handle (5) at the top of the supporting
feet anticlockwise to lower them and get the light
tower in a level position.
5. Once the light tower is correctly positioned, install
a suitable earthing (e.g. the optional earth pin (7))
and make sure that it is correctly connected to the
light tower (8).
For more detailed installation instructions, see also
“Installation” on page 25.
3.2.3 Positioning for transport
1. Make sure the mast is lowered completely and
turned 90° (1). See also “Lowering the mast” on
page 31.
2. Make sure that the jockey wheel (if available) is
safely fastened by its own locking lever to ensure
that the light tower is still stable once the
stabilizing feet are removed.
Check the levels (6) on top of the
light tower to ensure that the unit is
in a level position.
5
6
7
8
1
