Autonics CX Series User Manual

4 Connection Method
32 © Copyright Reserved Autonics Co., Ltd.

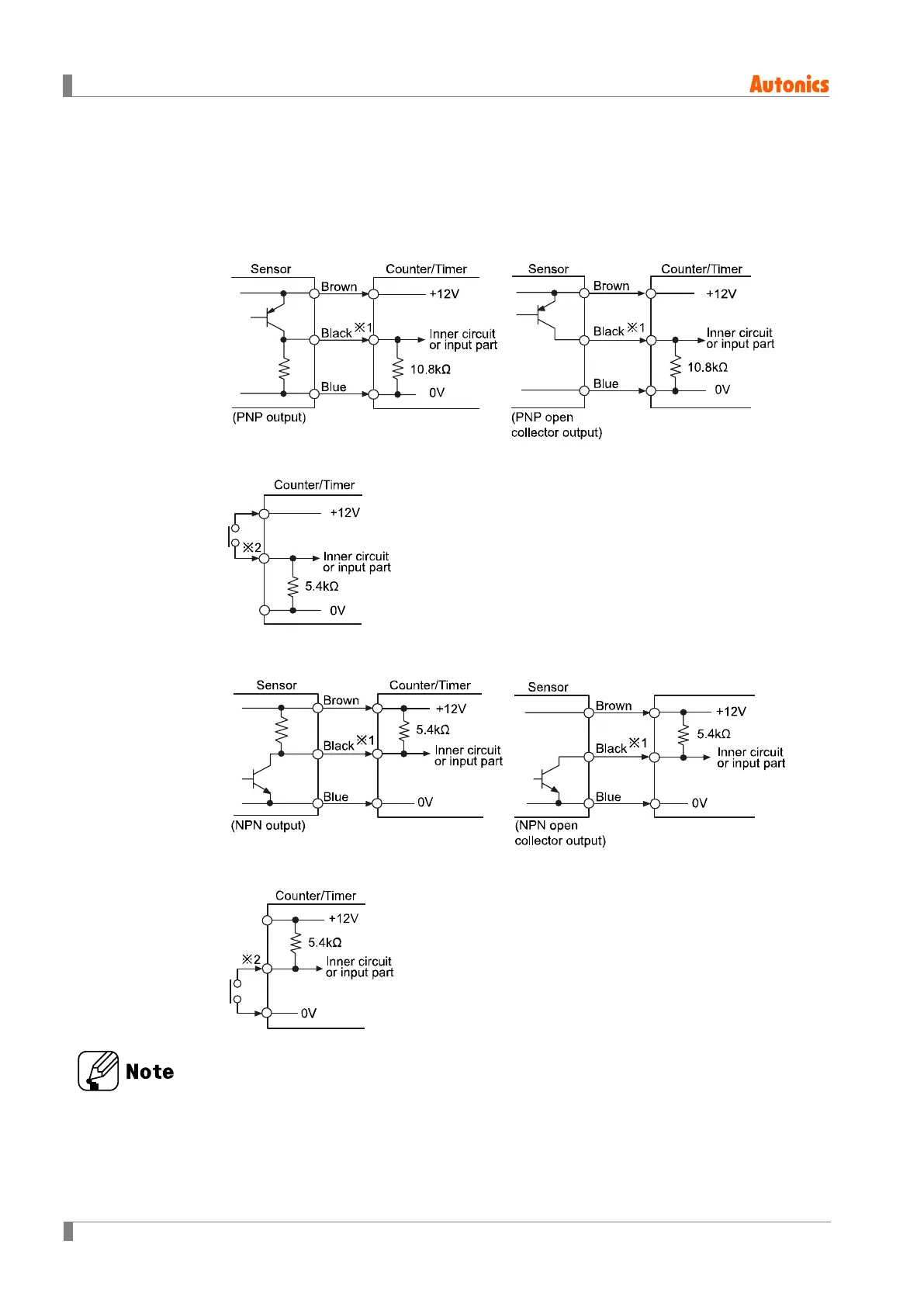

4.2 Input and Output connection
4.2.1 Input connection
(1) Voltage input (PNP)
1) Solid-state input (standard sensor: PNP output type sensor)
2) Contact input
(2) No-voltage input (NPN)
1) Solid-state input (standard sensor: NPN output type sensor)
2) Contact input
※1: CP1, CP2(INHIBIT), SET input part
※2: Set counting speed as 1 or 30cps.
