Autonics CX Series User Manual

6 Timer mode
© Copyright Reserved Autonics Co., Ltd. 67
6.3 Output operation mode
Output
mode

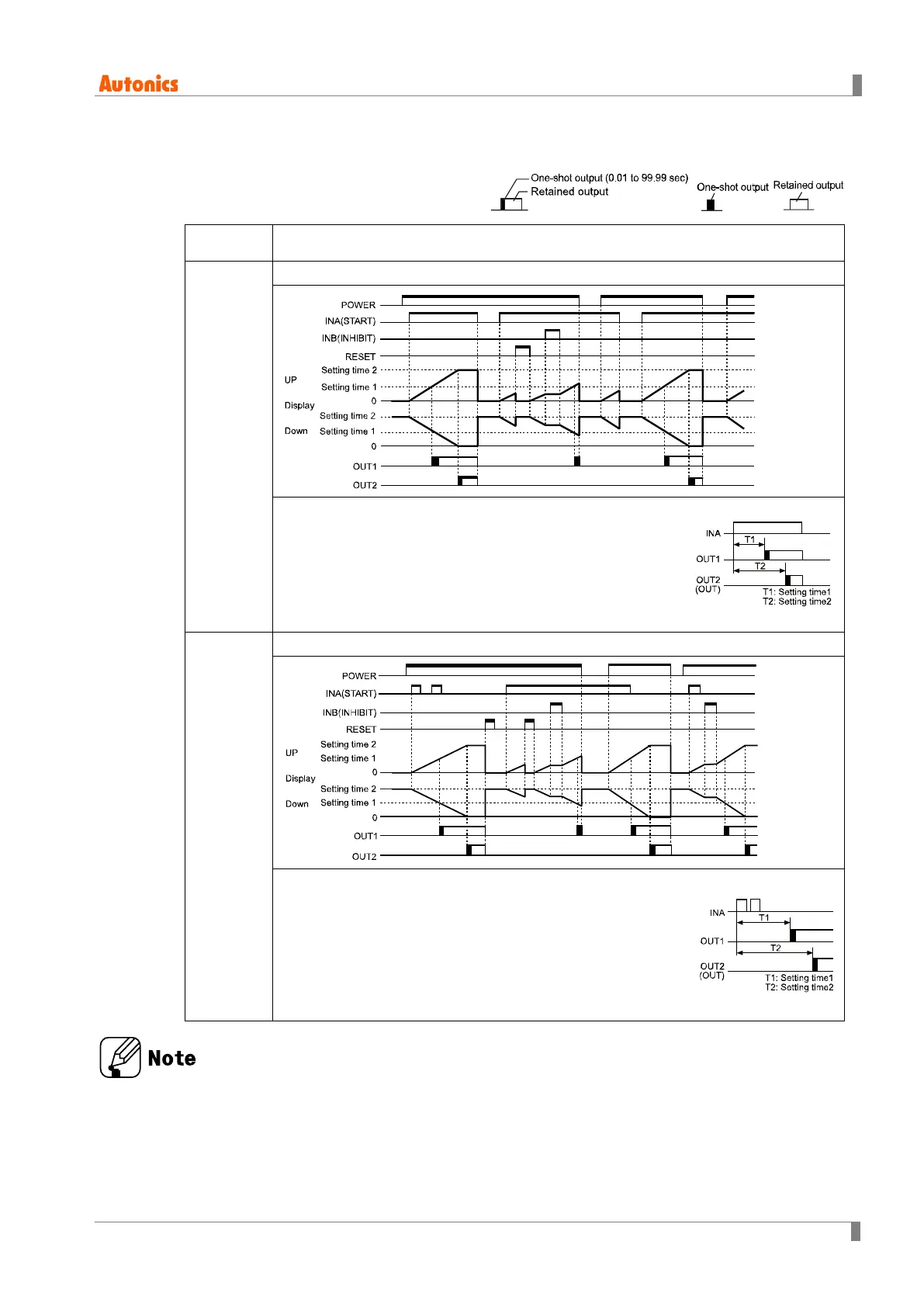

Time chart
OND
[OND]
Signal ON Delay (Power RESET)
1)Time starts when INA signal turns ON.
2)When INA signal turns OFF, time resets.
3)When INA signal is ON
: Power ON Time Start is operated.
RESET OFF Time Start is operated.
4)Control output operates as retained (Hold) or one-shot
output.
OND.1
[ONd1]
Signal ON Delay 1 (Power RESET)
1)Time starts when INA signal turns ON.
2)When INA signal is ON
: Power ON Time Start is operated.
RESET OFF Time Start is operated.
3)Control output operates as retained (Hold) or one-shot
output.
4)Only first INA input signal is valid in case INA input signal is
repeatedly applied.
※Power RESET: There is no memory protection. (resets the display value when power is off)
※Power Hold: There is memory protection. (memorizes the display value at the moment of
power off, indicates the memorized display value when power is resupplied.)
