Autonics CX Series User Manual

5 Counter mode
© Copyright Reserved Autonics Co., Ltd. 45

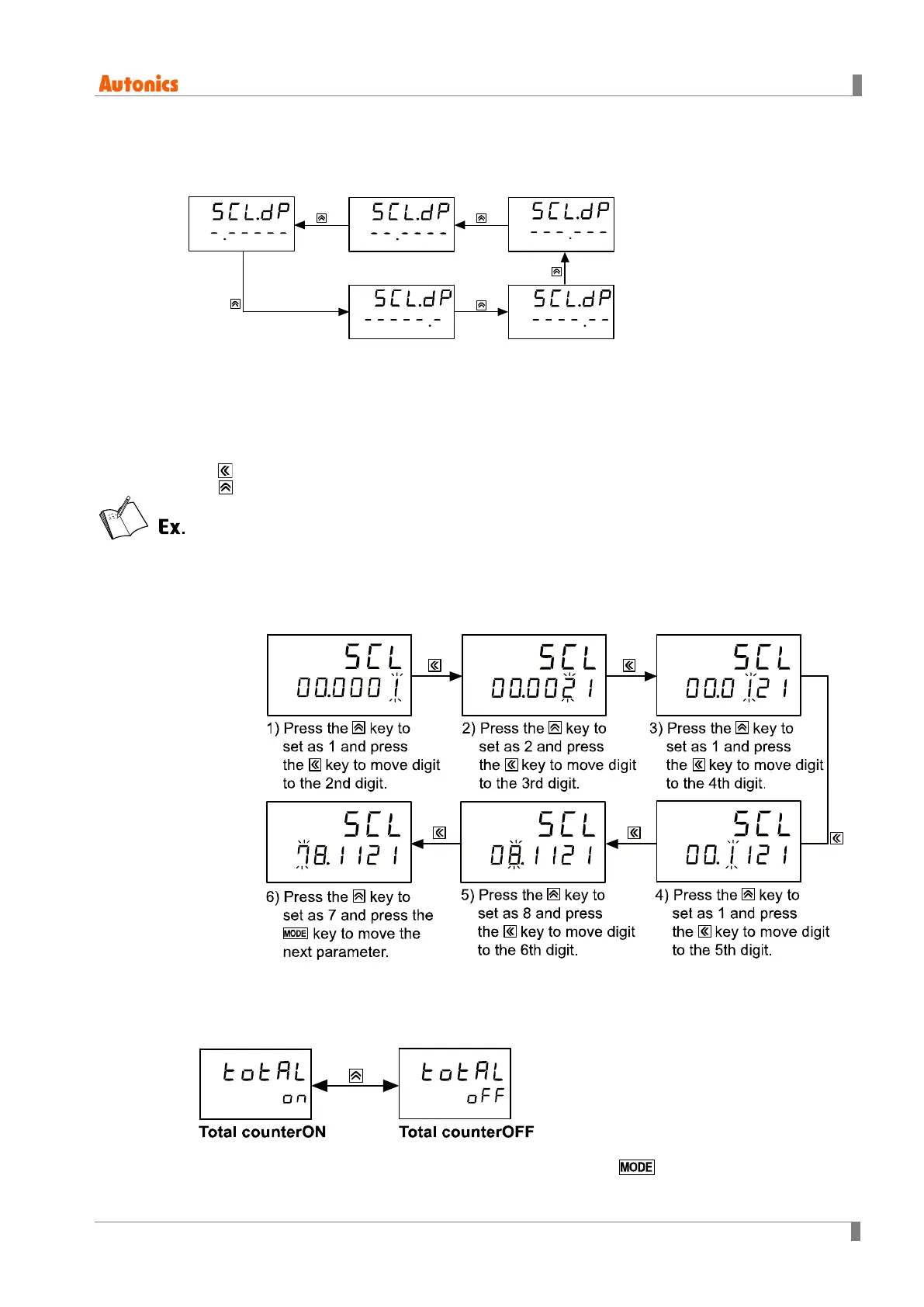

5.2.11 Prescale decimal point
Set decimal point of prescale value.
※Decimal point of prescale should not set smaller than decimal point [DP].
5.2.12 Prescale value
Set the prescale value of counter counting value.
 key: Moves the setting digit of prescale value.
 key: Changes the flashing digit value.
※When setting prescale value as 78.1121,
① Prescale decimal point position
Set decimal point of prescale referring to [5.2.11 prescale decimal point].
② Prescale value setting
5.2.13 TOTAL Counter
Set TOTAL counter operation ON/OFF.
※In case of TOTAL counter OFF and at RUN mode, press the key and it changes to SV
display mode.
