Autonics CX Series User Manual

5 Counter mode
© Copyright Reserved Autonics Co., Ltd. 37
※When input mode is DN, DN-1, DN-2, or DN-3, start point [START] parameter does not
appear.
※When total count function is ON, start point [START] parameter does not appear.
(This is for the voltage input(PNP)/no-voltage input(NPN) selectable model (CX6□-□□).)
※When output mode is F, N, S, T, or D, OUT2 output time dose not appear. (fixed as HOLD)
※When output mode is S, T, or D, OUT1 output time does not appear.
※Even though entering RUN mode and function setting mode, it operates counter counting and
output control.
※When changing operation setting value at function setting mode, all output turn OFF and it is
reset when it returns to RUN mode.

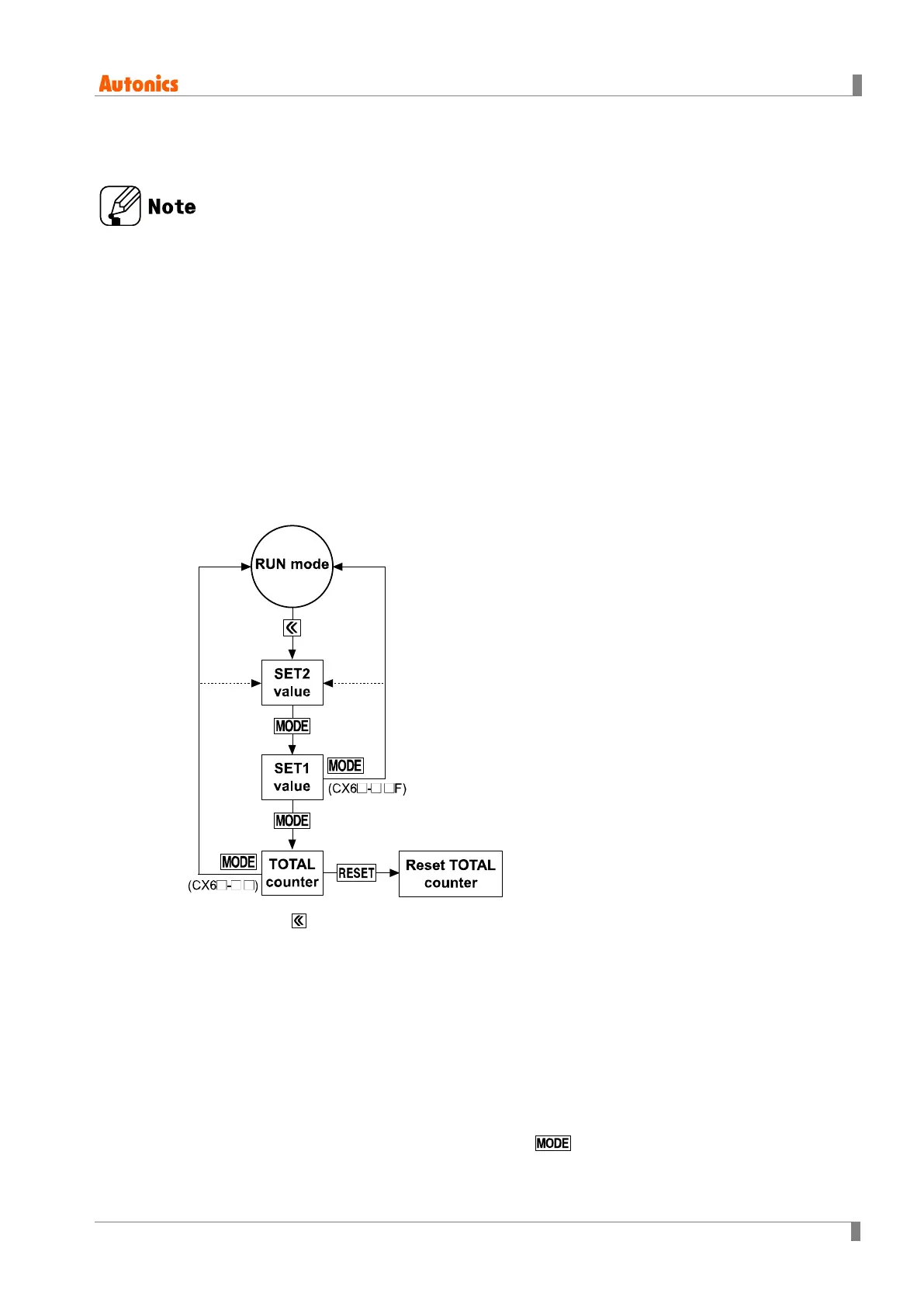

5.1.3 Changing SV mode
 Press the key to enter changing SV mode in RUN mode.
 When input signal is ON during changing SV, it operates counting and output control.
It is available to set SV as '0' and the dedicated output for SV '0' occurs.
 There are output mode which cannot set SV as '0'.
(the setting value display component flashes three times when SV is set as '0')
 When entering changing SV mode, the counting value display component displays the
current value and the setting value display component displays SV.
 When setting 1-stage SV and 2-stage SV, each “SET1”, “SET2” indicator turns ON.
 In case of 1-stage setting model (CX6□-1P□□), SET2 is displayed as SET and SET1 is
not displayed.
 After setting SV at each parameter, press the key to save SV and it moves next
parameter setting or returns to RUN mode.
