Autonics CX Series User Manual

6 Timer mode
© Copyright Reserved Autonics Co., Ltd. 65
※In case of 1-stage setting model (CX6□-1P□□), it is displayed as OUtT.
※In case of 2-stage setting model (CX6□-2P□□) and FLk1, FLk2, INTG, ONtD output mode,
OUT2 is displayed as OUtT.
※In case of FLK, INT, INt1, OFD, NDF, NFd1 output mode, output time setting does not
appear.
6.2.6 OUT1 output time
In case of 2-stage setting model (CX6□-2P□□) and OND, ONd1, ONd2, ONd3 output mode,
set one-shot output time of control output OUT1. (unit: sec)
※Setting range: 00.01 to 99.99s, HOLD
 key: Moves the setting digit of output time.
 key: Changes the flashing digit value.
※When the number of tens digit flashes, press the key once and HOLDis displayed.
※Press the key to save SV and moves to next parameter.
※In case of 1-stage setting model (CX6□-1P□□), OUT1 dose not appear.

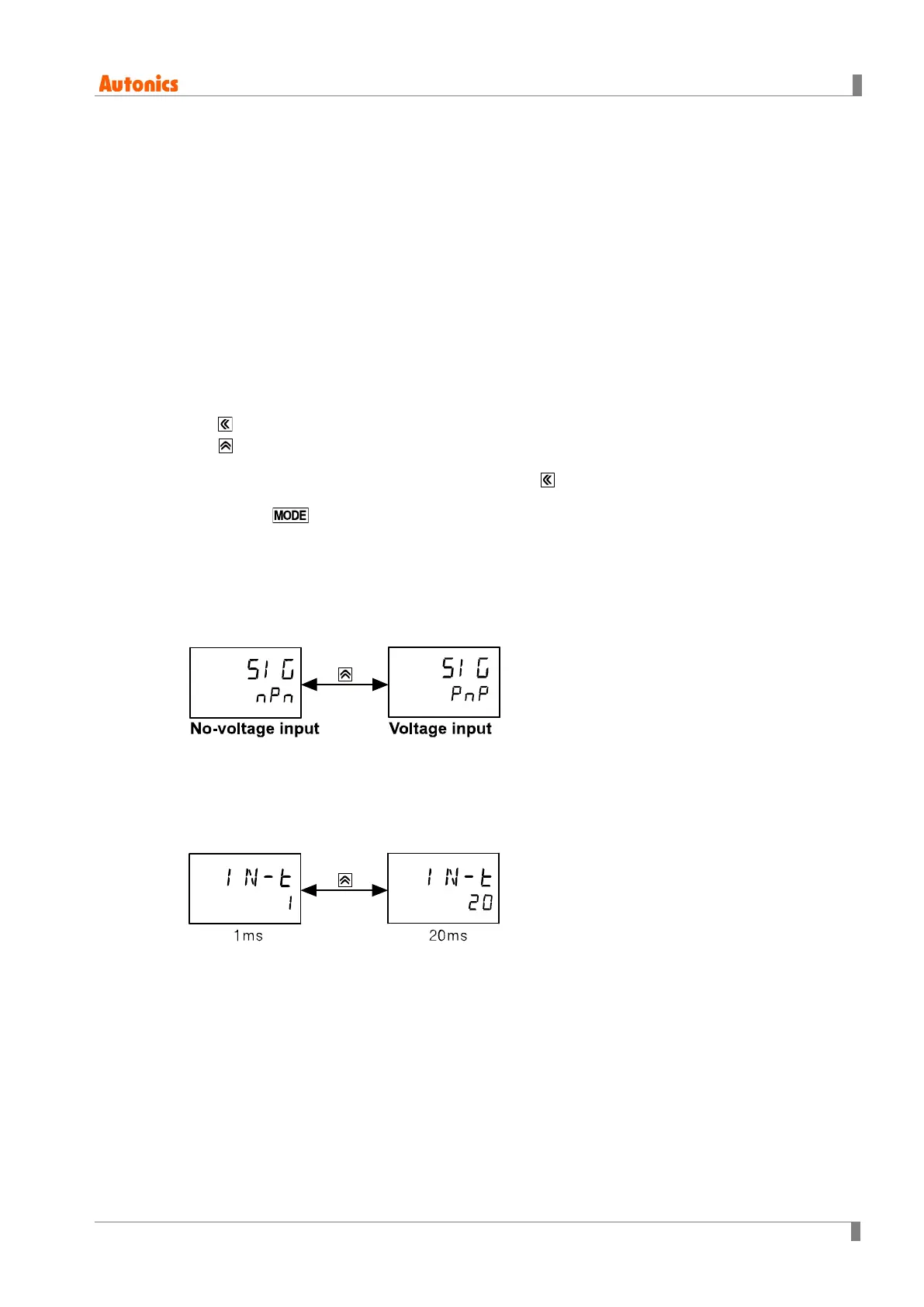

6.2.7 Input logic
Select external signal input logic; NPN or PNP input.
6.2.8 Input signal time
Select min. signal width of the external signal input. (unit: ms)
