5.3 Input mode
Input
mode

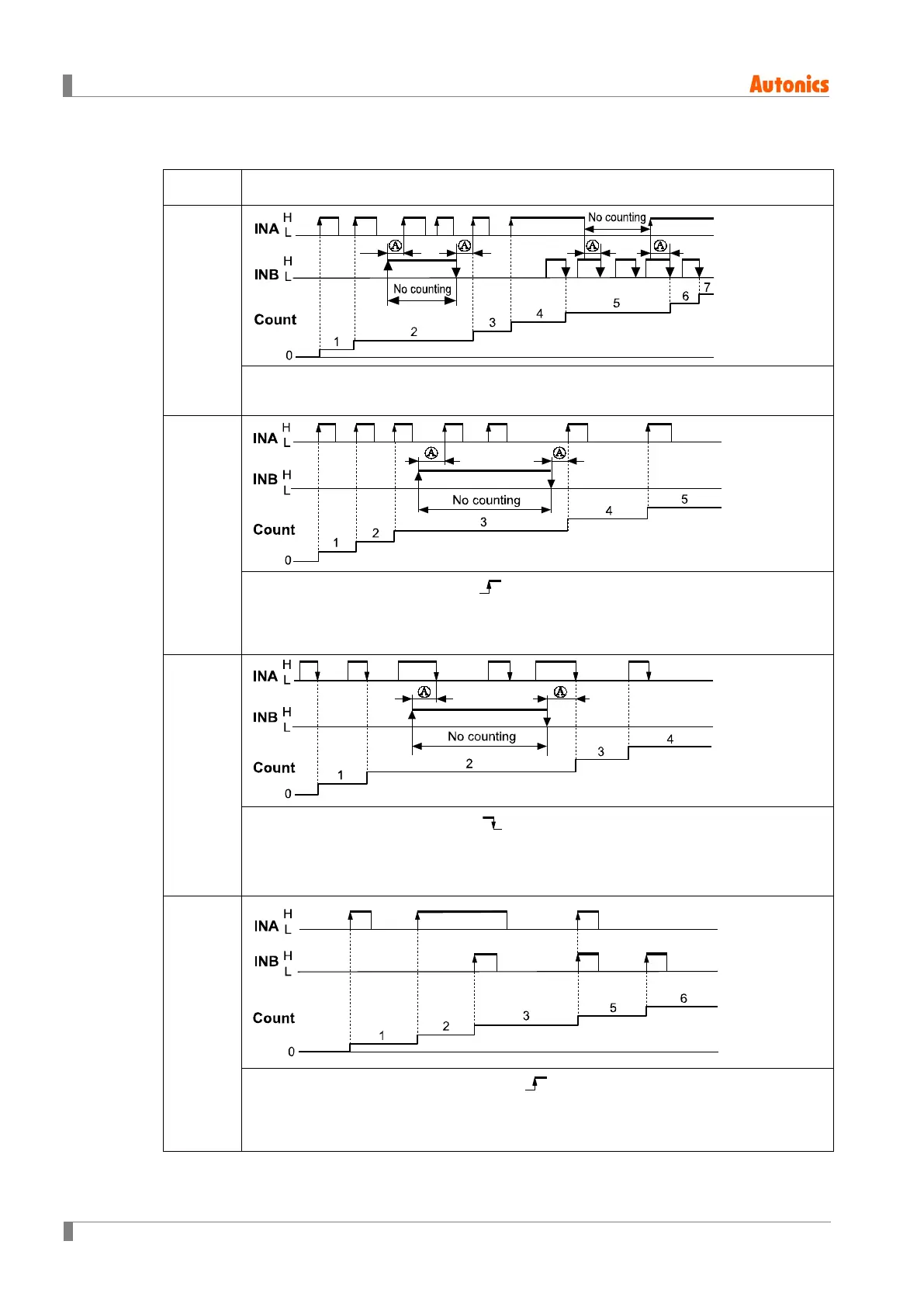

Counting chart
Up
[
UP
]
※When INA is counting input, INB is no counting input.
When INB is counting input, INA is no counting input.
Up-1
[
UP-1
]
※When INA input signal is rising ( ), it counts.
※INA: Counting input
※INB: No counting input
Up-2
[
UP-2
]
※When INA input signal is falling ( ), it counts.
※INA: Counting input
※INB: No counting input
Up-3
[
UP-3
]
※When INA or INB input signal is rising ( ), it counts.
※INA: Counting input
※INB: Counting input
