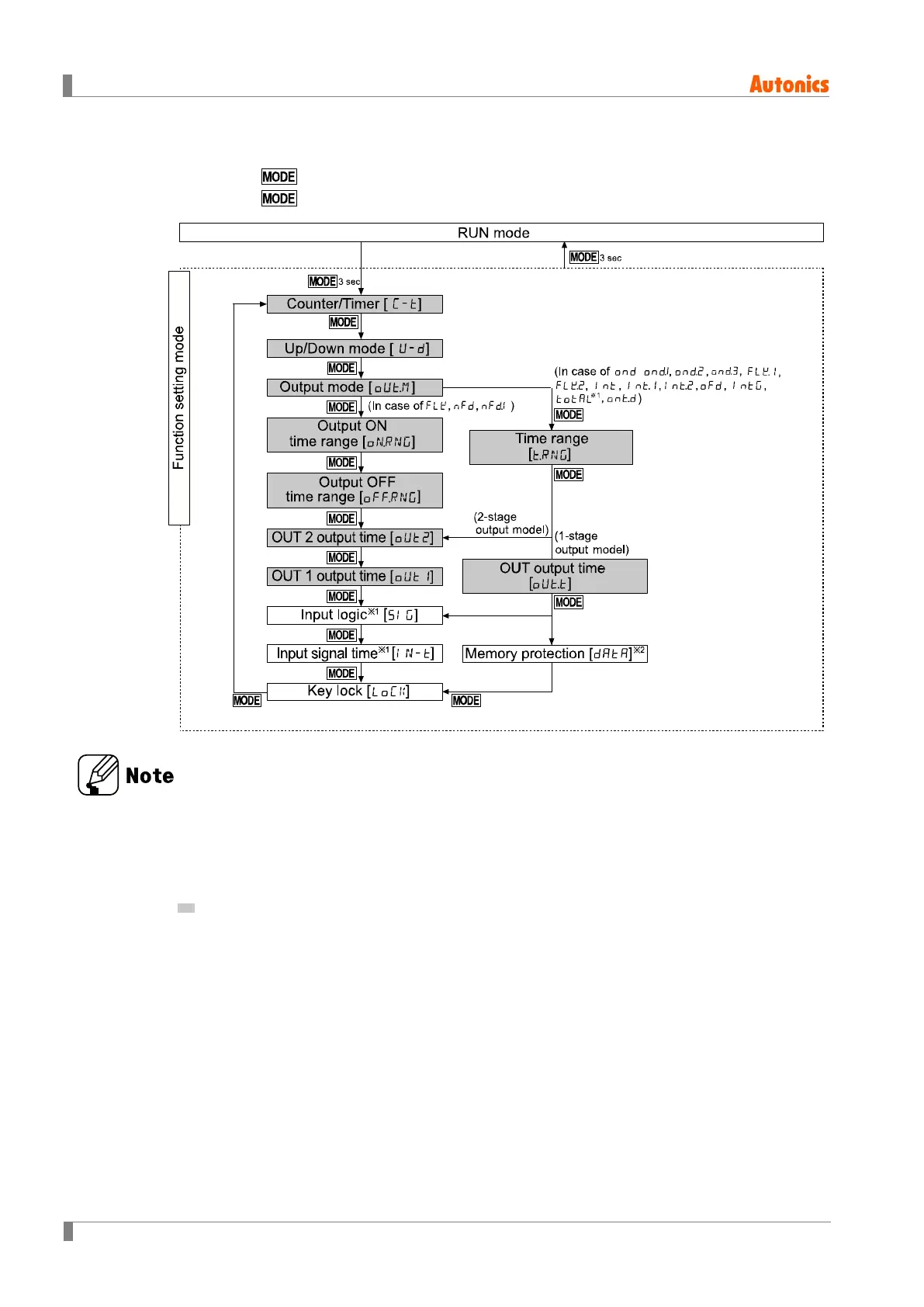

6.1.2 Function setting mode
 Hold the key over 3 sec in RUN mode and it enters function setting mode.
 Hold the key over 3 sec in function setting mode and it returns to RUN mode.
※1: In case of free voltage input model (CX6□-□□F) , these parameters do not appear due to
fixed setting.
※2: Memory protection menu is available when output mode is ONtD.
※ : When changing the setting of shaded parameters, all output turn OFF. When returning
RUN mode, PV is reset.
※When output mode is FLk1, FLk2, INTG, or output mode is OND, ONd1, ONd2, ONd3
for 1-stage setting model (CX6□-1P□□), OUT1 output time does not appear. OUT2 output
time is displayed as OUtT.
※When output mode is FLK, FLk1, FLk2, INT, INt1, OFD, NFD, NFd1, INTG, TOTAL, ONtD,
OUT2 output time does not appear.
※Even though entering RUN mode and function setting mode, it operates timer and output
control.
※When changing operation setting value at function setting mode, all output turn OFF and it is
reset when it returns to RUN mode.
