Panel Overview
Operator's Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-OPERATE/FGB Rev.G, 2016-02-19,
Autronica Fire and Security AS
Page 18

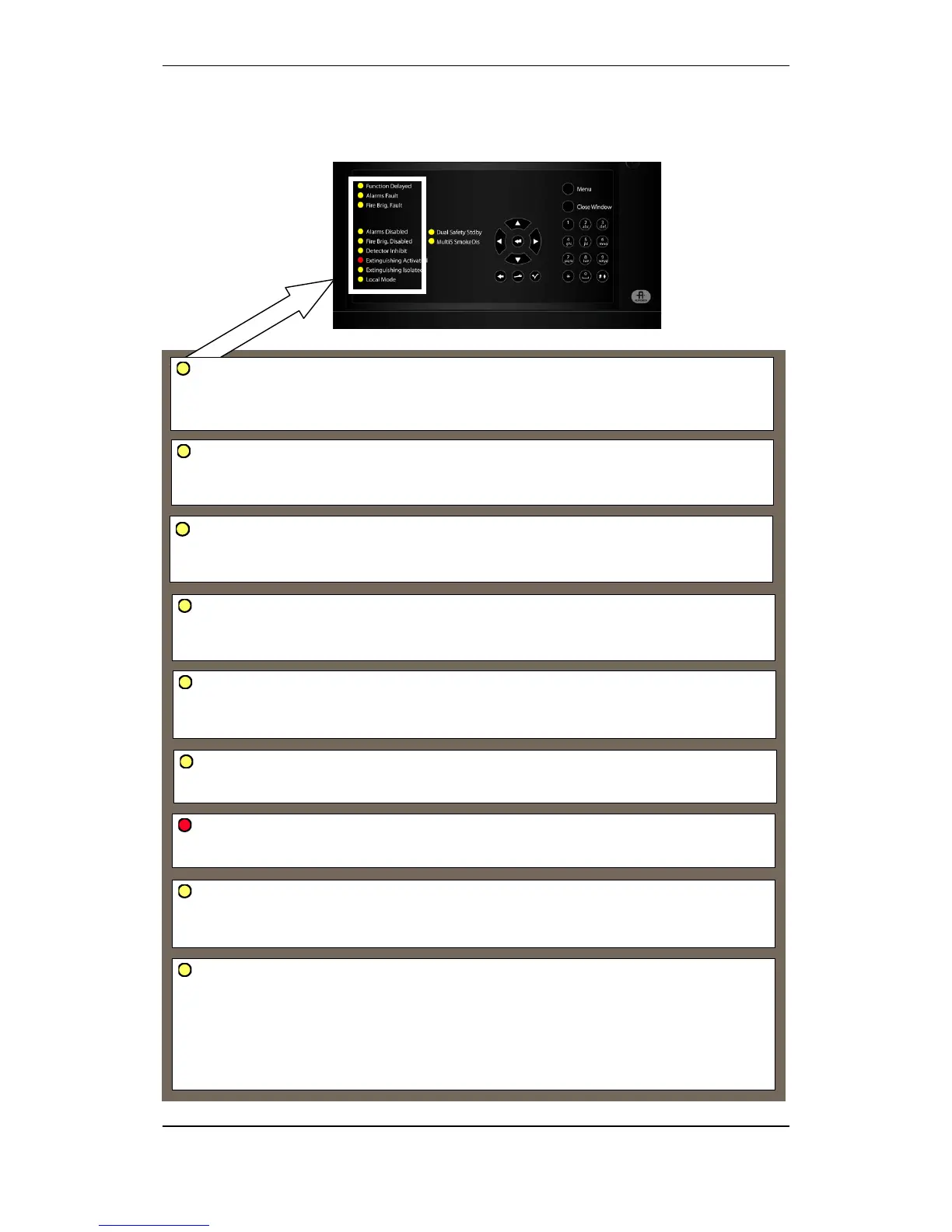

Alarms Fault
Yellow light when a fault is detected on one or more Fire Alarm Devices (FAD). The Fault indicator
will also have a yellow light. Blinking (not accepted) / Steady (accepted).
Fire Brig. Disabled (/ Ext. Output Disabled)
Steady yellow light when the signal to Fire Alarm Routing Equipment (FARE) has been disabled. The
Function Disabled indicator has also a steady yellow light.
Fire Brig. Fault (/ Ext. Output Fault)
Yellow light when a fault is detected on Fire Alarm Routing Equipment (FARE). The Fault indicator
will also have a yellow light. Blinking (not accepted) / Steady (accepted).
Alarms Disabled
Steady yellow light when one or more Fire Alarm Devices are disabled. The Function Disabled
indicator has also a steady yellow light.
Detector Inhibit
Steady yellow light if any points are inhibited.
Extinguishing Activated
Steady red light if the extinguishing media is confirmed released.
Extinguishing Isolated
Steady yellow light if the FIELD OVERRIDE SWITCH extinguishing media is overridden.
The Function Disabled will also turn ON.
Local Mode
Blinking yellow light if contact to the presentation system is lost. The Fault indicator will also blink and
a fault message will be shown.
Both indicators will have a steady yellow light if the fault message is accepted. If a connection has
been lost and is repaired again, a fault message is shown and the fault message and both indicators
will blink until the fault is accepted, on which both indicators will be turned off and the fault will
disappear.
2.7.2 The Operator Section (lower left section)
Applies to the operator panels BS-420 / BS-430.
Function Delayed
Steady yellow light indicates that Immediate Output Actioning has been disabled (manual operation in
Menu Mode), i.e. a delay period is active for Fire Alarm Devices (FAD) or Fire Alarm Routing
Equipment (FARE). Configurable.
