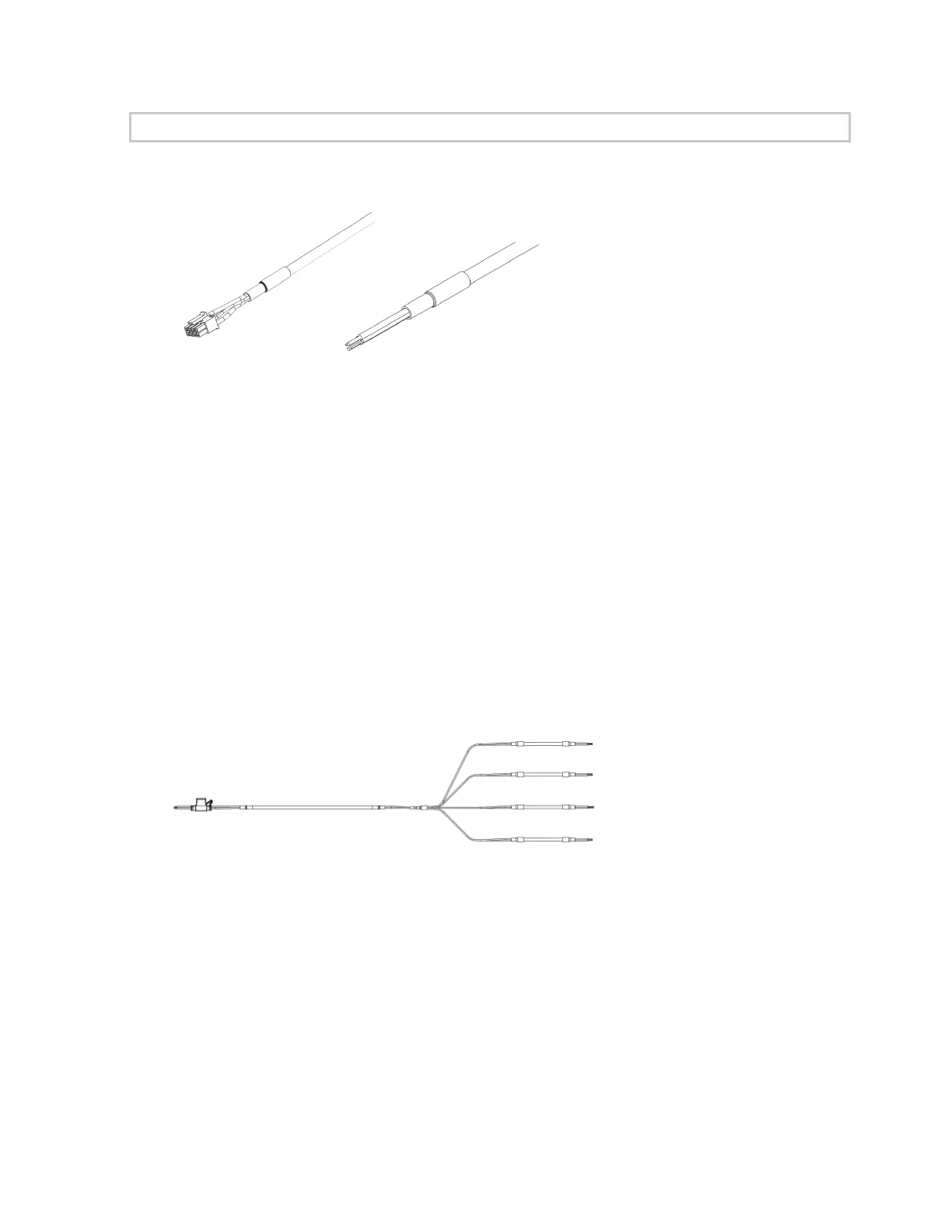

Wiring Harness Assemblies
Two power unit to camera/controller cables SKU 71085
These cables are 18 feet (5.5 m) in length. One end of the cable has a plug-in connector for
the front camera or rear camera controller mount and the other has the following wires:
18 AWG – White
18 AWG – Gray
24 AWG – Green
24 AWG – Violet
Note: This cable contains wires that pass data communication. As such, you should never
extend or apply a splice in this cable at any time. This cable should be shorted to length
instead of using a service loop.
Power unit to vehicle cables SKU 71100
These cables are 12 feet (3.5 m) in length with four leads for each fleet component, and one
for the Cradlepoint router:
18 AWG – Orange – Ignition, 7.5 amp fuse
18 AWG – Black
18 AWG – Red – 12V power, 7.5 amp fuse
