Baxi POWER HT+ Series User Manual

Tab.9 Flue gas sensor
Temperature (in °C) -50 -10 0 40 100 200 250 300
Resistance (in ohms) 1 755765 117521 67650 10569 1377 145 65 34
Tab.10 Outside sensor
Temperature (in °C) -30 -15 -5 0 10 20 30 50
Resistance (in ohms) 13034 5861 3600 2857 1840 1218 827 407
3.3

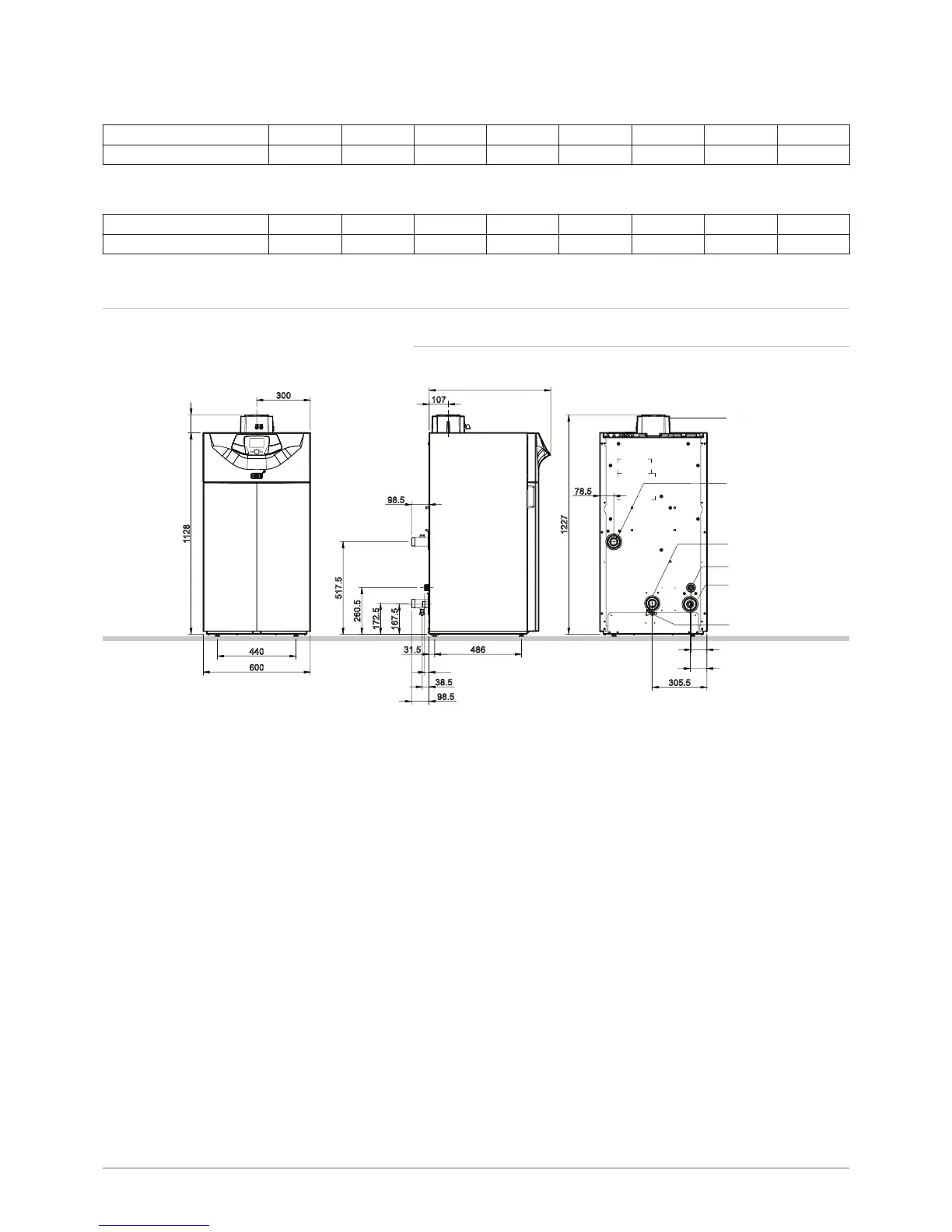

Dimensions and connections
3.3.1 POWER HT+ 1.130 and POWER HT+ 1.150
Fig.2
1
MW-5000716-3
681
107
172.5
260.5
517.5
167.5
486
300
78.5
89
94
305.5
991128
600
440
1227
98.5
38.5
25
98.5
31.5
2
3
4
5
6
MENU
1 Flue gas outlet (110/160 mm)
2 Heating circuit flow (G1"1/2)
3 Gas inlet (G1")
4 Heating circuit return (G1"1/2)
5 Condensate discharge (diameter 32 mm)
6 Drain (1/2”)
3 Technical specifications
16 POWER HT + 7702630 - v02 - 11082018
