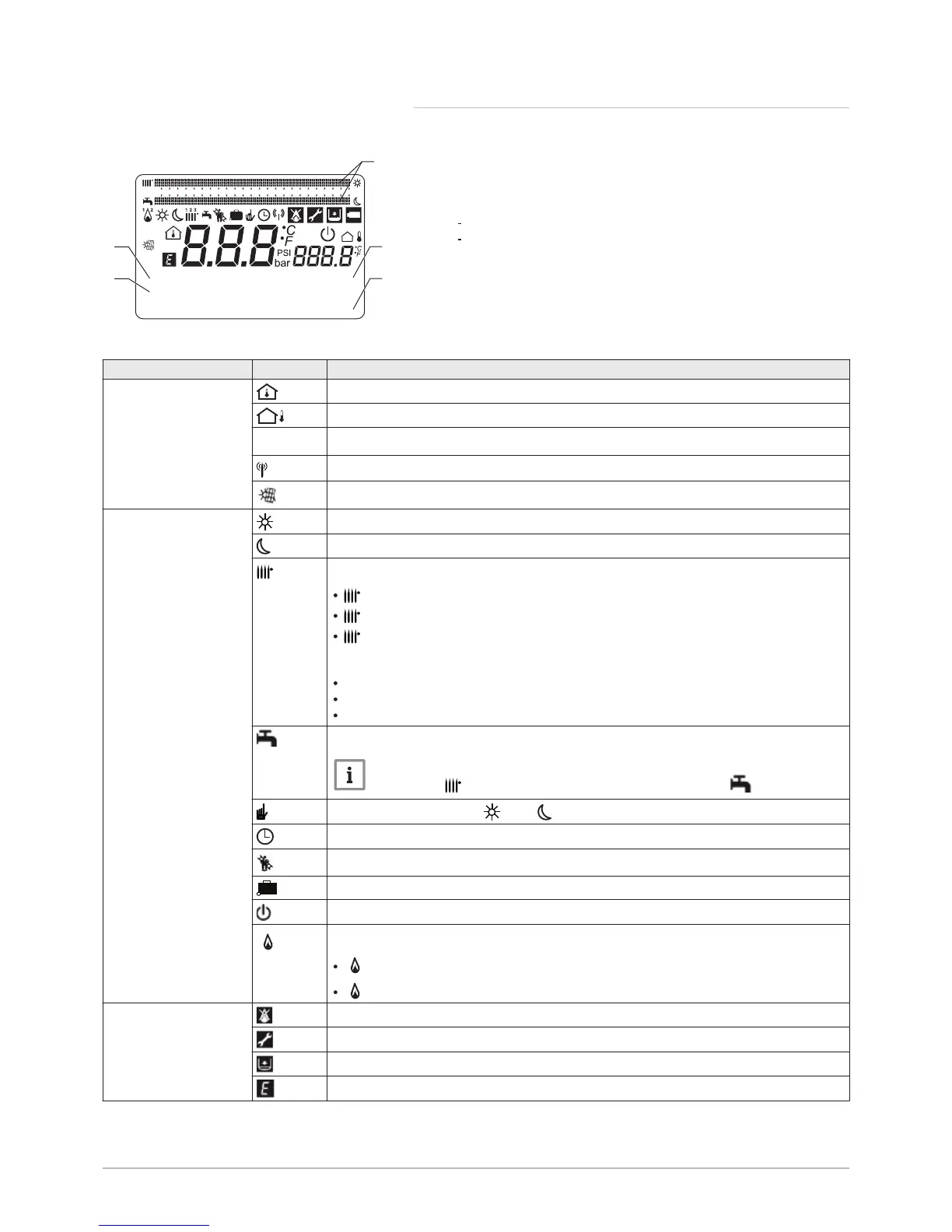

4.4.2 Description of the symbols
1 Date: day, month, year
2 Day of the week
3 Boiler / heating circuit pressure
4 Clock: hours and minutes
5 Operating period indicators in Comfort/Eco mode over 24 hours:
Top line: Heating mode
Bottom line: Domestic hot water mode
Type of information Symbol Description
Information Room temperature (°C)
Outdoor temperature (°C)
°C, °F,
bar, PSI
Temperature and hydraulic pressure units: international system or imperial system.
Data transmission: only when the wireless remote control is connected.
Solar integration available
Operating modes Comfort operating mode: comfort room temperature
Eco operating mode: reduced room temperature
1 2 3
Operating mode: Heating
1 2 3
(1): Zone 1 active
1 2 3
(2): Zone 2 active
1 2 3
(3): Zone 3 active
Symbol displayed:
No symbol: heating circuit not connected
Fixed symbol: heating circuit connected
Flashing symbol: heating requested
Operating mode: Domestic hot water activated
Important
The heating
1 2 3
is off during production of domestic hot water .
Operating mode: Comfort / Eco override mode
Operating mode: Automatic, according to the timer programs
Sweep Function activated
Holidays program function activated
Frost protection mode: the boiler frost protection has been activated
1
2
Burner on:
1
2
(1): Output < 70%
1
2
(2): Output > 70%
error Error: the burner cannot start up
Error: After Sales Service intervention required
Hydraulic pressure too low
Generic error
Fig.16
4
87654321 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
14:13
1.5 bar
18. February 2014
Tuesday
1
2
3
MW-3000006-GB-05
5
