Baxi POWER HT+ Series User Manual

1 Q flow rate (litres/hour)
2 H pressure in millibar (mbar)
3 Operating water flow rate at nominal heat output = 4310 litres/hour
where ∆T = 30 °C
4 Operating water flow rate at nominal heat output = 6460 litres/hour
where ∆T = 20 °C
5 Operating water flow rate at nominal heat output = 8610 litres/hour
where ∆T = 15°C
ΔT Temperature difference between the flow water and the return
water in the boiler
1 Q flow rate (litres/hour)
2 H pressure in millibar (mbar)
3 Operating water flow rate at nominal heat output = 5740 litres/hour
where ∆T = 30°C
4 Operating water flow rate at nominal heat output = 8610 litres/hour
where ∆T = 20°C
5 Operating water flow rate at nominal heat output = 11480 litres/
hour where ∆T = 15°C
ΔT Temperature difference between the flow water and the return
water in the boiler
1 Q flow rate (litres/hour)
2 H pressure in millibar (mbar)
3 Operating water flow rate at nominal heat output = 7180 litres/hour
where ∆T = 30°C
4 Operating water flow rate at nominal heat output = 10770 litres/
hour where ∆T = 20°C
5 Operating water flow rate at nominal heat output = 14350 litres/
hour where ∆T = 15°C
ΔT Temperature difference between the flow water and the return
water in the boiler
5.3
Choice of the location
Before mounting the boiler, decide on the ideal position for mounting,
bearing in mind any Directives and the dimensions of the appliance.

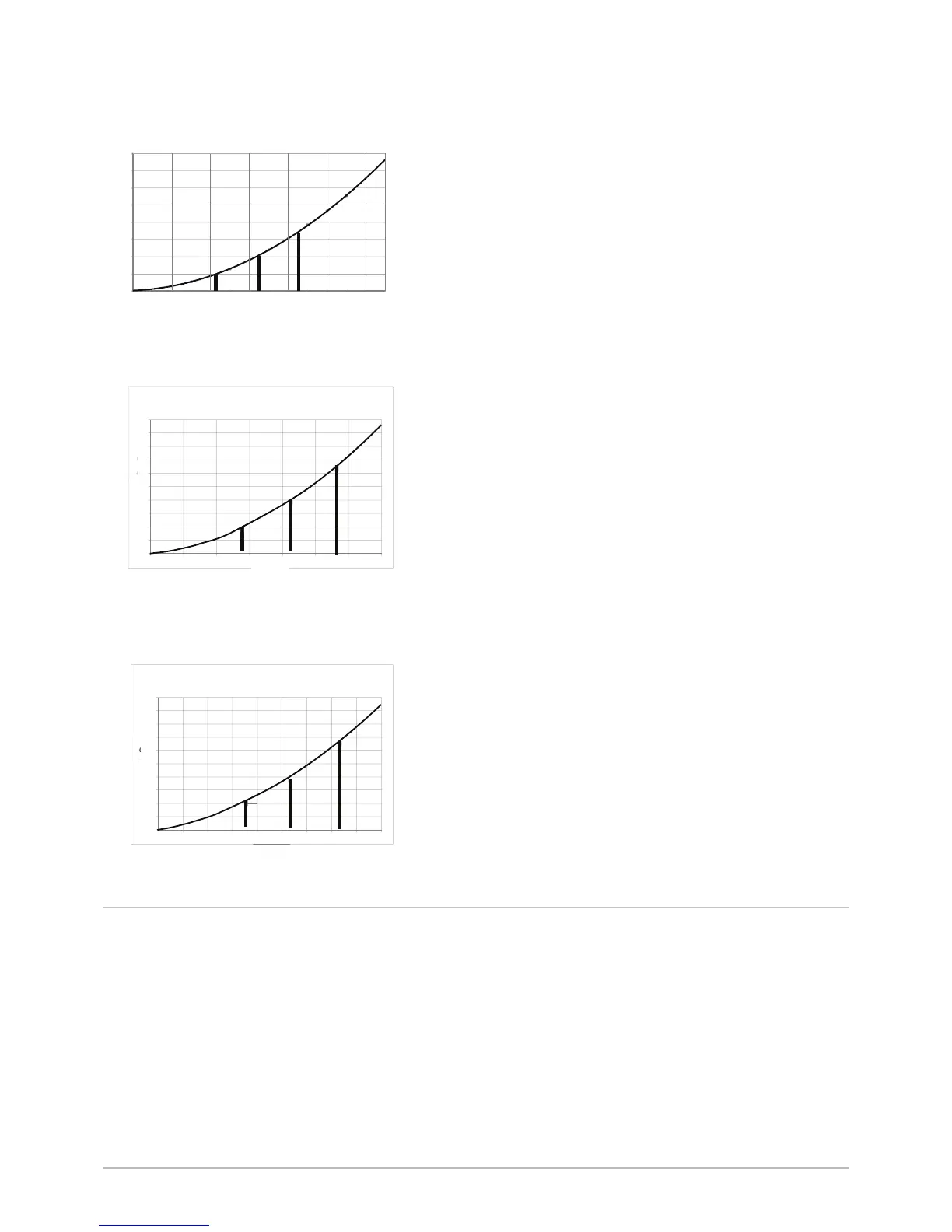

Fig.18 Pressure drops for POWER HT+
1.150
MW-5000724-2
2
0
200
400
600
800
1000
1200
1400
1600
0
2000
4000
6000
8000
10000
12000
1
3
4
5
Fig.19 Pressure drops for POWER HT+
1.200
0
100
200
300
400
500
600
700
800
900
1000
0 2000 4000 6000 8000 10000 12000 14000
1
6
0
7
0
2
3
4
5
MW-5000725-1
Fig.20 Pressure drops for POWER HT+
1.250
MW-5000726-1
-
100
200
300
400
500
600
700
800
900
1 000
0 2000 4000 6000 8000 10000 12000 14000 16000 18000
1
5
6
7
3
4
5
5 Before installation
30 POWER HT + 7702630 - v02 - 11082018
