43
Router
Router settings allow you to specify where to output a line input signal and how much to
adjust its level. For each input, you can:
• Adjust the Analog Input Gain. This adjusts the electronic gain for the input signal.
• Enable or disable the input.
• Adjust the Input Gain. This adjusts the digital gain for the input.
• Route the input to one or more output channels.
• Adjust the gain per output channel.
For each output channel, you can:
• Enable or disable the output channel.
• Adjust the overall output gain, which includes all of the input signals that are routed to
that output channel.
Note: If your appliance is configured for Bridge mode (as opposed to Mono), only output
channel A appears on the Router screen.
To adjust the router settings:

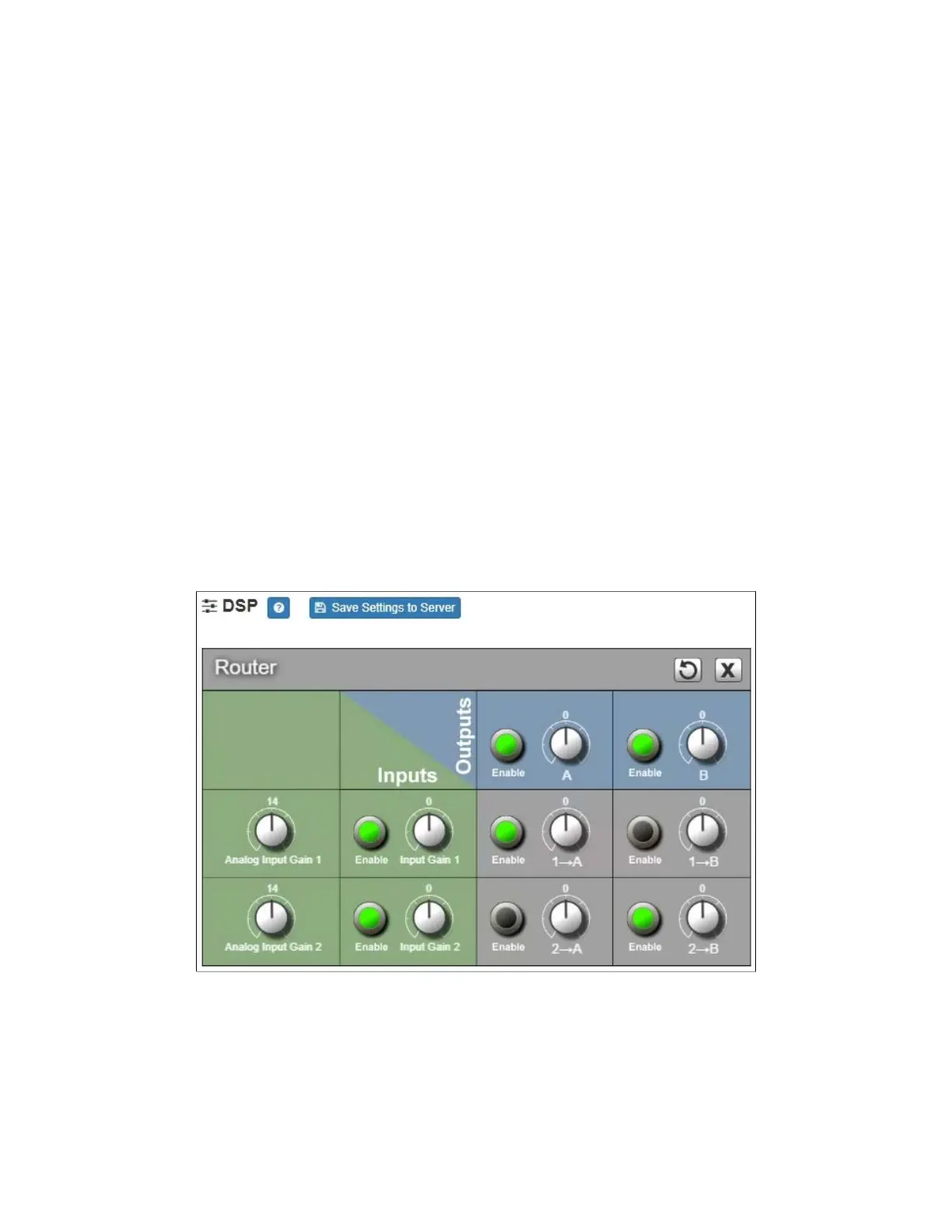

Figure 20. Router
