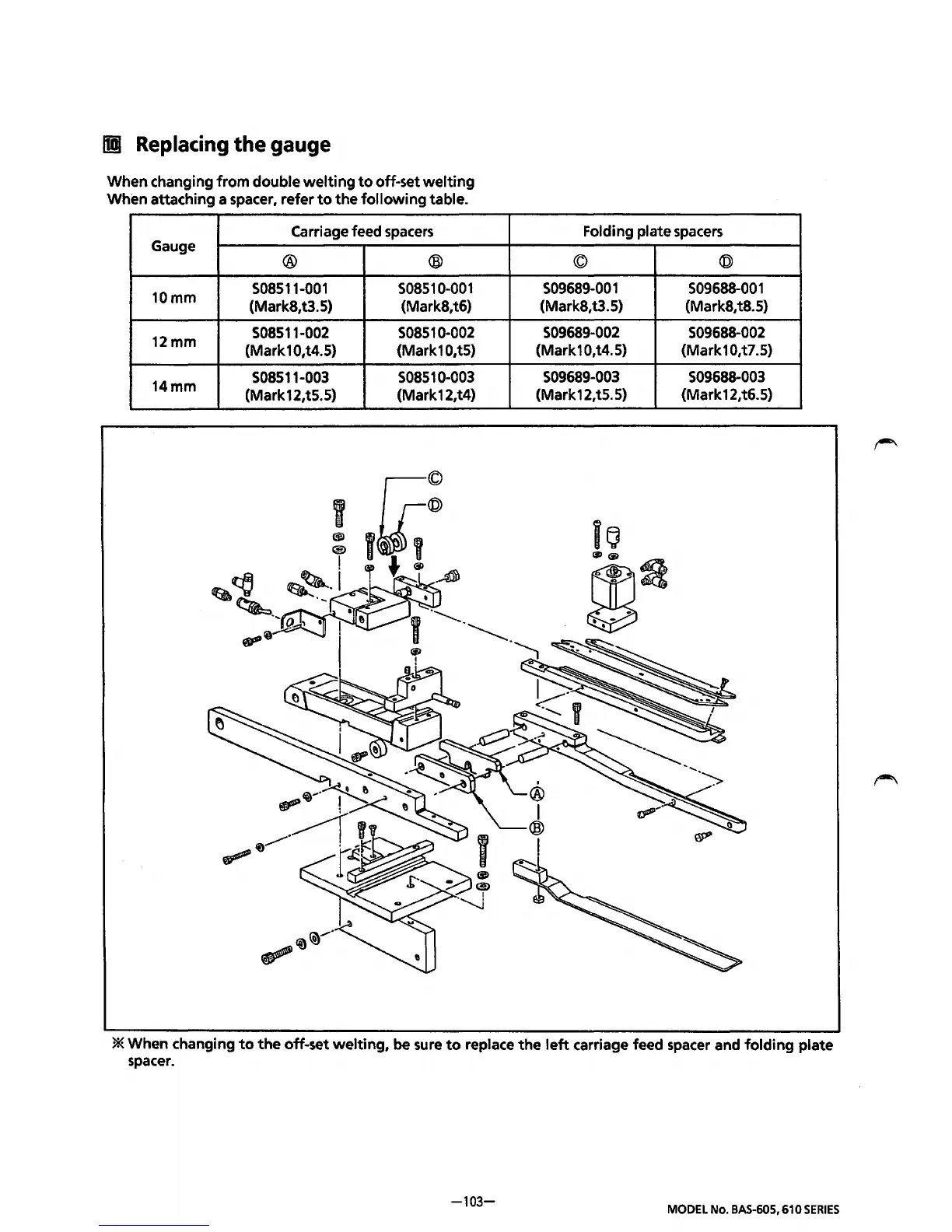

Ill Replacing the gauge
When changing from double welting to off-set welting
When attaching a spacer, refer to the following table.
Carriage feed spacers
Gauge
® ®
10mm
508511-001
508510-001
(Mark8,t3.5)
(Mark8,t6)
12mm
508511-002 508510-002
(Mark10,t4.5)
{Mark 1
0, t5)
14mm
508511-003
508510-003
(Mark12,t5.5)
{Mark 12,t4)
Folding plate spacers
©
@
509689-001 509688-001
(Mark8,t3.5)
(Mark8,t8.5)
509689-002
509688-002
{Mark10,t4.5) (Mark 1 O,t7.5)
509689-003 509688-003
(Mark 12,t5. 5)
(Mark 12,t6.5)
*When changing to the off-set welting, be sure to replace the left carriage feed spacer and folding plate
spacer.
-103-
