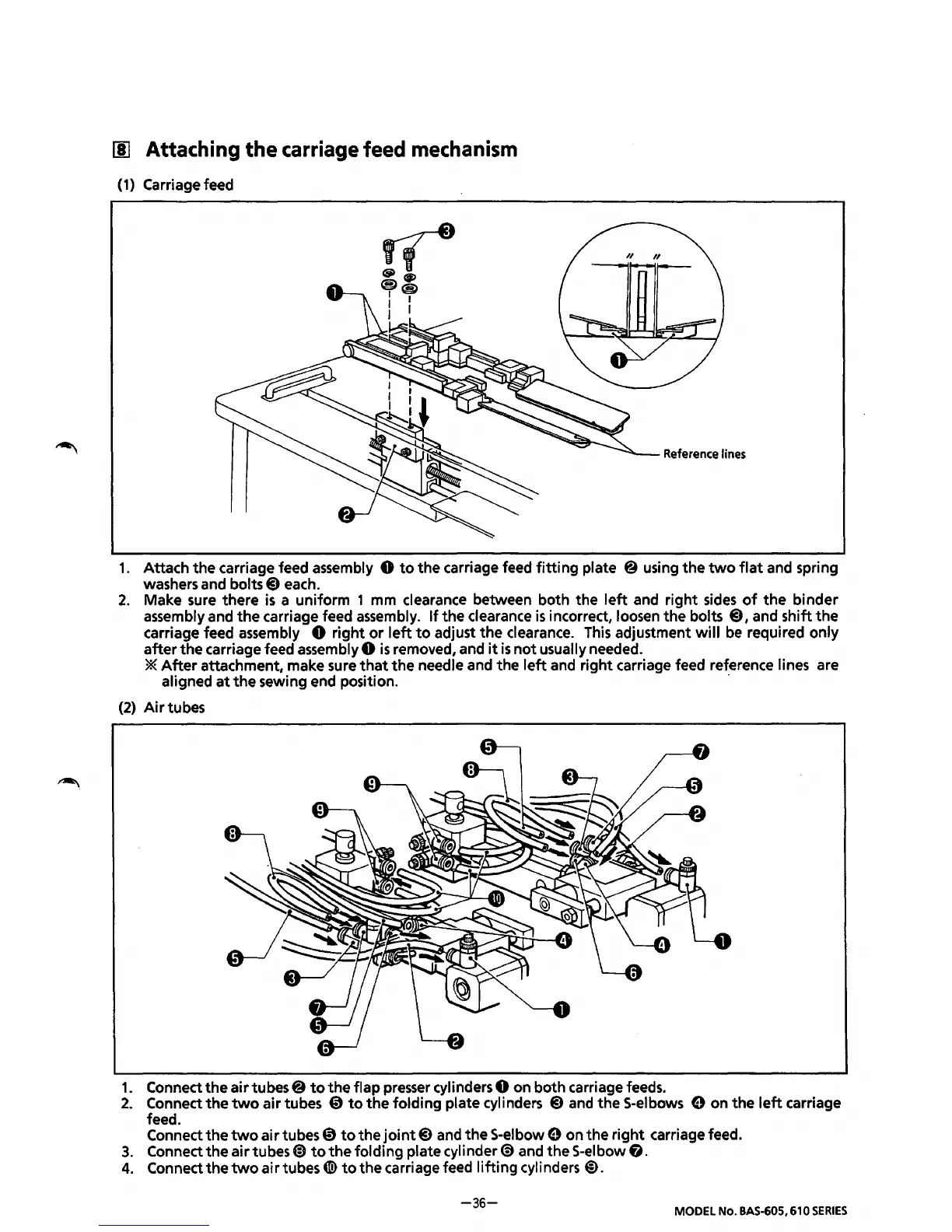

[I] Attaching the carriage feed mechanism
(1) Carriage feed
~
IS\IJ>
~®
I I
I I
l
Reference lines
1. Attach the carriage feed assembly 0 to the carriage feed fitting plate @ using the two flat and spring
washers and
bolts@) each.
2. Make sure there is a uniform 1 mm clearance between both the left and right sides of the binder
assembly and the carriage feed assembly. If the clearance is incorrect, loosen the bolts @),and shift the
carriage feed assembly 0 right or left to adjust the clearance. This adjustment will be required only
after the carriage feed assembly 0 is removed, and it is not usually needed.
*After attachment, make sure that the needle and the left and right carriage feed reference lines are
aligned
at the sewing end position. ·
(2) Air tubes
1. Connect the air tubes@ to the flap presser cylinders 0 on both carriage feeds.
2. Connect the two air tubes @to the folding plate cylinders @) and the S-elbows 9 on the left carriage
feed.
Connect the two air tubes 0 to the joint@) and the S-elbow 9 on the right carriage feed.
3. Connect the air tubes@) to the folding plate cylinder (S) and the 5-elbow 6.
4. Connect the two air tubes 4I!) to the carriage feed lifting cylinders @).
-36-
MODEL No. BAS-605, 610 SERIES
