Brother BAS-605 Series User Manual

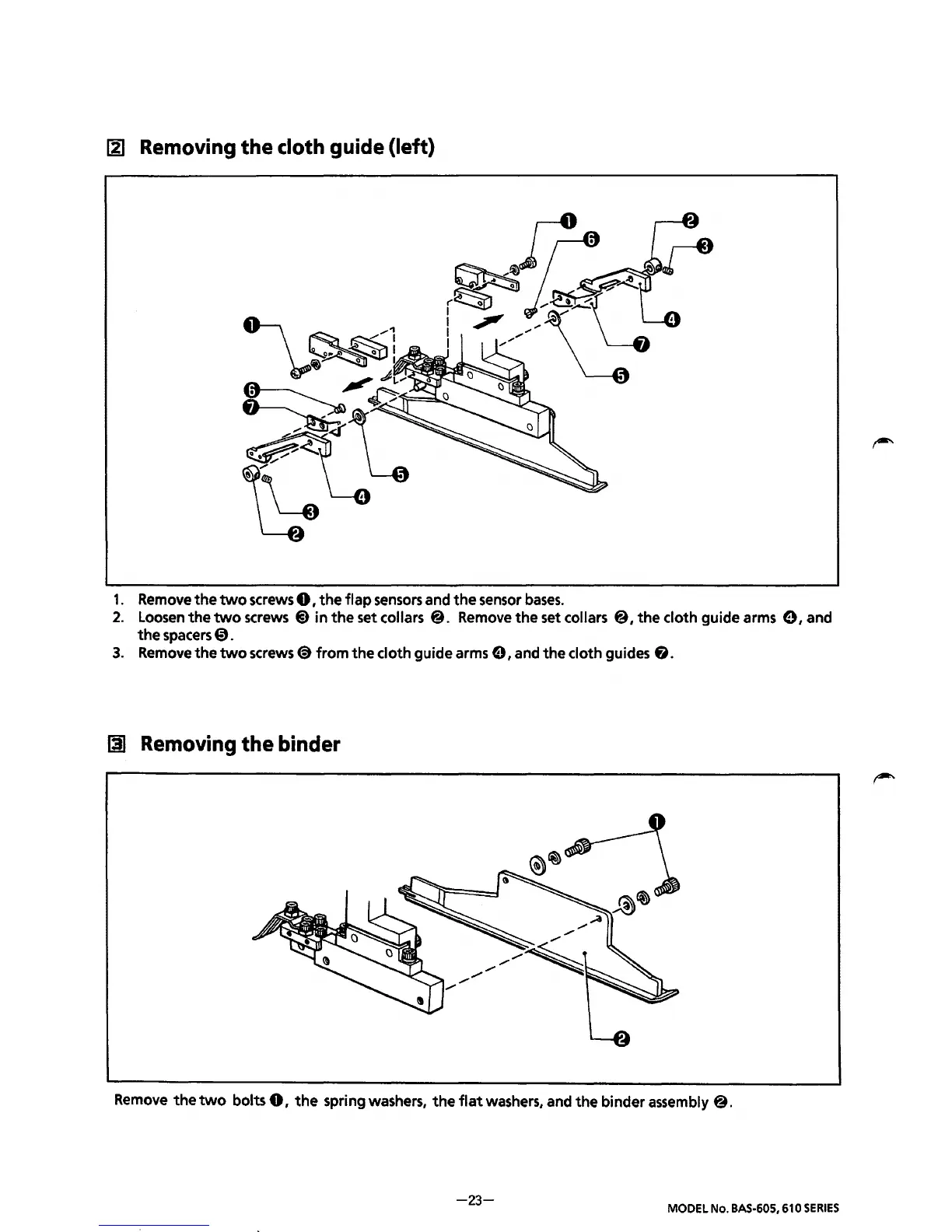

1:2] Removing the cloth guide (left}
1. Remove the two screws 0, the flap sensors and the sensor bases.
2. Loosen the two screws @) in the set collars @. Remove the set collars @,the cloth guide arms e, and
the spacers 0.
3. Remove the two screws <9 from the cloth guide arms e, and the cloth guides & .
[I Removing the binder
Remove the two bolts 0, the spring washers, the flat washers, and the binder assembly @.
-23-
