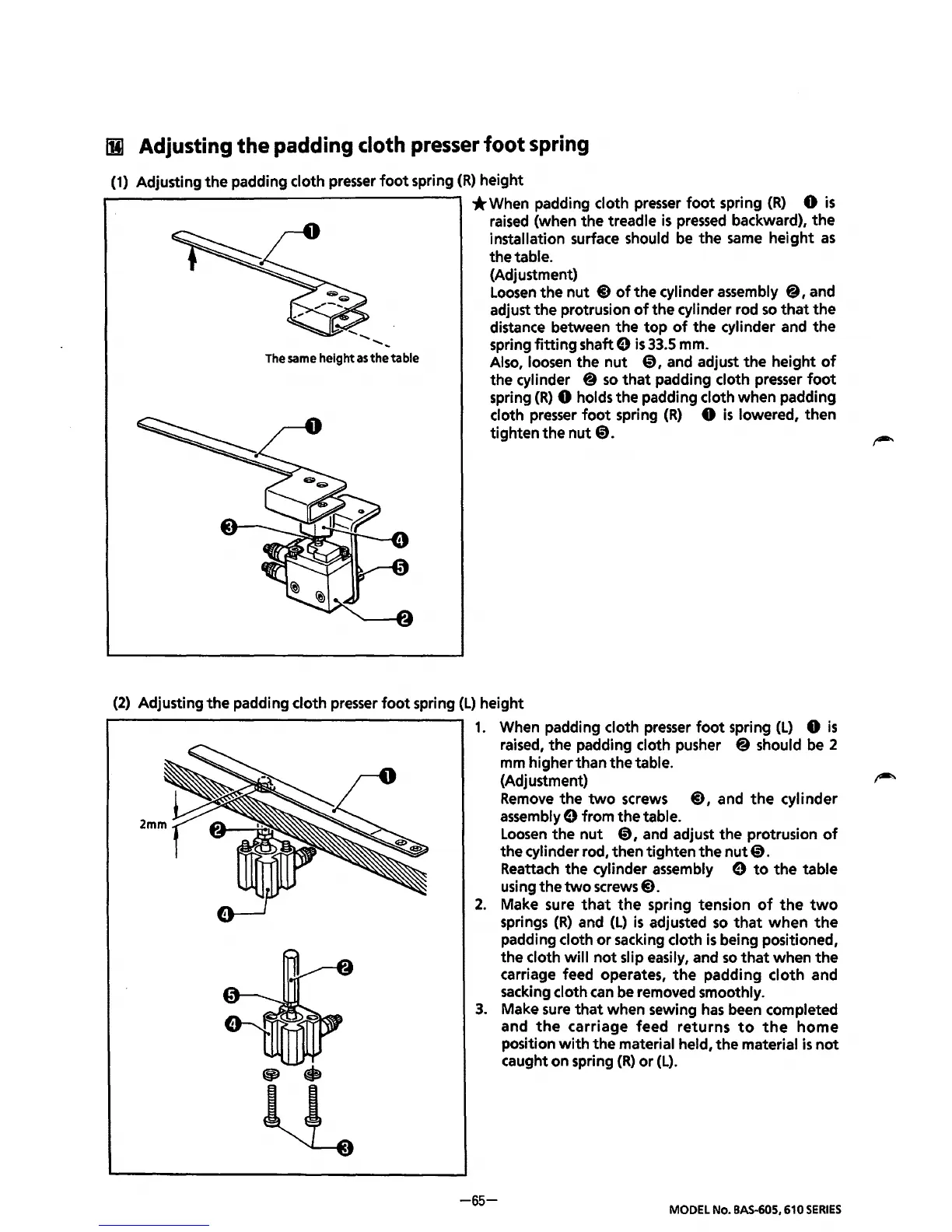

Ill Adjusting the padding
cloth
presser
foot
spring
(1)
Adjusting the padding cloth
presser
foot
spring
(R)
height
*When
padding cloth
presser
foot
spring
(R)
0
is
raised
(when the treadle
is
pressed
backward),
the
installation surface should
be
the
same
height
as
the table.
(Adjustment)
Loosen
the
nut
@)
ofthe
cylinder assembly
8,
and
adjust the protrusion
of
the cylinder rod
so
that
the
distance between the
top
of
the cylinder and the
spring
fittingshaft0
is33.5 mm.
The
same
height
as
the table Also, loosen the
nut
@,
and adjust the height
of
the cylinder 8
so
that
padding cloth
presser
foot
spring
(R)
0 holds the padding cloth when padding
cloth
presser
foot
spring
(R)
0
is
lowered, then
tighten the
nut
0.
(2)
Adjusting the padding cloth
presser
foot
spring
(L)
height
1.
When padding cloth
presser
foot
spring
(L)
0
is
raised, the padding cloth pusher 8 should
be
2
mm
higher than the table.
(Adjustment)
Remove
the
two
screws
@),
and
the
cylinder
assembly
e from the table.
Loosen
the
nut
0,
and
adjust the protrusion
of
the cylinder rod, then tighten the
nut@.
Reattach the cylinder
assembly
0
to
the table
using the
two
screws@).
2.
Make sure
that
the
spring tension
of
the
two
springs
(R)
and
(L)
is
adjusted
so
that
when
the
padding cloth
or
sacking cloth
is
being positioned,
the cloth
will
not
slip easily, and
so
that
when
the
carriage feed operates,
the
padding cloth and
sacking cloth
can
be
removed smoothly.
3.
Make
sure
that
when sewing
has
been completed
and
the
carriage feed returns
to
the
home
position
with
the material held, the material
is
not
caught on spring
(R)
or
(L).
