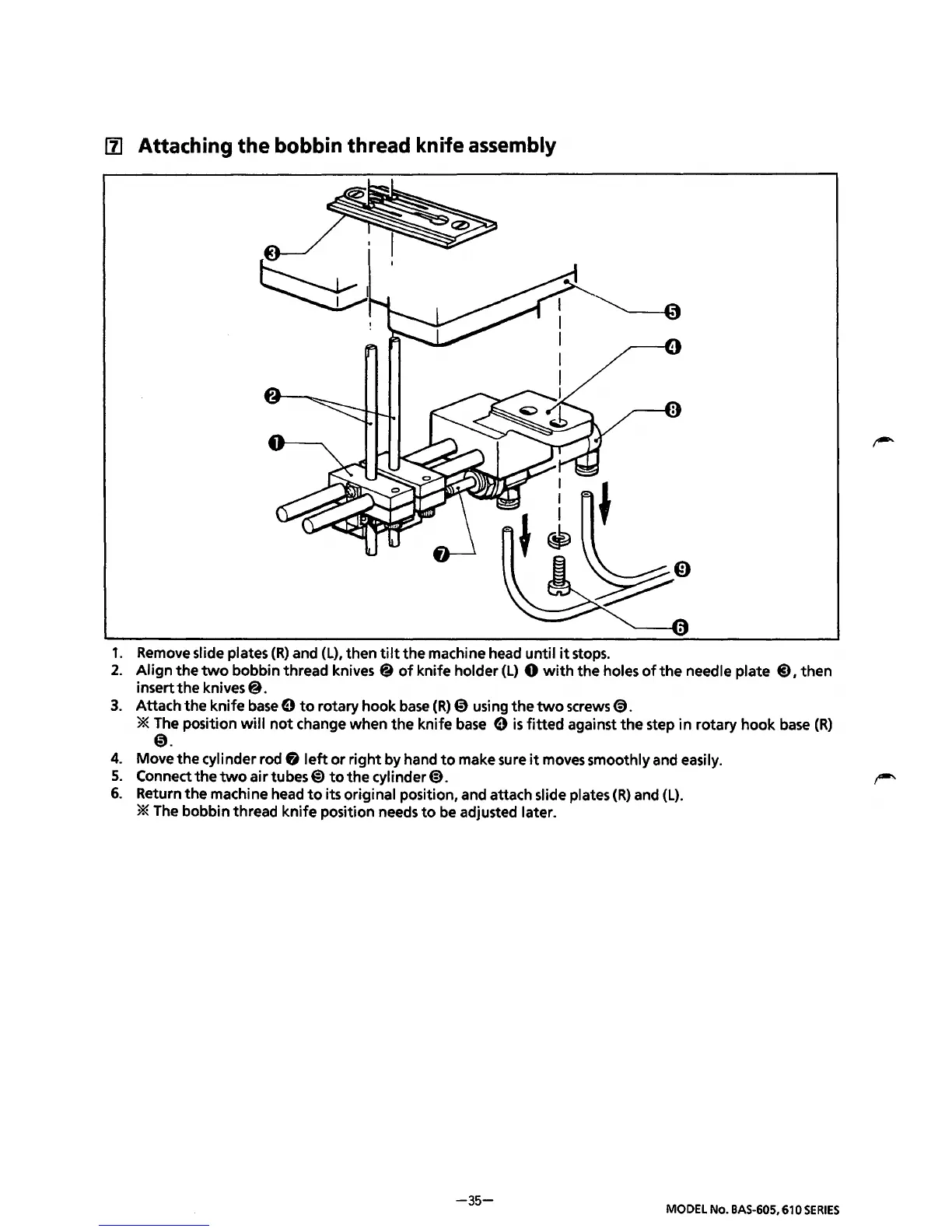

[1] Attaching the bobbin thread knife assembly
1. Remove slide plates (R) and (L), then tilt the machine head until it stops.
2. Align the two bobbin thread knives @ of knife holder (L) 0 with the holes of the needle plate 8, then
insert
the knives@.
3. Attach the knife base 9 to rotary hook base (R) 0 using the two screws@.
*The position will not change when the knife base 9 is fitted against the step in rotary hook base (R)
0.
4. Move the cylinder rod 8 left or right by hand to make sure it moves smoothly and easily.
5. Connect the two air tubes@) to the cylinder@).
6. Return the machine head to its original position, and attach slide plates (R) and (L).
*The bobbin thread knife position needs to be adjusted later.
