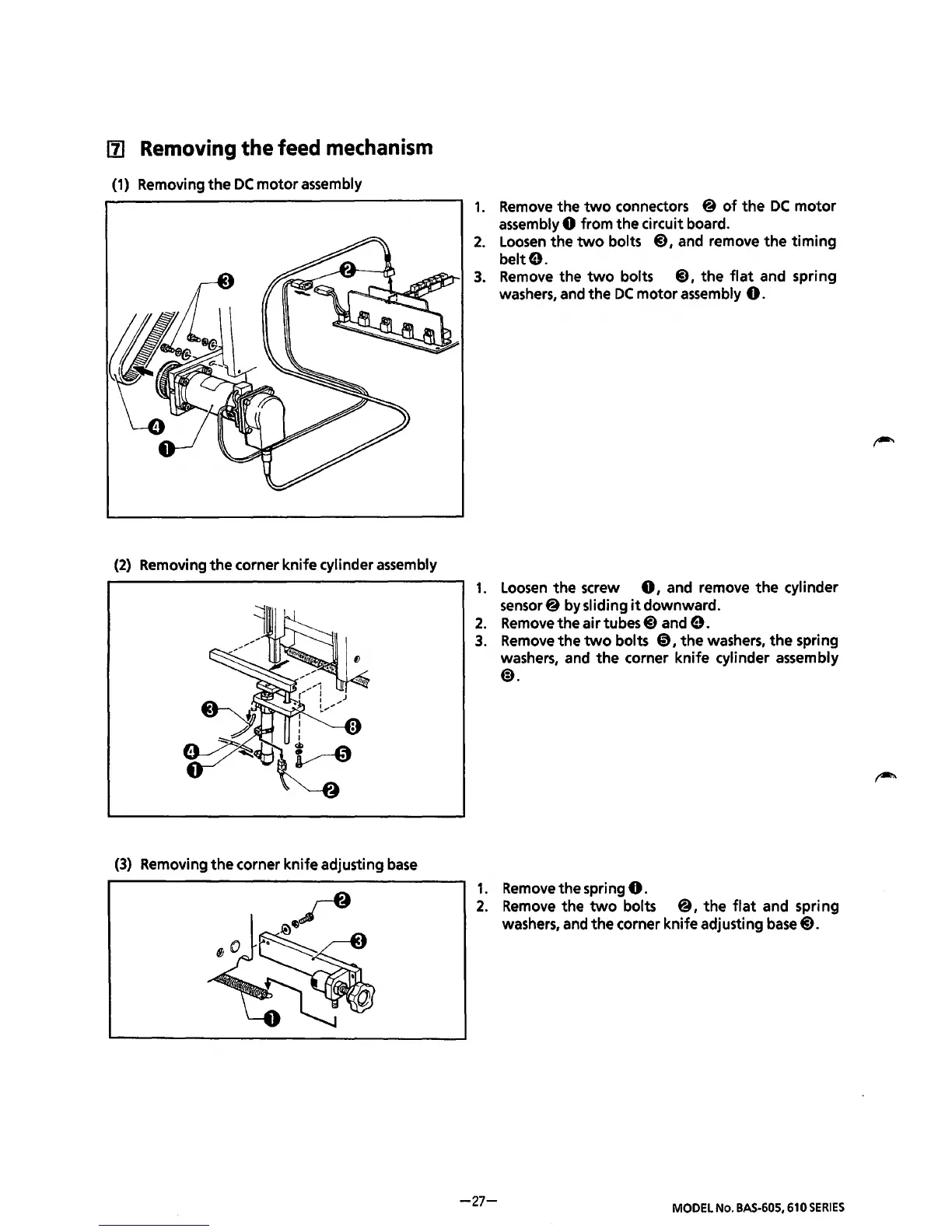

[1] Removing the feed mechanism
(1) Removing the DC motor assembly
(2) Removing the corner knife cylinder assembly
(3) Removing the corner knife adjusting base
1. Remove the two connectors @ of the DC motor
assembly 0 from the circuit board.
2. Loosen the two bolts @,and remove the timing
belt0.
3. Remove the two bolts @, the flat and spring
washers, and the DC motor assembly 0.
1. Loosen the screw 0, and remove the cylinder
sensor@
by sliding it downward.
2. Remove the air tubes@ and 0.
3. Remove the two bolts @, the washers, the spring
washers, and
the corner knife cylinder assembly
@).
1. Remove the spring 0.
2. Remove the two bolts @,the flat and spring
washers, and the corner knife adjusting
base @).
-27-
MODEL No. BAS-605, 610 SERIES
