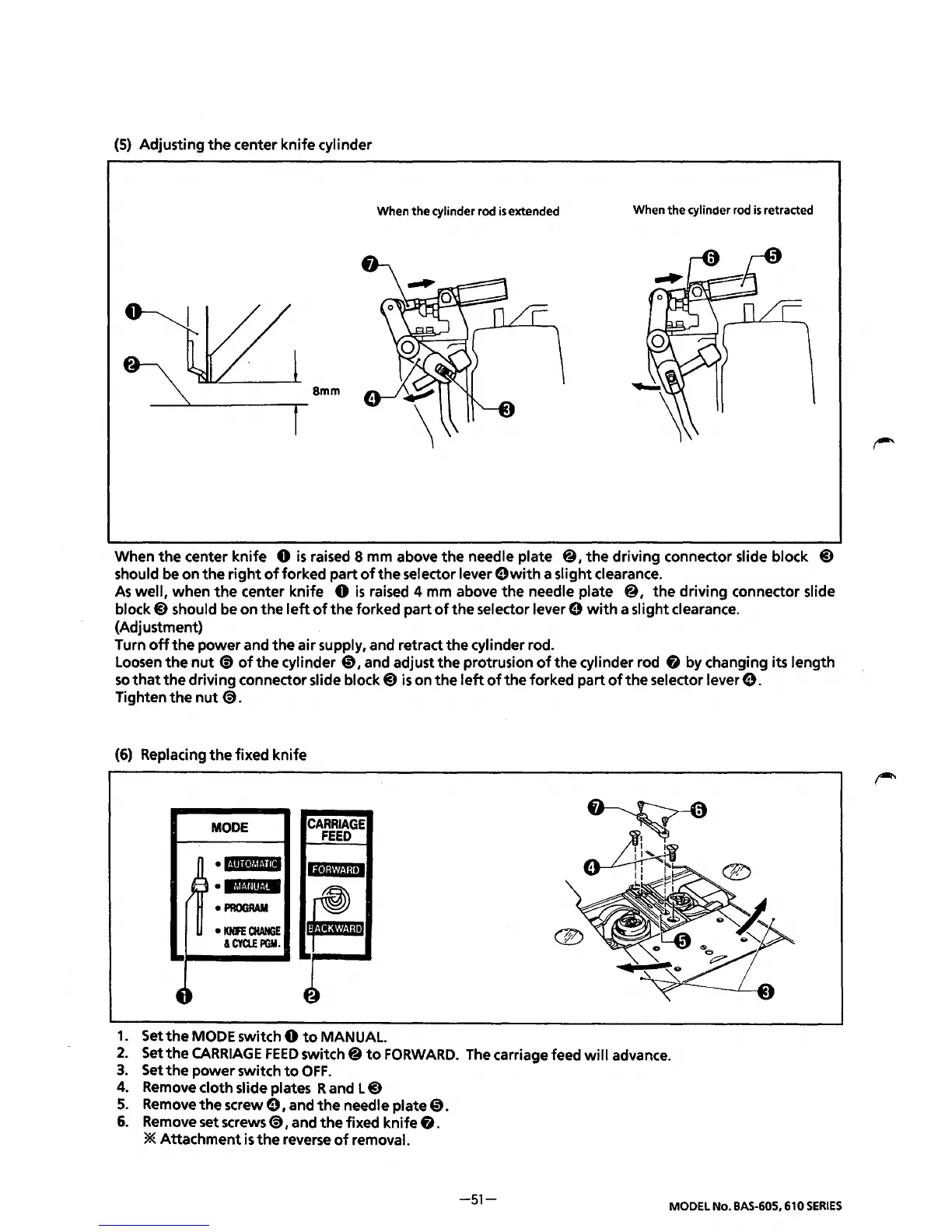

(5)
Adjusting
the
center knife cylinder
When the cylinder rod
is
extended
When the cylinder
rod
is
retracted
Smm
When
the
center knife 0
is
raised 8 mm above
the
needle plate
@,the
driving connector slide block
@)
should be on
the
right
of
forked part
of
the
selector lever
$with
a slight clearance.
As
well, when
the
center knife 0
is
raised 4 mm above
the
needle plate @,
the
driving connector slide
block@) should be on the
left
of
the
forked
partofthe
selector
Ievere
with
a slight clearance.
(Adjustment)
Turn
off
the
power and
the
air supply, and retract the cylinder rod.
Loosen
the
nut
~
of
the
cylinder
0,
and adjust
the
protrusion
of
the
cylinder rod
fi
by changing its length
so
that
the
driving connector slide block@)
is
on
the
left
of
the
forked part
of
the
selector lever
e.
Tighten
the
nut
~.
(6)
Replacing
the
fixed knife
MODE
D •
n•ll•l!l·na
)
~
• MMtlihiM
•
PROGRAM
•
KNJE
CHANGE
&CYa..EPGM.
-~
CARRIAGE
FEED
liel&yJ.Jijel
1.
Set
the
MODE switch 0
to
MANUAL
2.
Set
the
CARRIAGE
FEED
switch@
to
FORWARD.
The carriage feed
will
advance.
3.
Set
the
power switch
to
OFF.
4.
Remove cloth slide plates Rand
L@)
5.
Remove
the
screw e I and
the
needle plate
0.
6.
Remove set
screws~,
and
the
fixed knife
fi.
* Attachment
is
the
reverse
of
removal.
-51-
