Brother BAS-605 Series User Manual

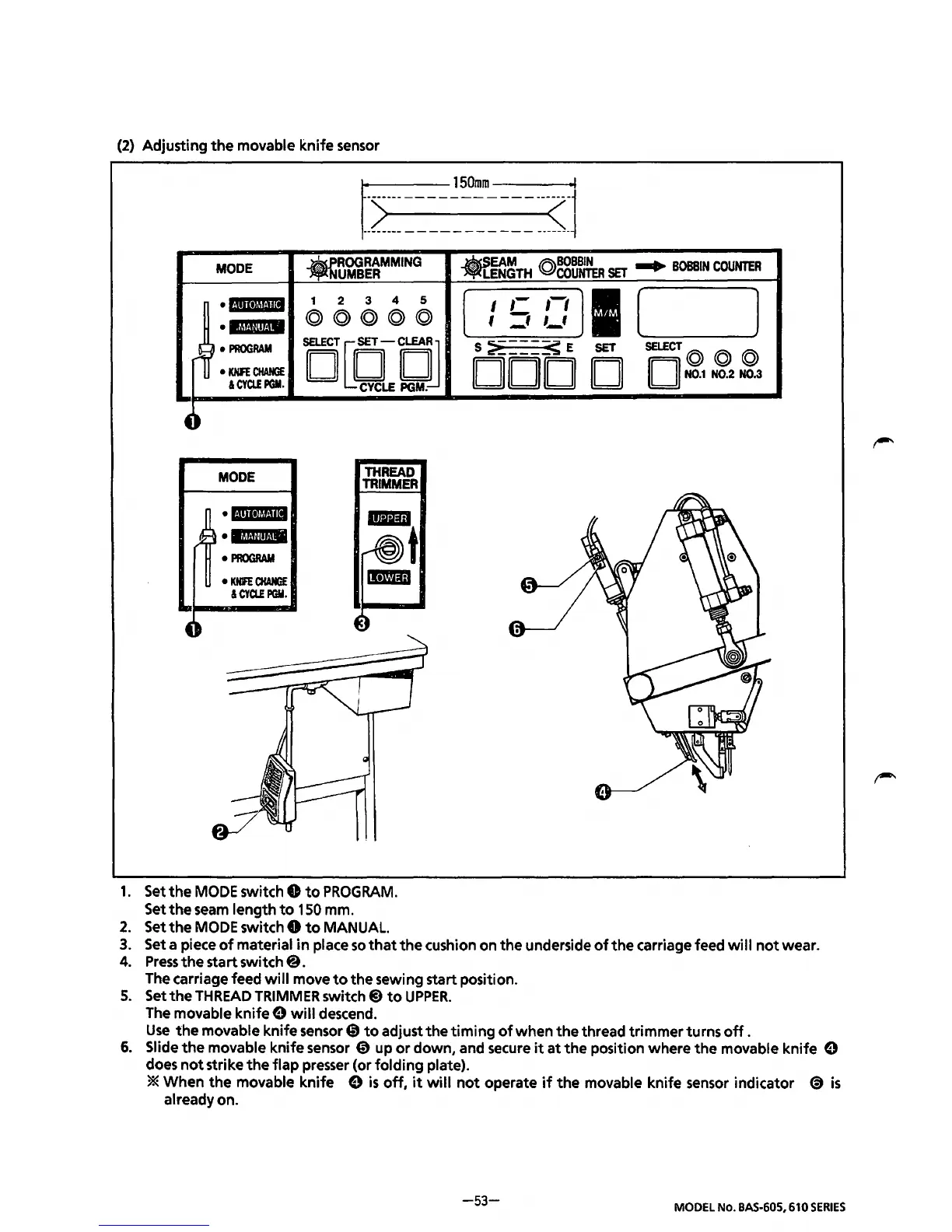

(2) Adjusting the movable knife sensor
MODE
• PROGRAM
• KNRCHANGE
&CYQ.EPGM.
MODE
• i·iille'f,f!ili
el@hifiitiiM
• PROGRAM
• KHfE CHANGE
& CYa.E PGII.
~ROO RAMMING
)lflitNUMBER
1 2 3 4 5
@@@@@
DCOJOJ
THREAD
TRIMMER
1. Set the MODE switch 0 to PROGRAM.
Set the seam length to 150 mm.
2. Set the MODE switch 0 to MANUAL.
I ,- If
I :J l_f
S :?-===s E SET
DODO
[ l
SELECT
0
@@@
N0.1 N0.2 N0.3
3. Set a piece of material in place so that the cushion on the underside of the carriage feed will not wear.
4. Press the start switch@.
The carriage feed will move to the sewing start position.
5. Set the THREAD TRIMMER switch 8 to UPPER.
The movable knife 9 will descend.
Use the movable knife sensor@ to adjustthe timing of when the thread trimmer turns off.
6. Slide the movable knife sensor @ up or down, and secure it at the position where the movable knife e
does not strike the flap presser (or folding plate).
*When the movable knife e is off, it will not operate if the movable knife sensor indicator @ is
already on.
-53-
MODEL No. BAS-605, 610 SERIES
