(2)

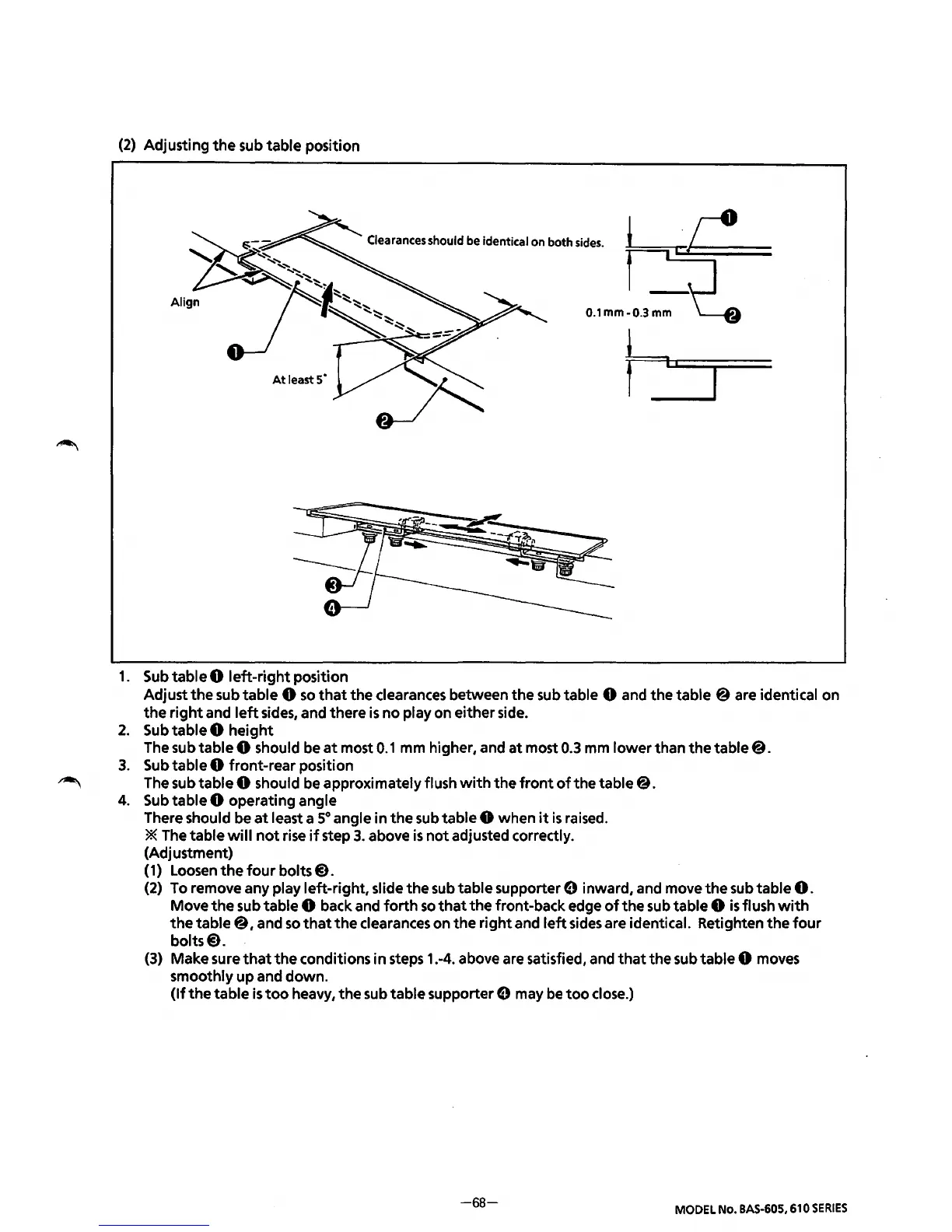

Adjusting
the
sub
table
position
Clearances should be identical on both sides.
Align
0.1mm-0.3mm
Atleasts'
~·
1.
Sub
table
0
left-right
position
Adjust
the
sub
table
0
so
that
the
clearances between
the
sub table 0 and
the
table @ are identical on
the
right
and
left
sides, and there
is
no
play on
either
side.
2.
Sub
table
0
height
ThesubtableO
should
beat
most
0.1
mm higher, and
at
most0.3 mm
lower
than
the
table@.
3.
Sub table 0 front-rear position
The sub table 0 should be approximately flush
with
the
front
of
the
table
8.
4.
Sub table 0 operating angle
There should be
at
least a
5°
angle
in
the
sub
table
0 when
it
is
raised.
*The
table
will
not
rise
if
step
3.
above
is
not
adjusted correctly.
(Adjustment)
(
1)
Loosen
the
four
bolts
8.
(2) To remove any play
left-right,
slide
the
sub
table
supporter e inward, and move
the
sub table
0.
Move
the
sub table 0 back and
forth
so
that
the
front-back edge
of
the
sub table 0
is
flush
with
the
table
@,
and
so
that
the
clearances on
the
right
and
left
sides
are identical. Retighten
the
four
bolts@.
(3) Make sure
that
the
conditions
in
steps 1.-4. above are satisfied, and
that
the
sub table 0 moves
smoothly
up
and down.
(If
the
table
is
too
heavy,
the
sub table supporter 0 may
be
too
close.)
-68-
MODEL
No.
BAS-605,
610
SERIES
